3. Display installation
3.4 Conn ecting the sign al cables
CAUTION: Only connect one of the two video links. Connecting both inputs simultane-
ously will result in driver errors.
To connect the signal cables to the d isplay:
To get access to the connectors, remove the connector compartment cover. See "Removing the connector
compartment cover", page 10.
You may connect the display to a display controller by using the DVI or the DP connection. The input
selection of the device is automatically done. By default, the DisplayPort input has priority over the DVI
input. This can be changed in the OSD menu.
1. Connect the DVI or DP of the display controller to the DVI or DP connector of the display.

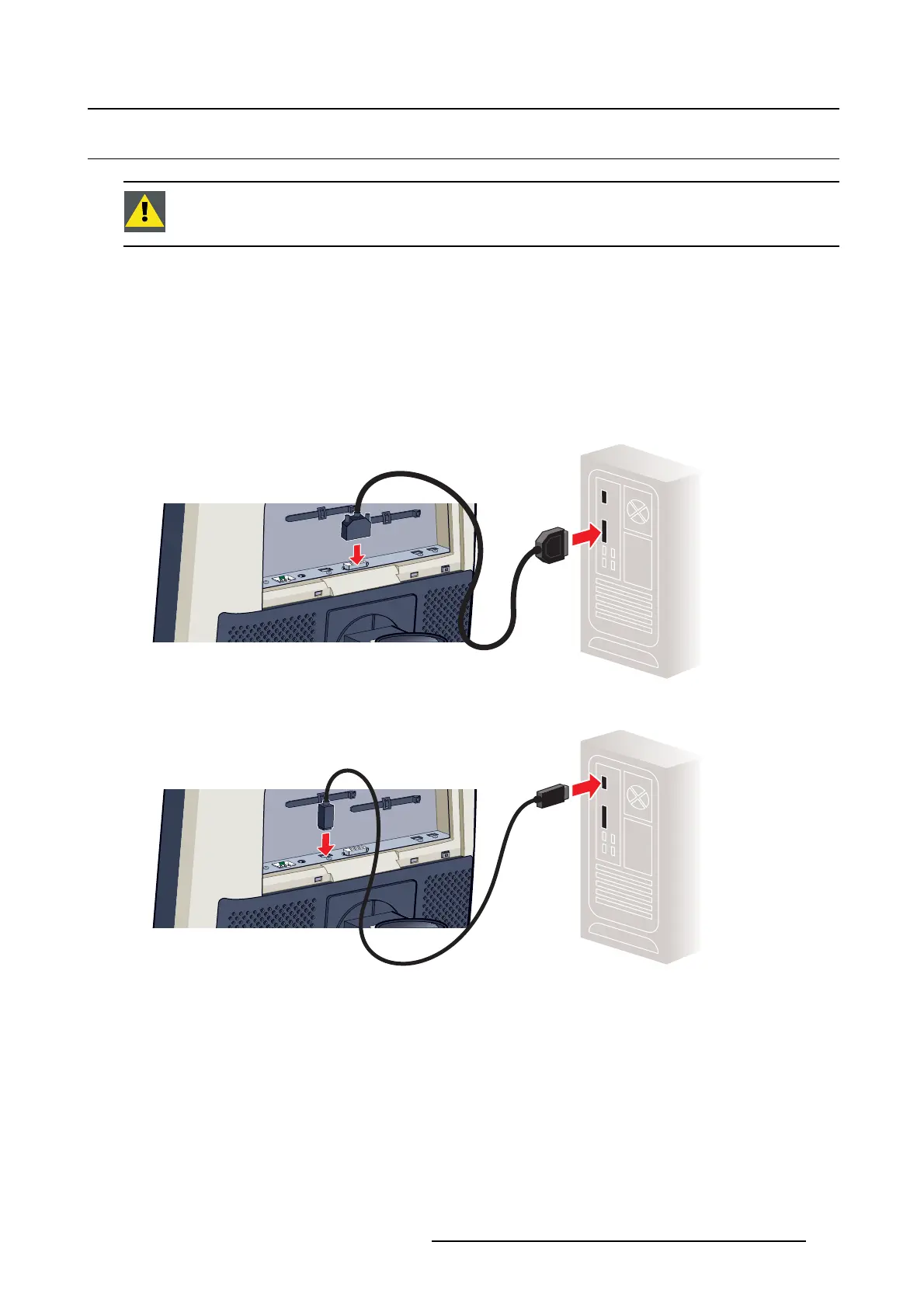

Image 3-1
Image 3-2
K5902114 NIO 3MP LED DISPLAY 03/10/2016 11
