3. Display installation

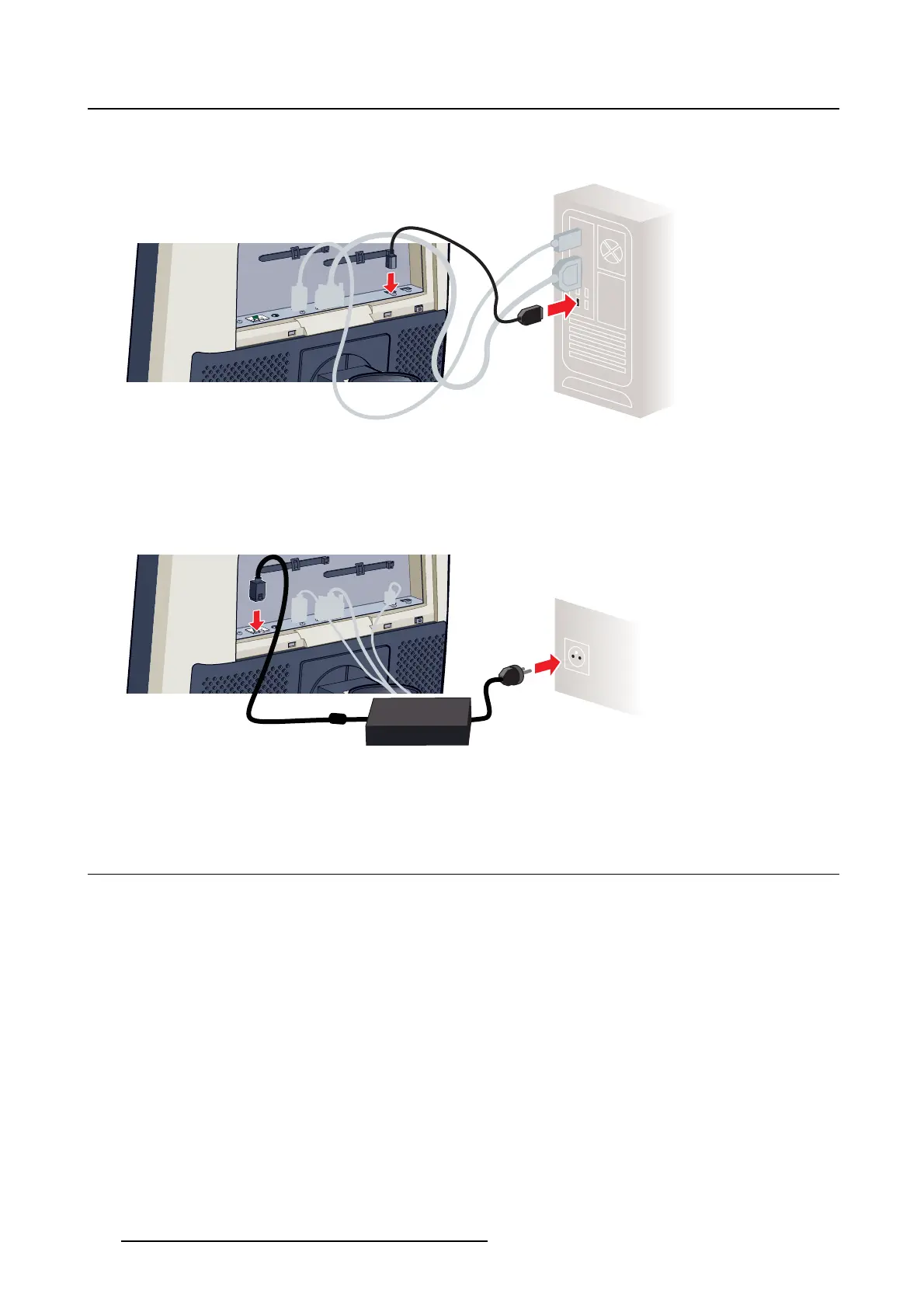

2. If you want to make use of the display’s USB upstream connector, connect a PC USB downstream
connector to the display’s USB upstream connector.
Image 3-3
3. If you have chosen to use the display’s USB downstream connector, connect a USB device to the
downstream connector.
4. Connect the supplied external DC power supply to the +24 Vdc power input of the display.
5. Plug the mains connector of the external DC power supply to a grounded power outlet by means of
one of the supplied power cables.
Image 3-4
3.5 Routing the cables & Reattach the connec tor compartment
cover
To route the cables
1. Route all connected cables through th
e cable routing channel in the stand of your display.
12
K5902114 NIO 3MP LED DISPLAY 03/10/2016
