R5900049 /07 ClickShare CSE-800 39

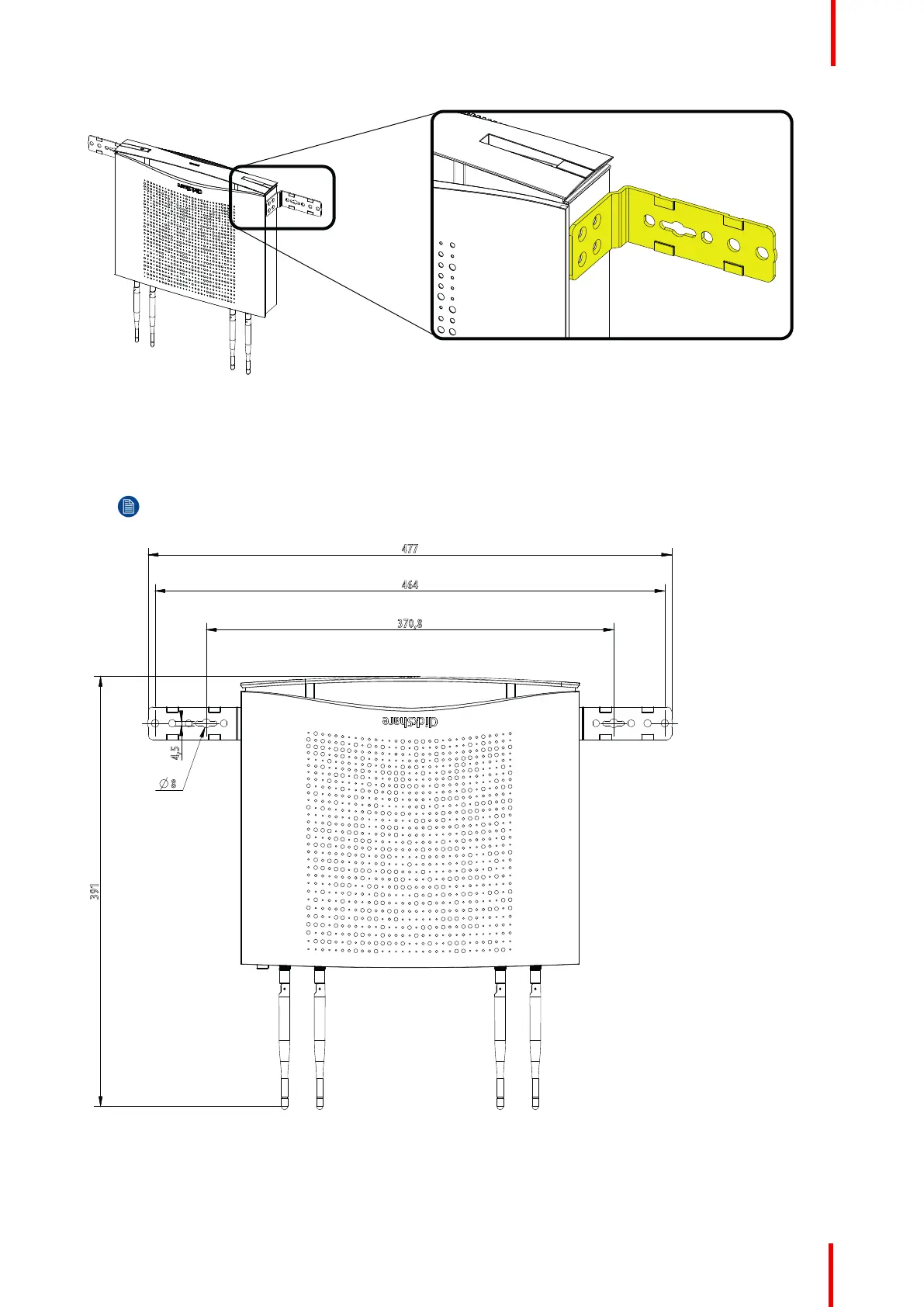

Image 4-1: Mount brackets
2. Drill 2 holes in the wall, at a distance of 370.8 mm (14.6 inch) or 464 mm (18.3 inch) from each other on a
horizontal line.
3. Insert a plug in each hole (if needed, depends on the wall type).
Note: Mounting screws and plugs are not included in the CSE-800 box . The type of screws and plugs
depend on the type of wall (stone, wood, plasterboard, ...) you are mounting the Base Unit to.
Image 4-2: Mounting hole dimensions
4. Install the Base Unit with the brackets on the wall so that the fixation holes matches the holes in the wall. Drive
in 2 screws.
CSE-800 Installation
