Barco UDX Series Installation Manual

R5906113 /09 UDX 35
3.4 Projector orientations
Supported projector orientations
The projector can be installed on a table or upside down on the ceiling and this in a front projection or rear
projection configuration. Depending on the physical configuration of the projector the projected image has to
be rotated and/or mirrored as well. The projected image can be adapted via the menu Installation >
Orientation. Possible orientations are:
1. Front / Table (F/T)
2. Front / Ceiling (F/C)
3. Rear / Table (R/T)
4. Rear / Ceiling (R/C)

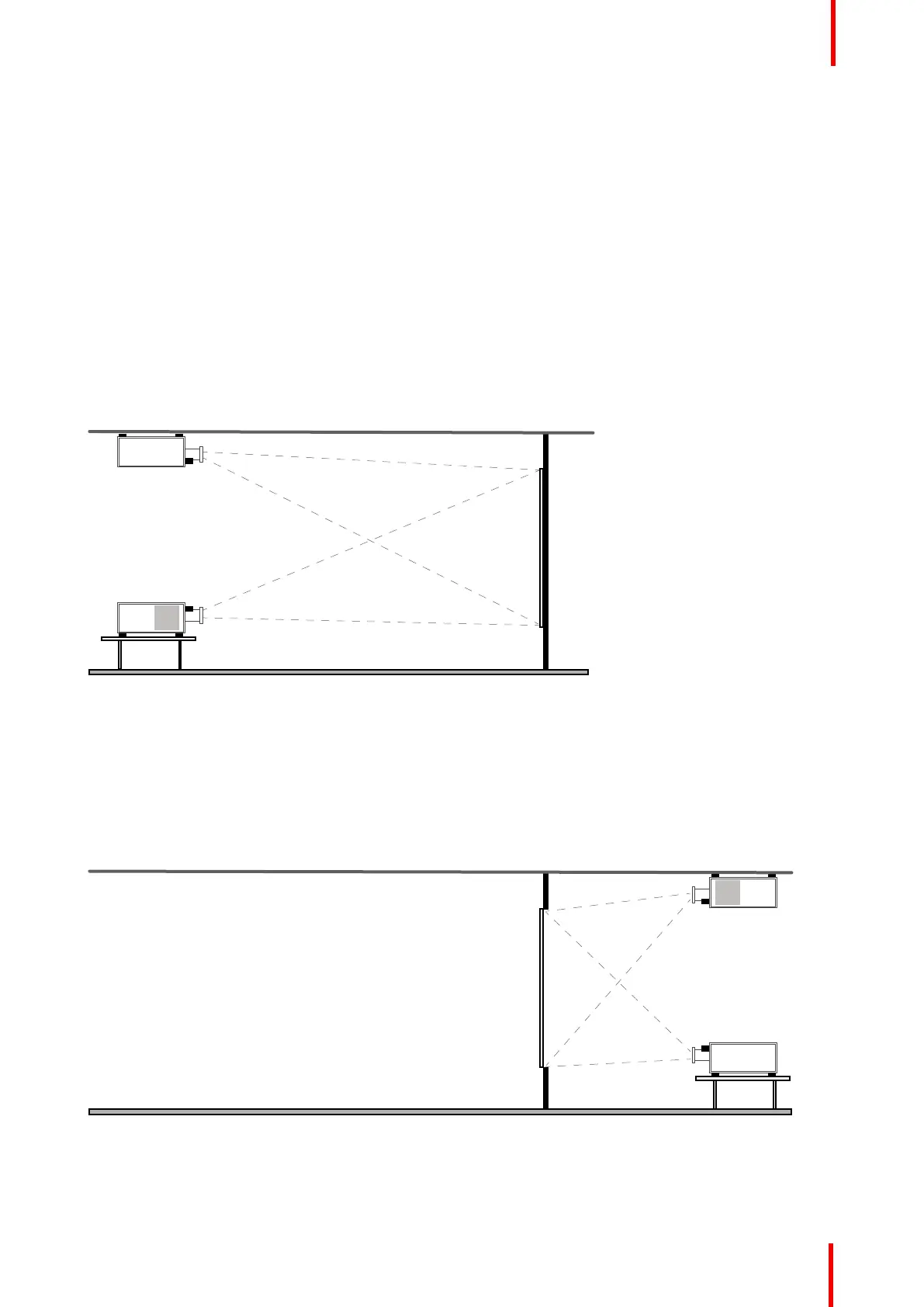

Front projection
The projector is installed, either in a table mount or ceiling mount configuration, at the same side of the screen
as the audience.
SC
F/C
F/T
TH
Image 3-4
FC
Front/Ceiling projection
FT
Front/Table projection
SC
Screen
TH
Theater (Audience area)
Rear projection
The projector is installed, either in a table mount or ceiling mount configuration, at the other side of the screen
opposite the audience.
SC
R/C
R/T
TH BA
Image 3-5
RC
Rear/Ceiling projection
RT
Rear /Table projection
SC
Screen
BA
Backstage area
TH
Theater (Audience area)
