4.8 Alignment of a table mounted projector
How to align
1. Place the projector in the desired location. Take into account the zoom range of the used lens and the size of
the screen.
2. Project one of the internal hatch patterns on the screen.
3. Turn the adjustable feet in or out until the projected hatch pattern has a perfect rectangle shape and is leveled.

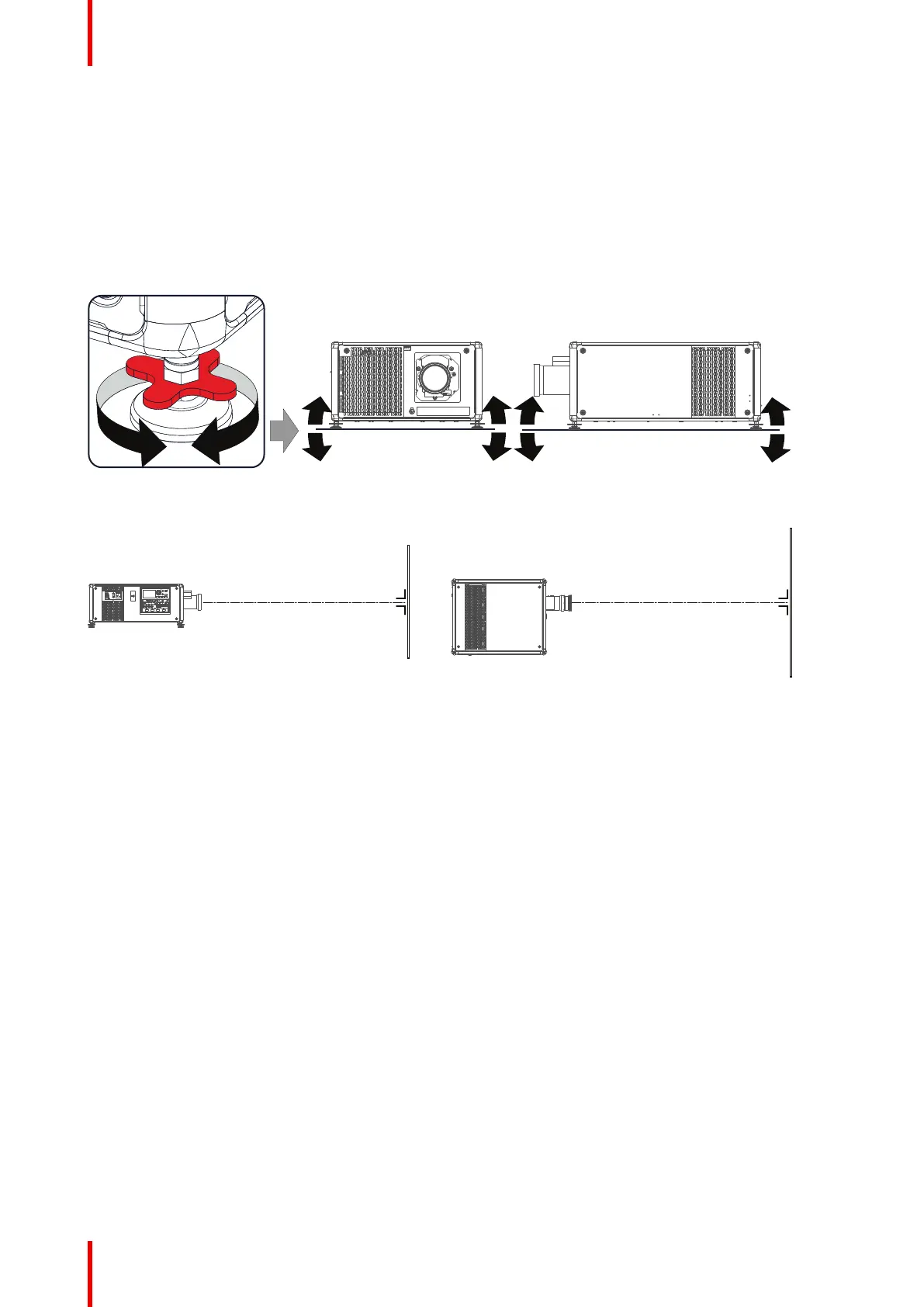

Image 4-13: Level alignment
When this is achieved, the projector is set horizontal and vertical at right angles to the screen.
Image 4-14: Angle adjustment
