8.2 Removal of the left cover
Required tools
7 mm flat screw driver
How to remove
1. Loosen the four captive screws (reference 1) of the light processor cover. Use a 7 mm flat screwdriver.
2. Remove the cover from the projector.
1

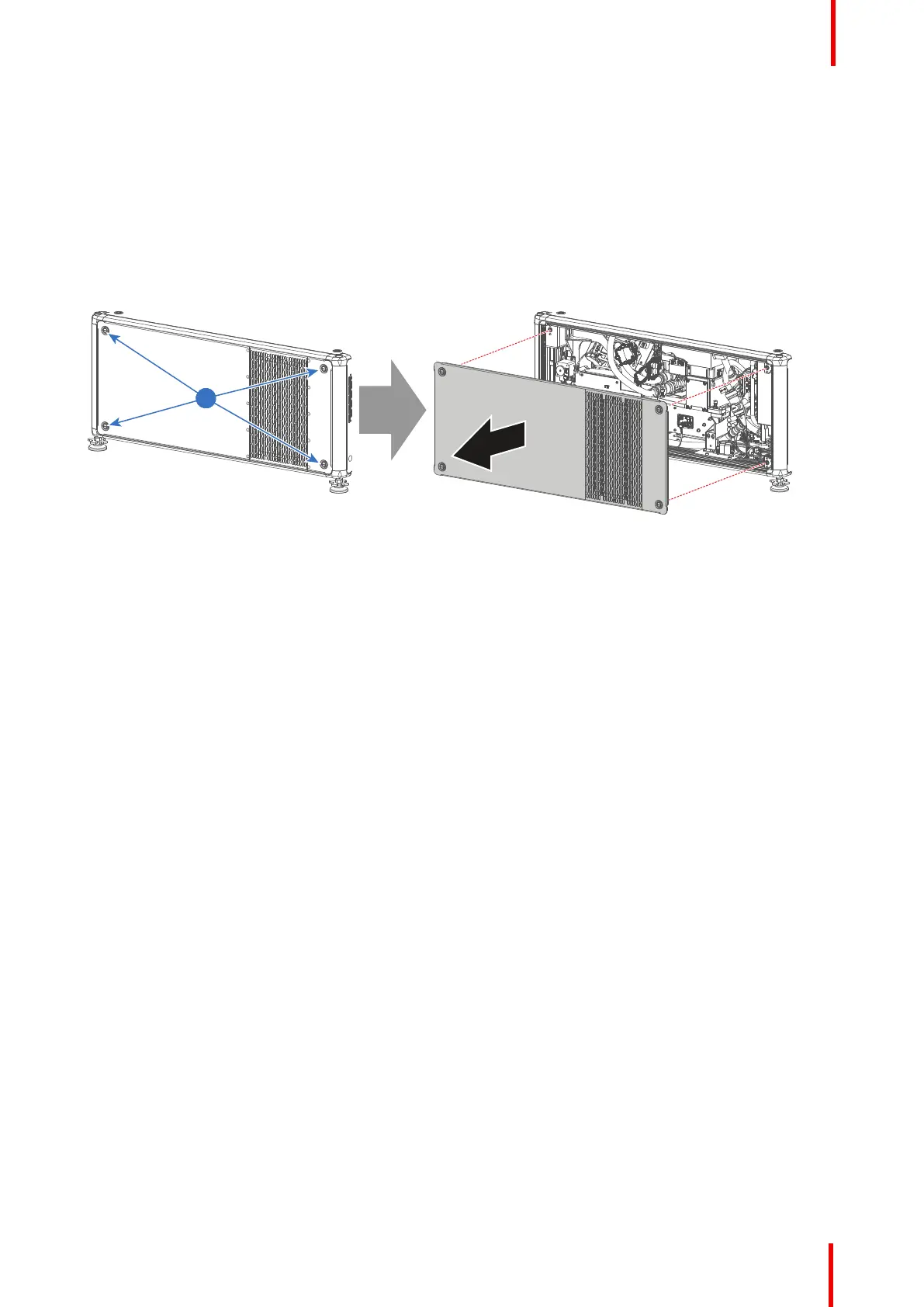

Image 8-2: Removal of the left cover (light processor side)
