Barco UDX Series Installation Manual

R5906113 /09 UDX76
7.3 Use case 3: Neutrik OpticalCon Quad + SFP+
transceiver + internal fiber

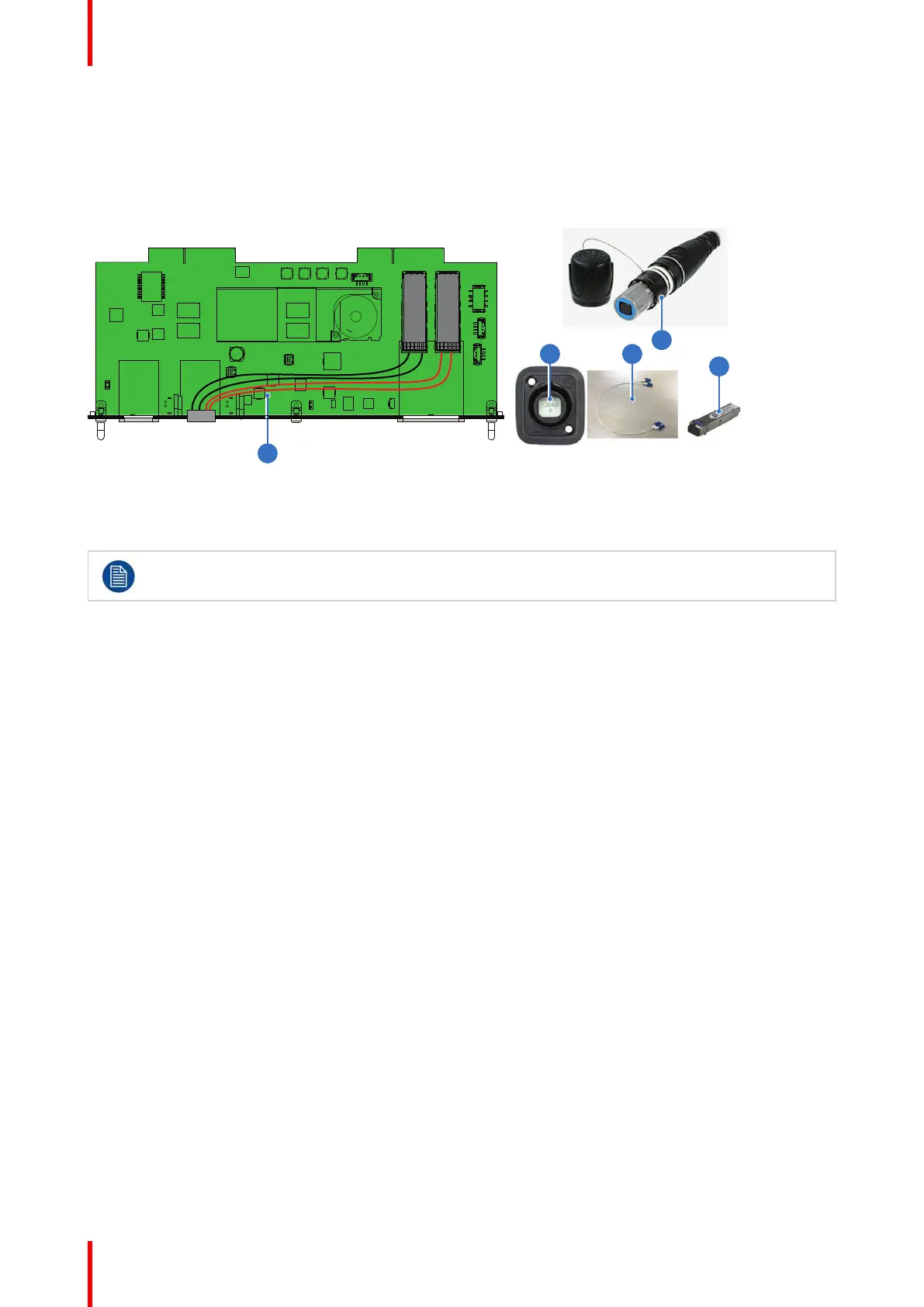

Neutrik OpticalCon Quad + SFP+ transceiver + internal fiber
1
5
32
4
Image 7-3
1
SFP input board
2
Neutrik OpitcalCon Quad
3
Internal fiber cable
4
SFP+ fiber transceiver
5
Advanced quad cable
Barco delivers only the SFP input and SFP+ fiber transceivers. The customer has to buy the SFP+
transceiver and the optional breakout adapter or the fiber integrated cable.
How to configure the SFP input
1. Remove one plate covering the access to a Neutrik connector location.
2. Mount the Neutrik OpticalCon Quad connector.
3. Remove the plate covering the access to the SFP cage and insert the SFP+ transceivers.
4. Re-install the cover plate.
5. Mount the optical internal cables between the Neutrik connector and the SFP+ transceivers.
6. Install the SFP input in its slot of the Input & Communication module. See procedure “Installation of an input
board”, page 56.
Pulse SFP input use cases
