4.11 Removal of an input board
WARNING: The procedures below may only be performed by Barco trained and qualified
technicians.
CAUTION: Always wear a wrist band which is connected to the ground while handling the
electrostatic discharge (ESD) sensitive parts.
The procedure below is applicable to all the input modules of the Input & Communication Unit of the
projector.
Required tools
Phillips screwdriver PH1
How to remove
1. Switch off the projector and unplug the power cord of the projector.
2. Release the 3 captive screws of the input module (4).

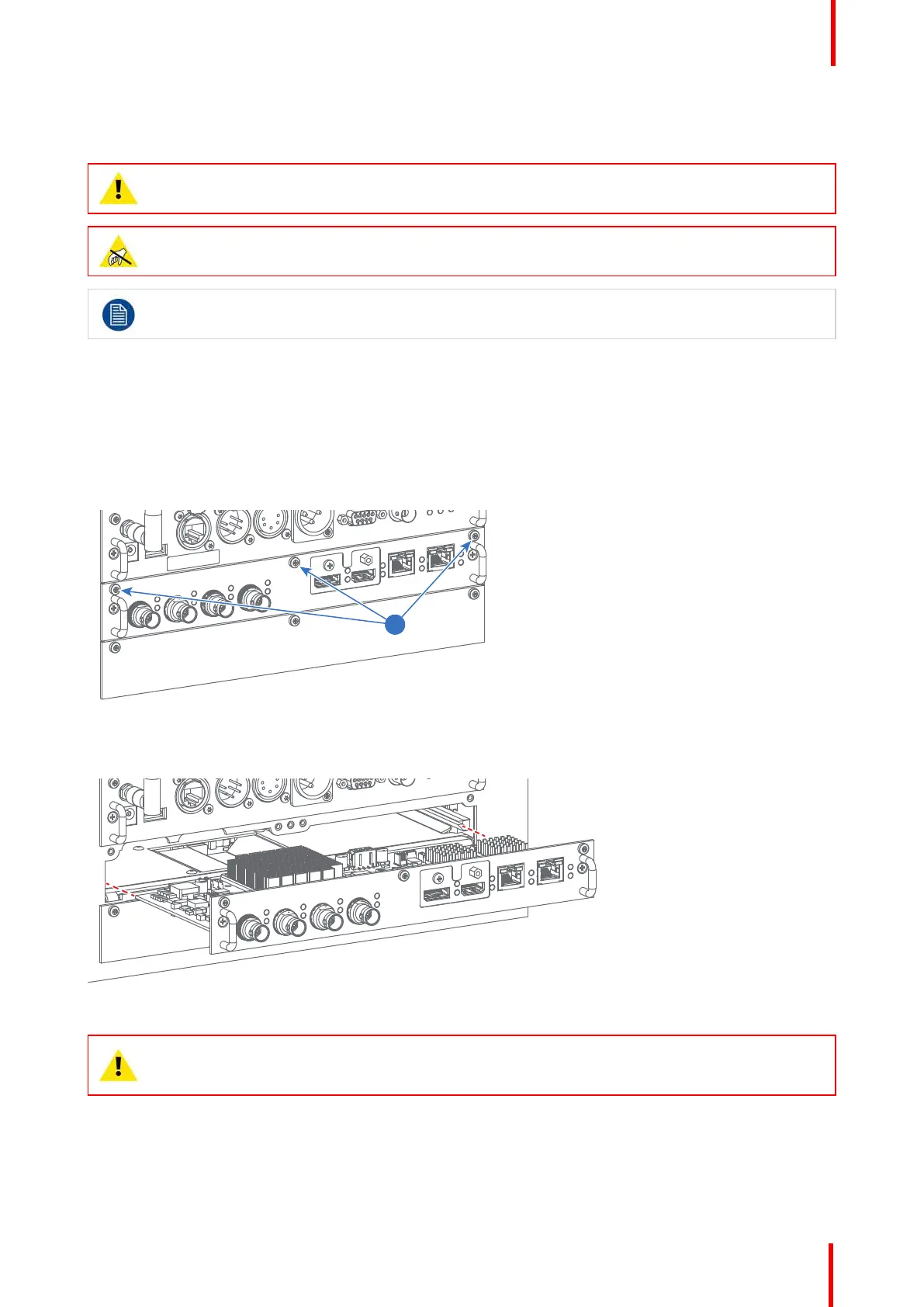

Image 4-20
3. Pull out the input module of the Input & Communication module using the handles.
Image 4-21
CAUTION: Ensure that unused input slots of the Input & Communication Unit are always covered
with a dummy front plate. After removing one of the input modules, immediately replace with an
other one or install a dummy front plate on the unused input slot.
