R59061
13
/09
UDX
84
8.5
Mounting
the
front
cover
Required
tools
7
mm
flat
screw
driver
How
to
mount
1.
Place
the
front
cover
on
its
place,
with
the
filter
facing
the
projector
.
1

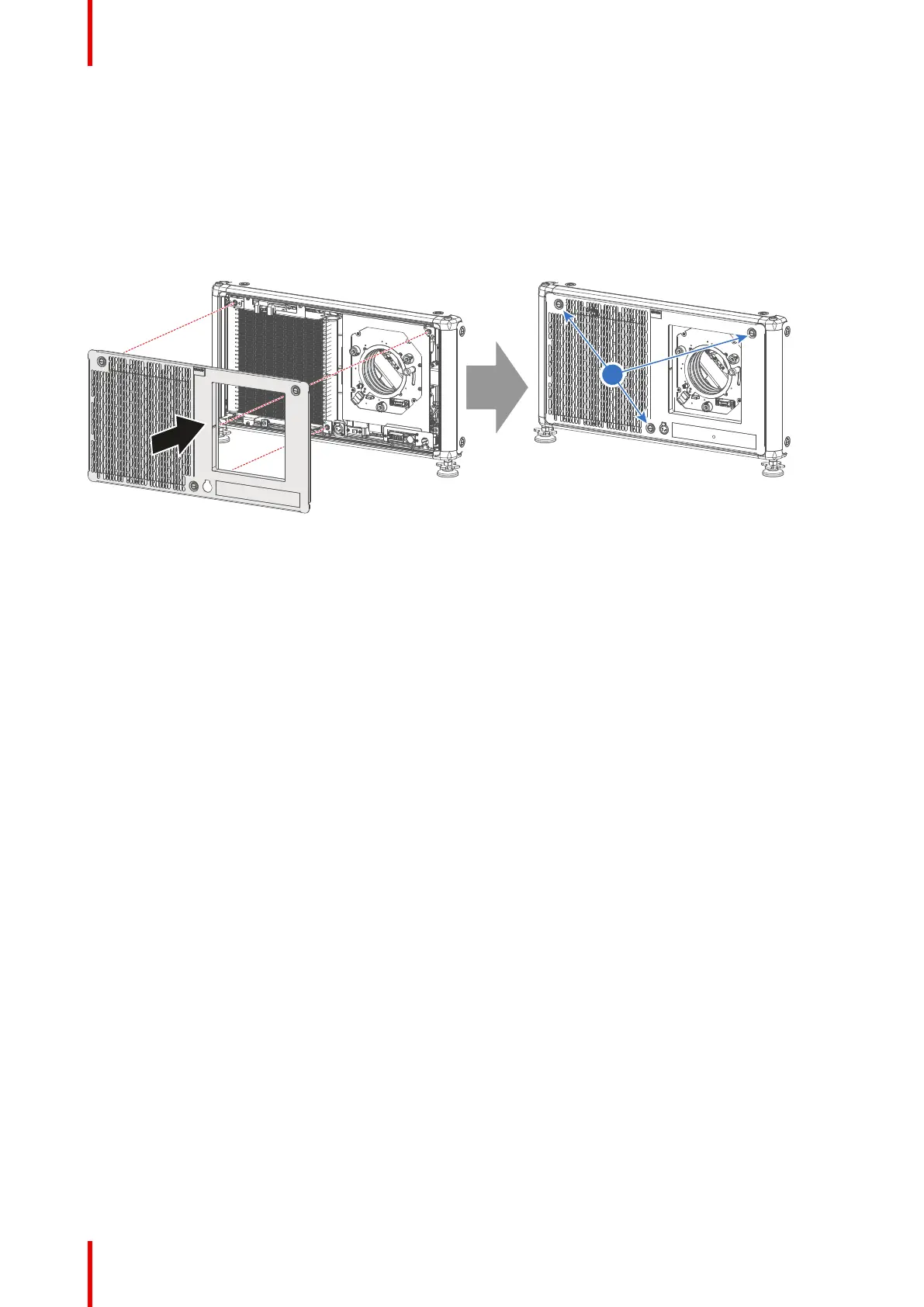

8-6:
Mount
front
cover
2.
Fasten
the
three
captive
screws
(reference
1).
3.
Mount
the
lens
again.
See
“
Lens
installation
”
,
page
47.
Projector
covers
83
85
