107R5906112 /15 UDX

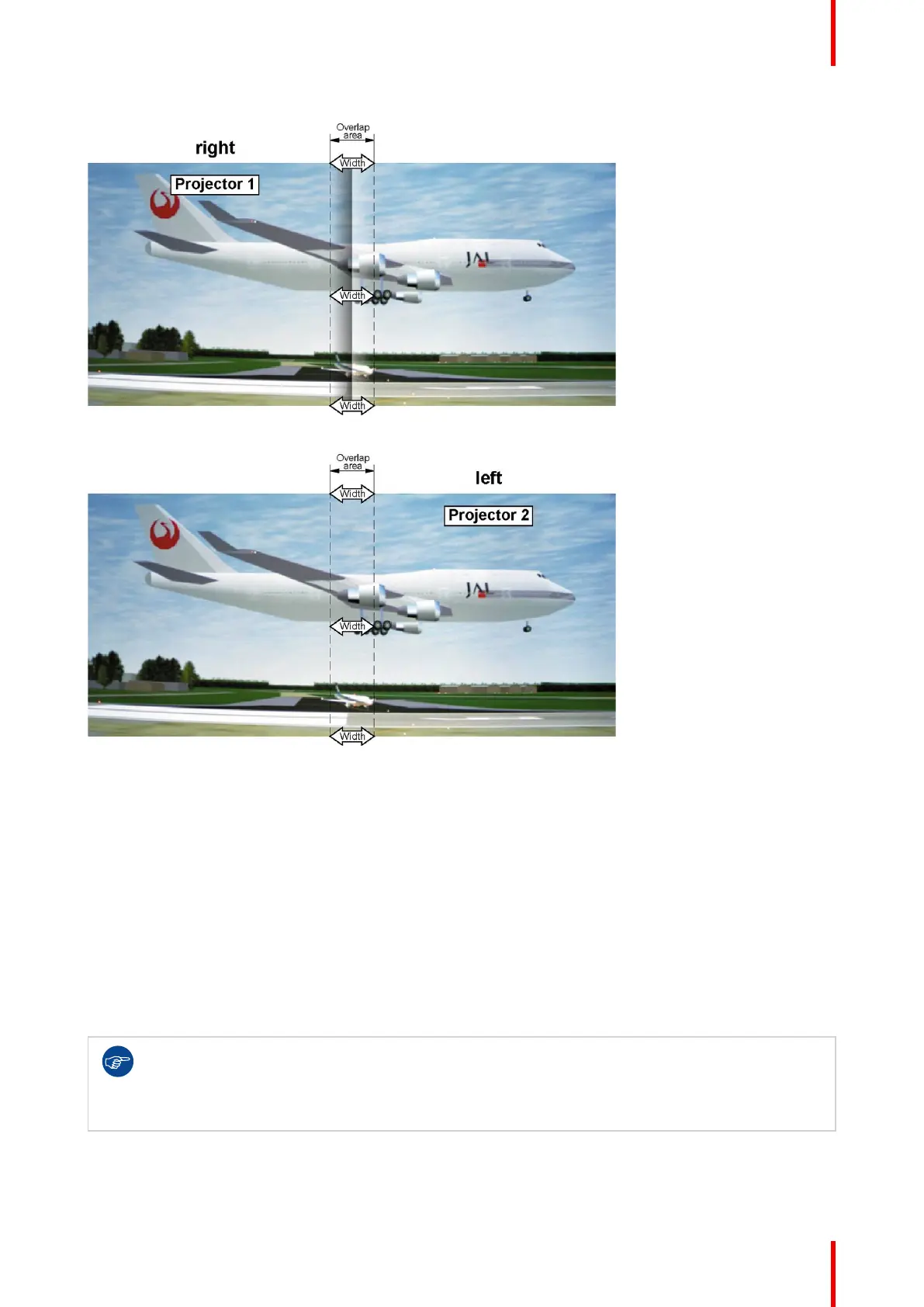

Image 8–68 Set up for projector 1
Image 8–69 Set up for projector 2
8.12.3 Blend Files
About custom Blend Files
Next to setting your specific Blending configuration in the GUI, you can also upload or download a custom
Blend configuration file in png, jpg or tiff format to/from the projector. This is a timesaving option when multiple
projectors need an identical blending configuration.
To upload or download Blend configuration files you can use Projector Toolset or upload/download the Blend
configuration file in the format of an xml file. Alternatively, you can contact the “file endpoint” directly via the
curl program or some other tool that supports http upload.
For more information on uploading/downloading blend files using the Projector Toolset, refer to the Projector
Toolset user manual. For more information on uploading/downloading blend files using curl or other tools that
supports HTTP upload, refer to the Pulse API reference guide.
When uploading custom blend files onto multiple projectors, make sure that the resolution of the
blend file is supported by the projector you are uploading it to. A mismatch of projector resolution
and blend mask resolution will result in a sub-optimal image performance. Verify the supported
resolutions for the specific projector model via the Introspection tool [Introspection – image –
resolution – alpha]. For more info on the introspection tool, consult the Pulse API reference guide.
How to activate an uploaded Blend configuration file?
1. In the main menu, select Installation → Blend and Mask → Blend Files.
GUI – Installation
