8.1 Configuring the lens, optical zoom-focus
What can be done?
If a motorized lens has been mounted onto the projector, you can fine-tune the projected image.
Zoom - Focus
1. In the main menu, select Installation → Lens → Zoom focus.

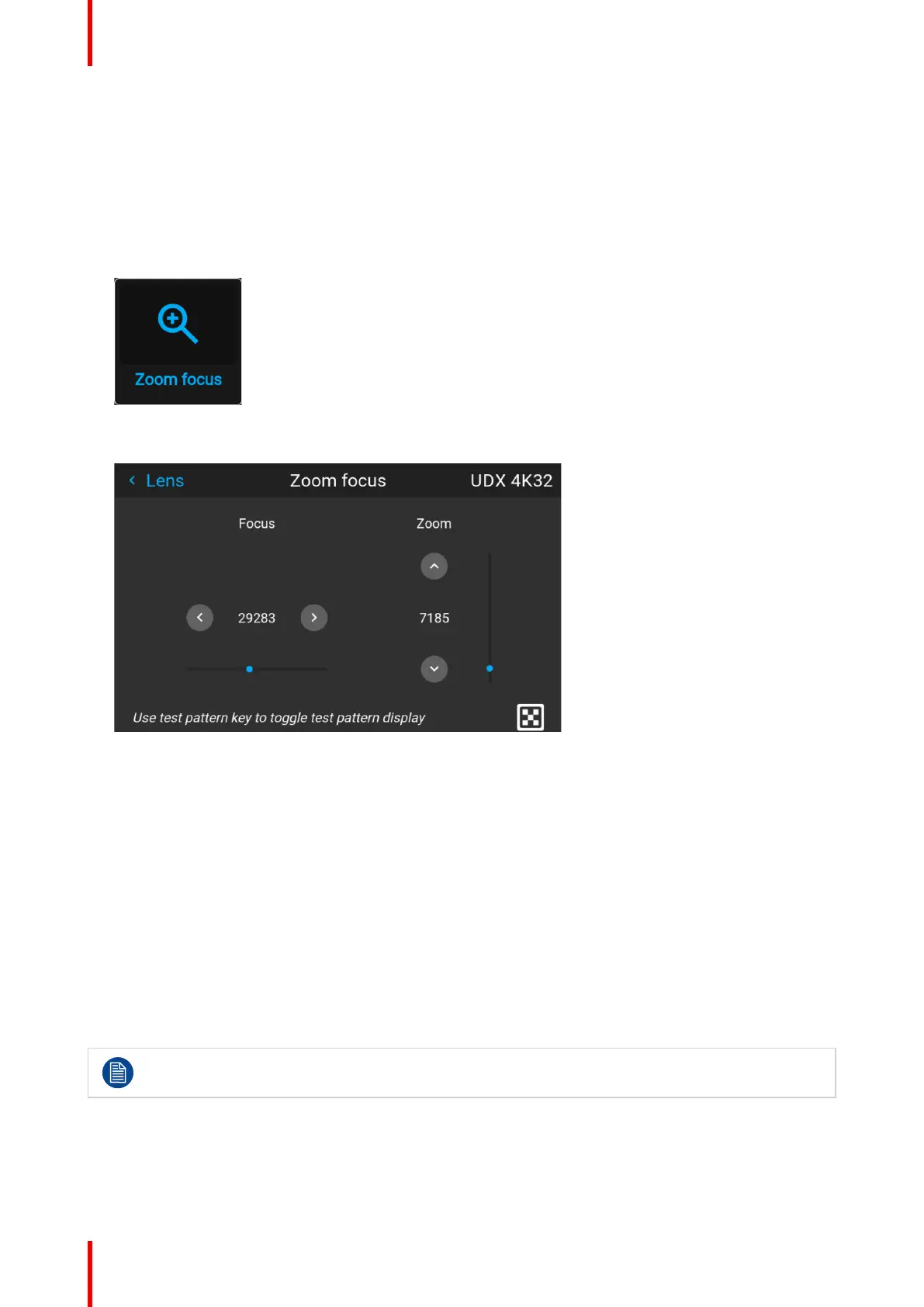

Image 8–1 Lens menu, Zoom & Focus
The Zoom and focus menu is displayed.
Image 8–2 Example of the zoom and focus adjustment menu
2. Use the ▲ or ▼ key to zoom the lens in or out.
Use the ◄ or ► key to focus the lens to far or near.
8.2 Configuring the lens, shift
What can be done?
The image can be optically shifted by using the vertical and horizontal lens shift.
If you want to reach a lens shift beyond what is possible with the optical shift, you can also perform a digital
lens shift. This digital shift will occur on the DMD, rather than the lens holder. So take into account that this
additional shift is minimal and restricted to the limits of the chip used.
For the digital zoom and shift, navigate to Home → Image → Digital Zoom Shift. For more info, see “Digital
Shift & Zoom”, page 69.
Optical lens shift is only possible when the used lens has been fully calibrated. To calibrate the lens,
navigate to System Settings → Maintenance → Lens Calibration.
Vertical and Horizontal Shift
1. In the main menu, select Installation → Lens → Shift.
