25R5906112 /15 UDX
Image 2–3

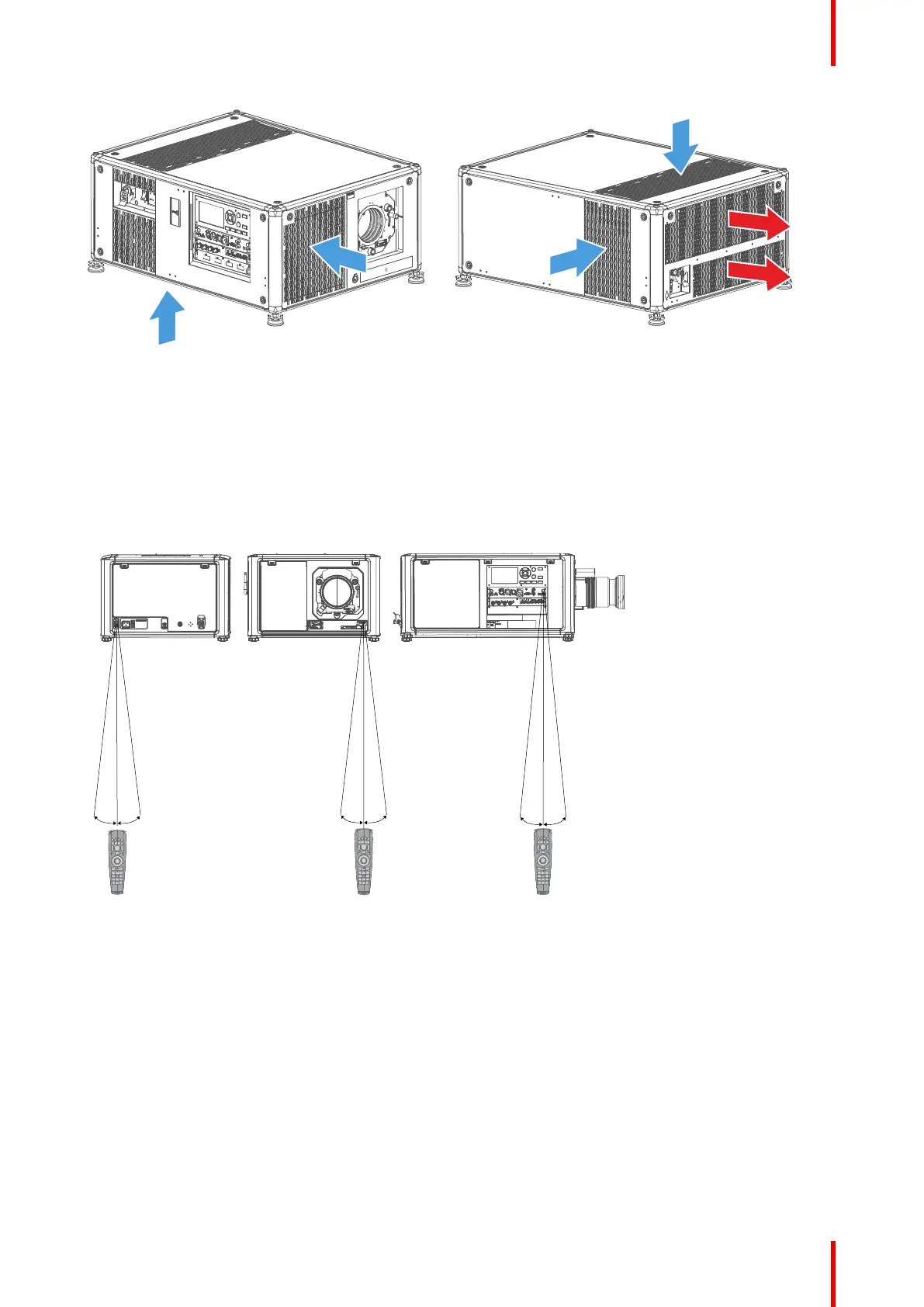

Projector Infra Red receivers and Remote Control Unit
The projector has three Infra Red receivers: one at the rear (next to the power input), one at the front (below
the lens holder) and one at the right side (integrated in the Input & Communication module).
Point the Remote Control Unit (RCU) directly to the Infra Red (IR) receiver. Make sure you are within the
effective operating distance (30 m, 100 ft in a straight line)
The RCU will not function properly if strong light strikes the IR sensor window or if there are obstacles
between the RCU and the IR sensor.
Image 2–4
For detailed info about the RCU see chapter “Pulse Remote Control Unit”, page 31.
2.2 Power on projector
How to power on
1. Press the mains switch at the side of the projector to switch on this projector.
Getting started
