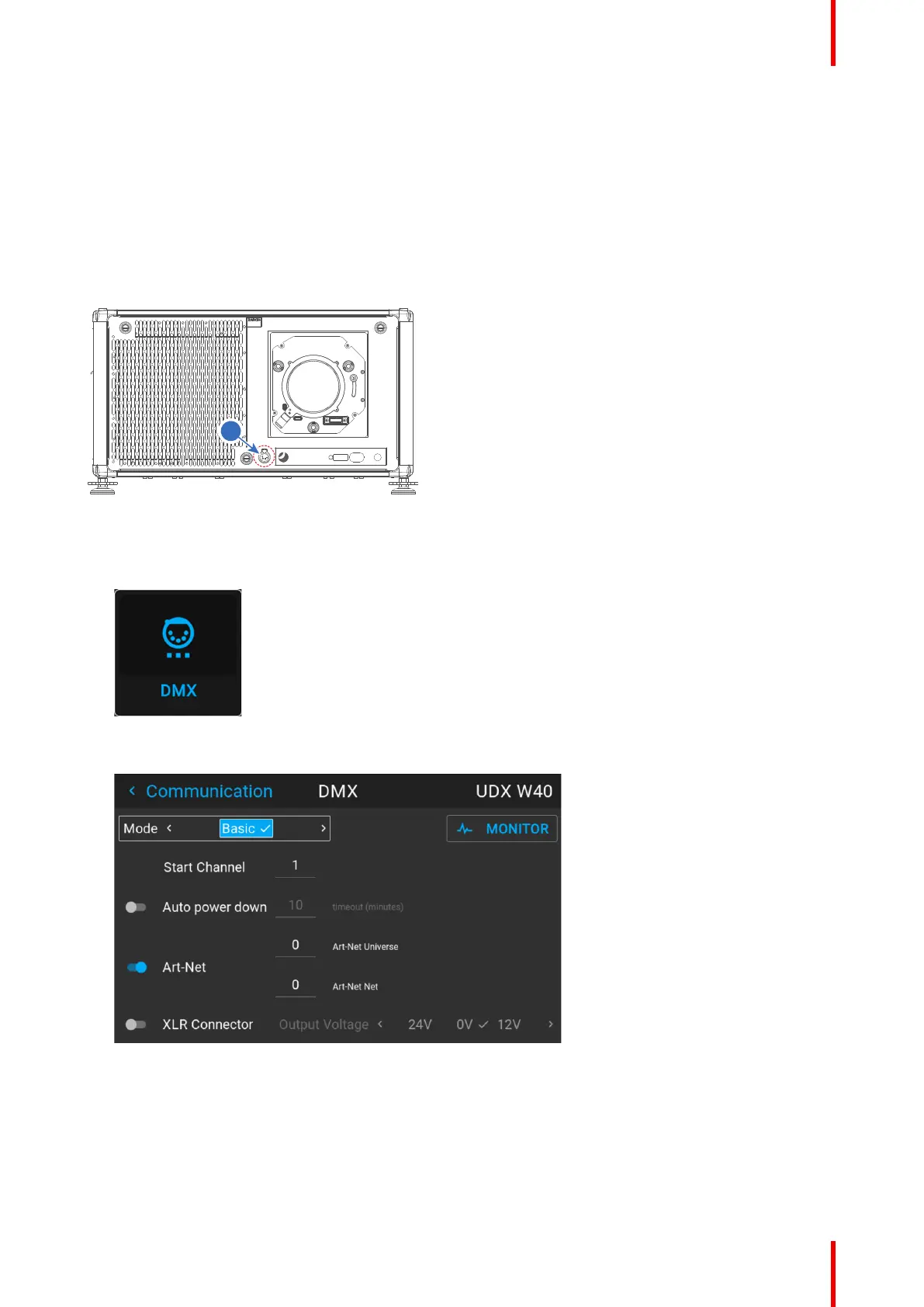

137R5906112 /15 UDX
10.5 Front XLR output voltage control
What can be done?
The output voltage on the front XLR connector can be enabled or disabled. If enabled, the output voltage level
can be set to 0 V, 12 V or 24 V.
The output voltage will depend on the application or peripheral used. For example, the optional external
mechanical shutter requires 12 V. The motorized rigging frame on the other end requires 24 V.
Location of the XLR connector
1
Image 10–29 Location of the XLR connector on the UDX
How to enable or disable?
1. In the main menu, select System Settings Communication DMX.
Image 10–30 Communication menu, DMX
The DMX menu is displayed.
Image 10–31 Example of the DMX menu
2. On the bottom of the DMX menu, Enable the XLR connector slider.
3. Select the desired Output Voltage.
GUI System Settings
