DMX Feature What can be done?
If no DMX signals are available, you can reset the intensity value to its default (maximum)
value of 255 using the Max Intensity button.
Auto power
down
The projector can be forced to shut down after a certain time-out period if no DMX signals
are available.
Note: Value is set in minutes.
DMX Art-Net DMX can be sent via the Ethernet connector to the projector instead of the classic DMX
connector. This function can be enabled or disabled. Art-Net is generally used when more
than 512 addresses are used in your setup.
DMX Art-Net
Universe
Note: DMX Art-Net Universe can only be used when Art-Net DMX is enabled.
If Art-Net is enabled, you can specify which DMX universe this projector belongs to.
Front XLR
connector
If available on your projector, the power of the XLR connector on the front side of the
projector can be enabled and set to a desired value.
Note: If no front XLR connector is available on your projector, this option remains hidden.
How to set up DMX?
1. In the main menu, select System Settings → Communication → DMX.

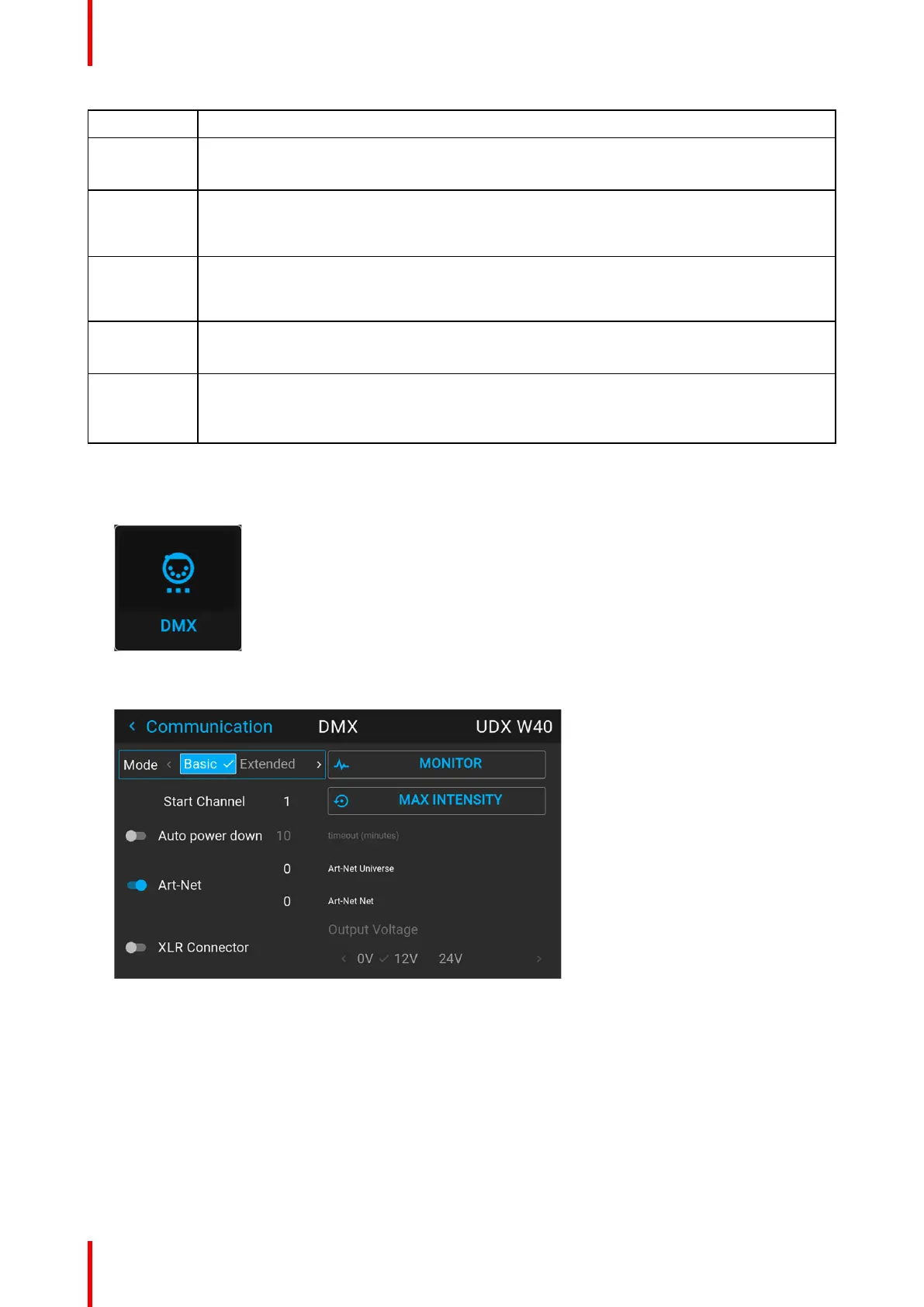

Image 10–27 Communication menu, DMX
The DMX menu is displayed.
Image 10–28 Example of the DMX menu
2. Choose the desired DMX mode.
3. Choose the desired starting channel.
4. Choose whether or not you want the Auto power-down feature to be enabled. If enabled, determine the
time-out.
5. If required, enable Art-Net. If enabled, determine the desired Art-Net Universe and Art-Net channel.
6. If a front XLR connector is available on your projector, you can enable the output voltage on this
connector.
