95R5906112 /15 UDX

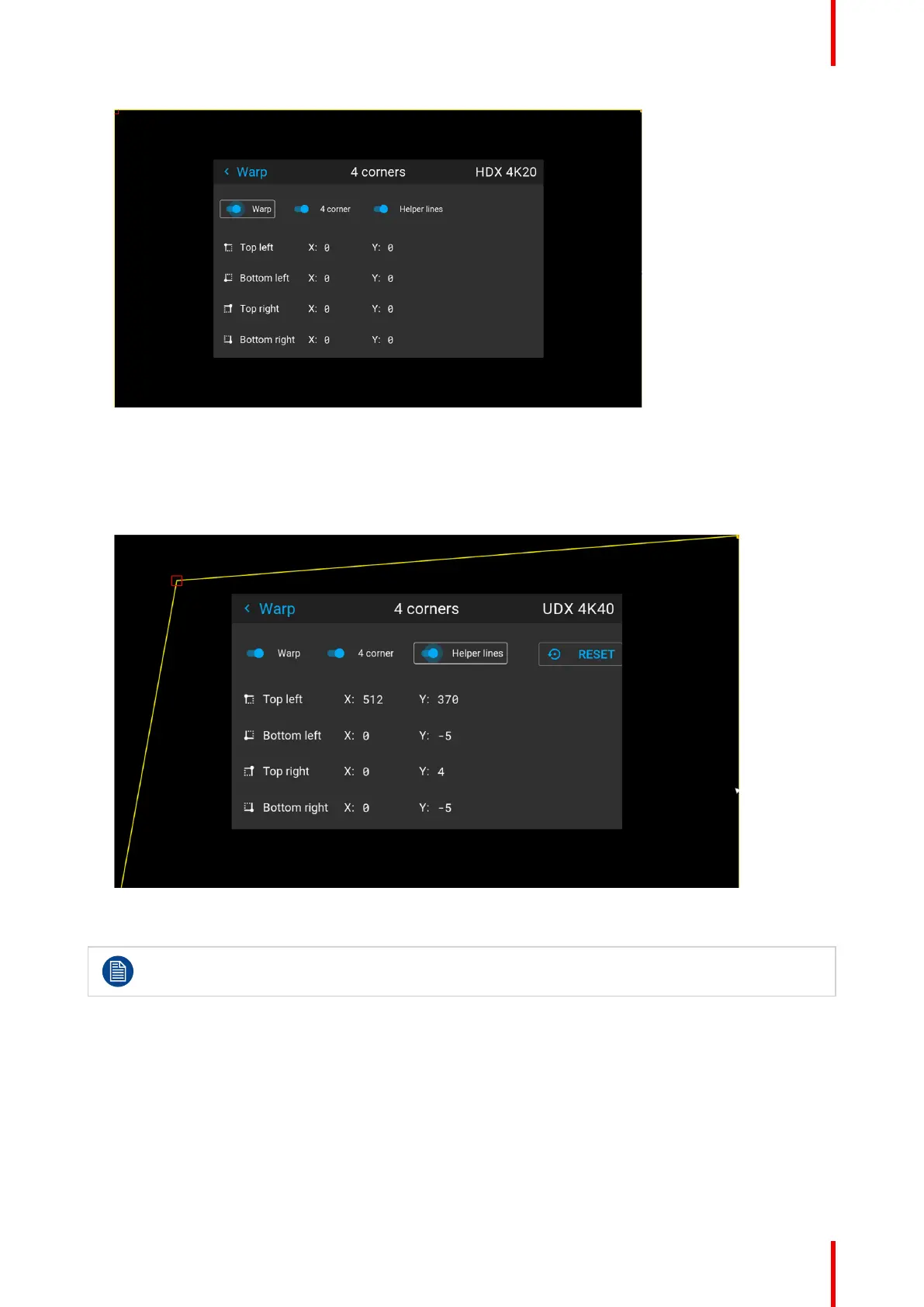

Image 8–40 Example of 4 corners warping menu, with helper lines active on the edges of the screen
4. To set warping on one of the four corners, select one of the four corners and confirm.
5. Set the desired X and Y coordinates for this corner, using the arrow keys, and confirm.
After confirming, the helper lines for that corner will jump to the entered XY coordinate (if helper lines were
enabled).
Image 8–41 Example of the 4 corners menu, with 4 corner warping and helper lines enabled
6. Repeat from go to step 4 for each corner, until all corners are warped in the desired position.
To reset the 4 corner adjustments, select Reset and press the OK button.
8.11.4 Warping – Bow
About bow adjustment
A bow distortion can be adjusted so that a normal image is displayed. Positive adjustments introduce more
outside bow distortion. Negative adjustments introduce more inside bow distortion.
GUI – Installation
