R5906112 /15 UDX96

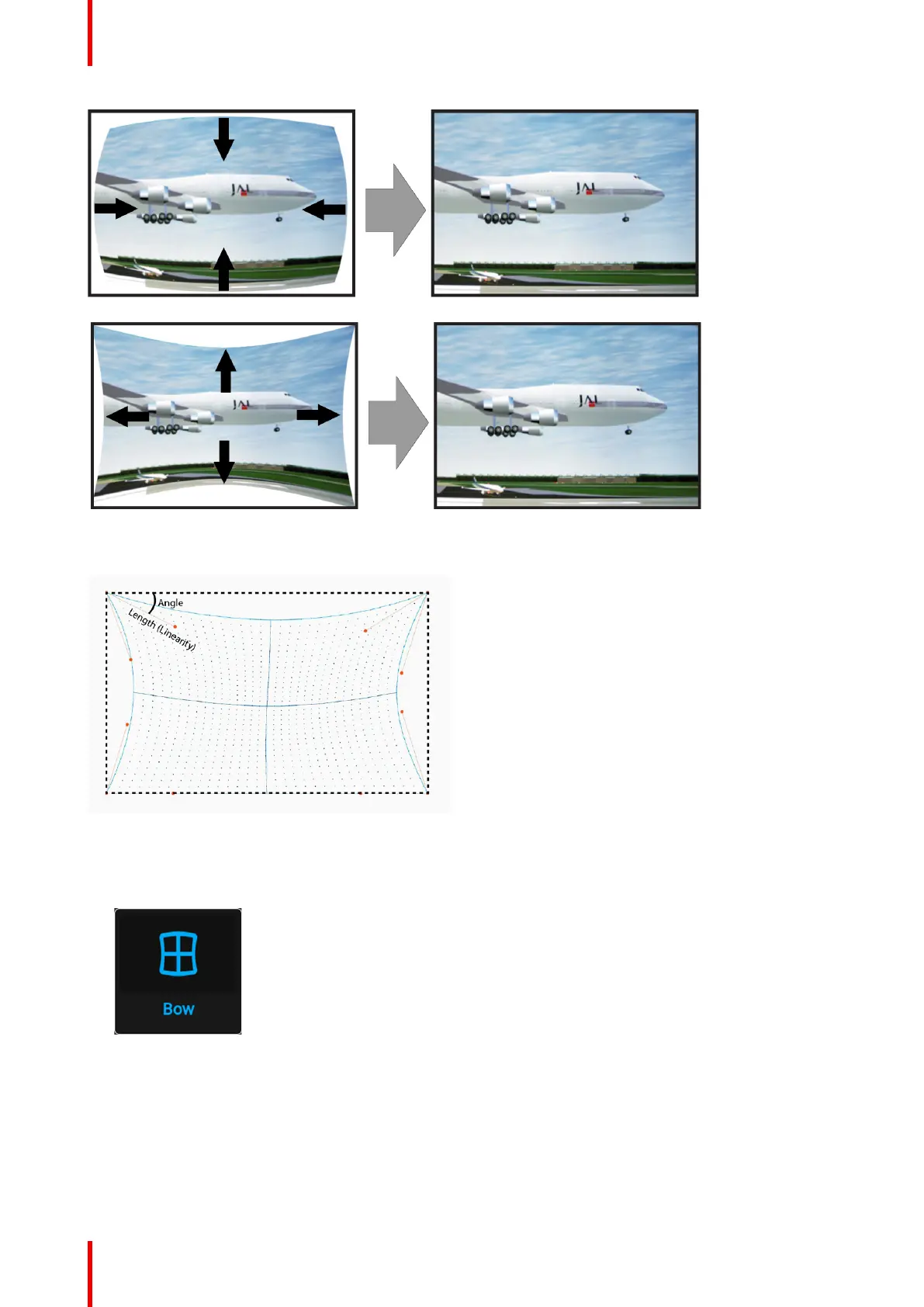

Image 8–42 Bow distortion
Definition of angle and linearity (length) in the bow warp procedure
Image 8–43
Symmetric bow correction
1. In the main menu, select Installation → Warp → Bow.
Image 8–44 Warp menu, Bow
The bow menu is displayed.
2. To enable bow correction, make sure the Bow slider is enabled (visible by the blue highlight).
3. To perform a symmetric adjustment , make sure the Symmetric slider is set to On (visible by the blue
highlight).
GUI – Installation
