R5906112 /15 UDX134

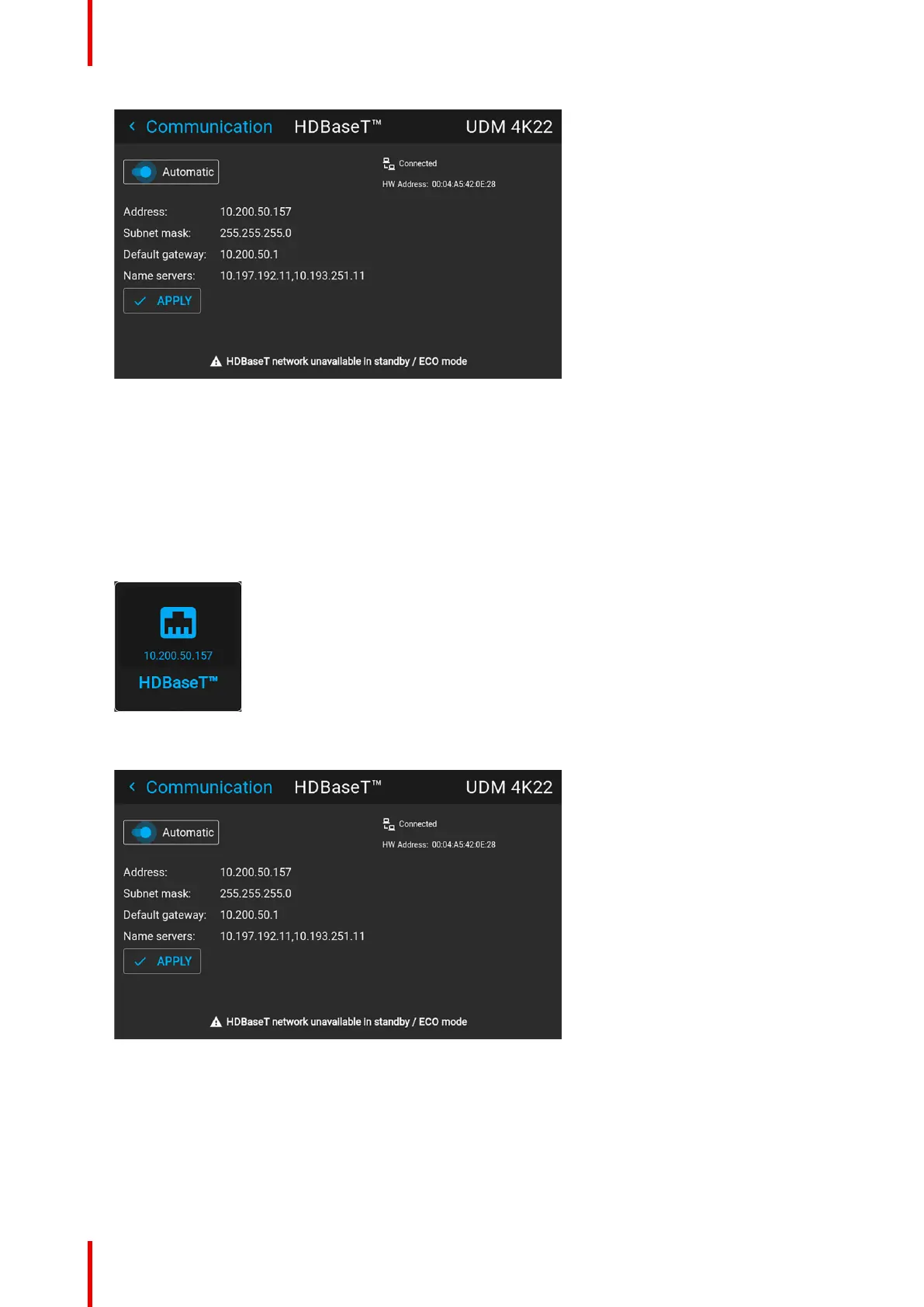

Image 10–23 Example of the HDBaseT
TM
menu
2. To enable Automatic, make sure the Automatic slider is set to the right. The color of the slider will be blue.
An IP address will be automatically assigned if it can make a connection to the network..
When connected, it is indicated with the connection symbol and the indication Connected.
3. Select APPLY and confirm.
How to manually set up the IP address
1. In the main menu, select Settings → Communication → HDBaseT
TM
.
Image 10–24 Communication menu, HDBaseT
TM
The HDBaseT
TM
menu is displayed.
Image 10–25 Example of the HDBaseT
TM
menu
2. Disable the Automatic slider. The slider becomes gray.
3. Use the arrow keys to select Address and press OK button to activate the input box.
GUI – System Settings
