R5906112 /15 UDX38

How to install

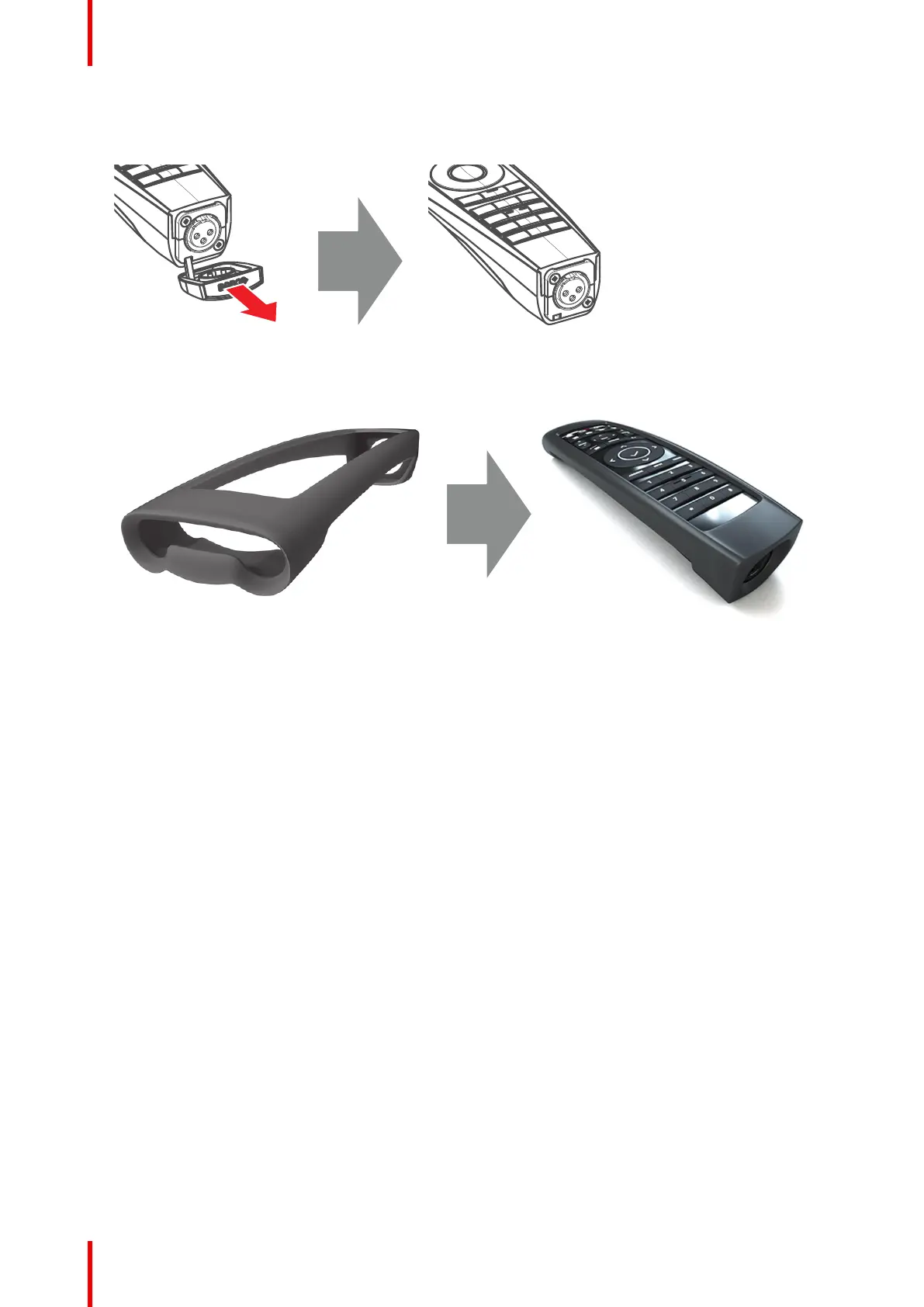

1. Pull off the rubber XLR-lid from the RCU.

Image 3–10

2. Place back side (XLR side) of the RCU into the sleeve and pull the other side of the sleeve over the front

side of the RCU.

Image 3–11

Pulse Remote Control Unit
