The correction will occur symmetrically on each side of the center of the highlighted side.
7. Repeat this step for all sides of the picture that has to be corrected, until the desired transformation has
been achieved.

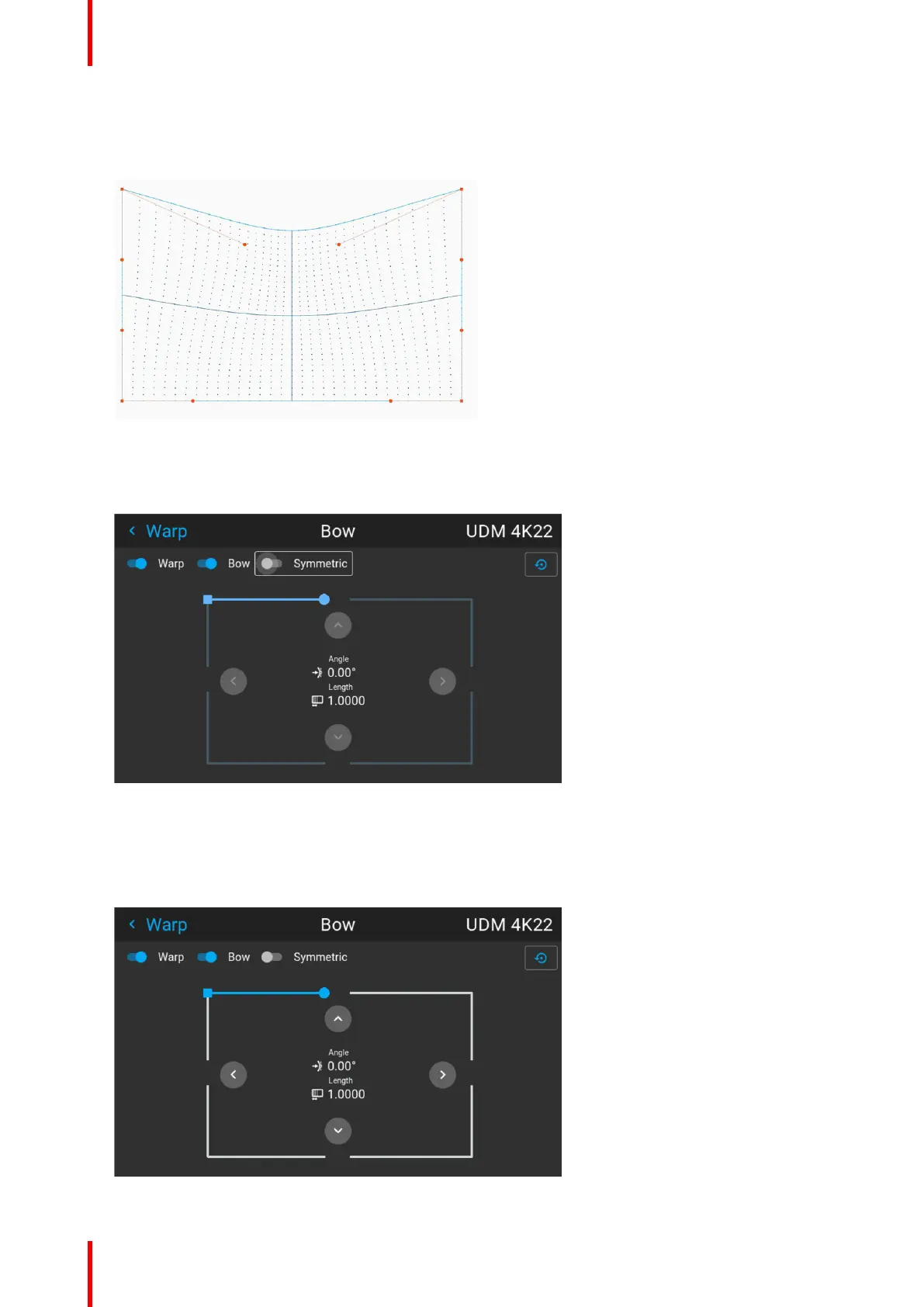

Image 8–48 Example of a symmetric bow correction
Asymmetric bow correction
1. In the Bow menu, enable the Bow slider and disable the symmetric slider.
Image 8–49 Example of the bow menu, with the Symmetric slider disabled
There are now two vectors on each side of the picture that can be adjusted individually.
2. Use the arrow keys to select the helping lines that represent the picture and confirm.
The helping lines that represent the projected picture are now colored blue, while the others are colored
white.
Image 8–50
