In case of a mounting platform, the same holes are used to fix it to the MR3000DMS. This
application must be preferred in cases where the surface of installation is not perfectly smooth. In
Figures 2.4.16 and 2.4.17 it is possible to have all the information about the distances.
Syscom provides 8 screws M8 in the kit with the mounting plate. The tools can be seen in Figure
2.4.18.

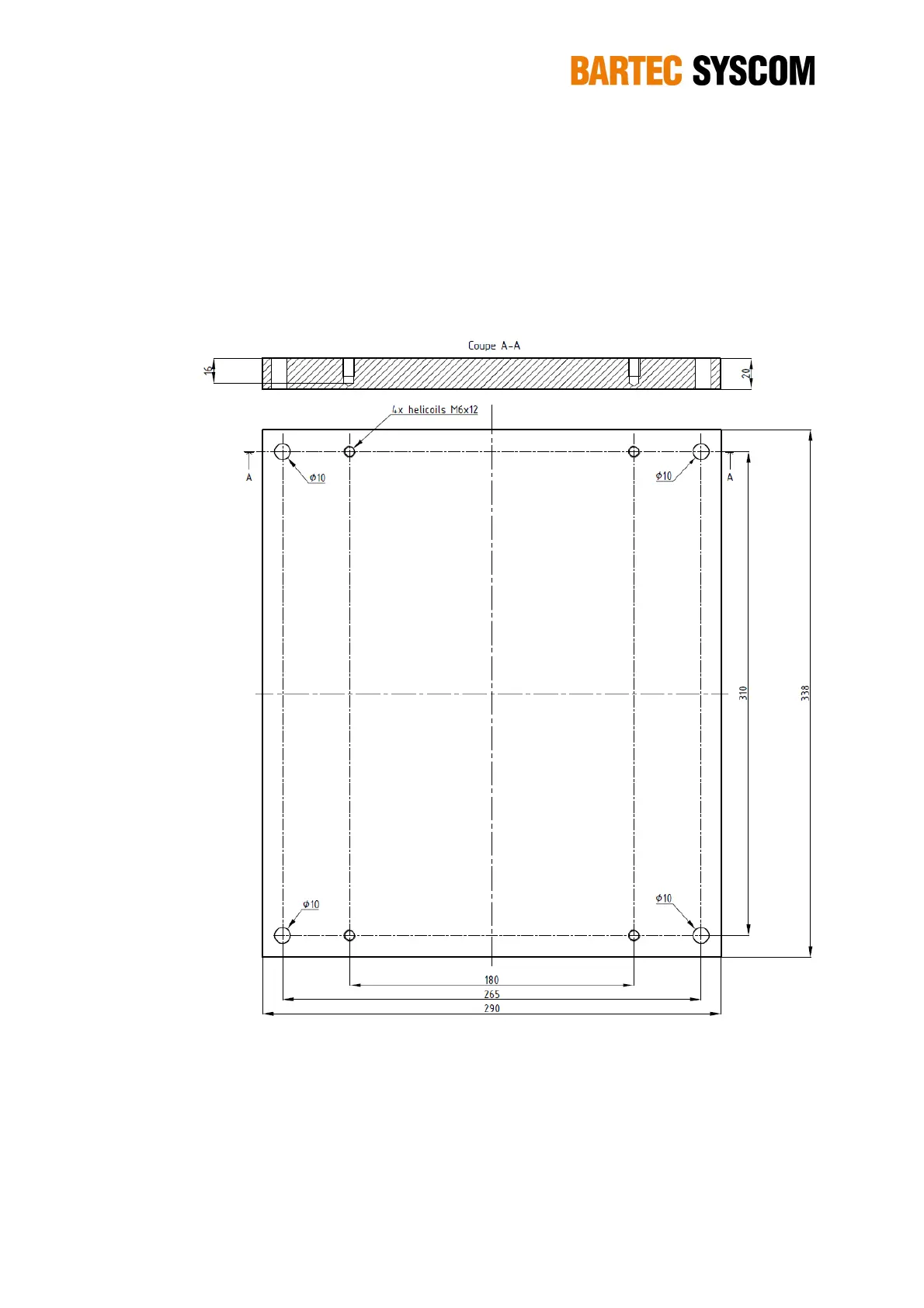

Figure 2.4.17. Drawing of the mounting plate related to the MR3000DMS. The values are in mm.
