Human Machine Interface 2-3

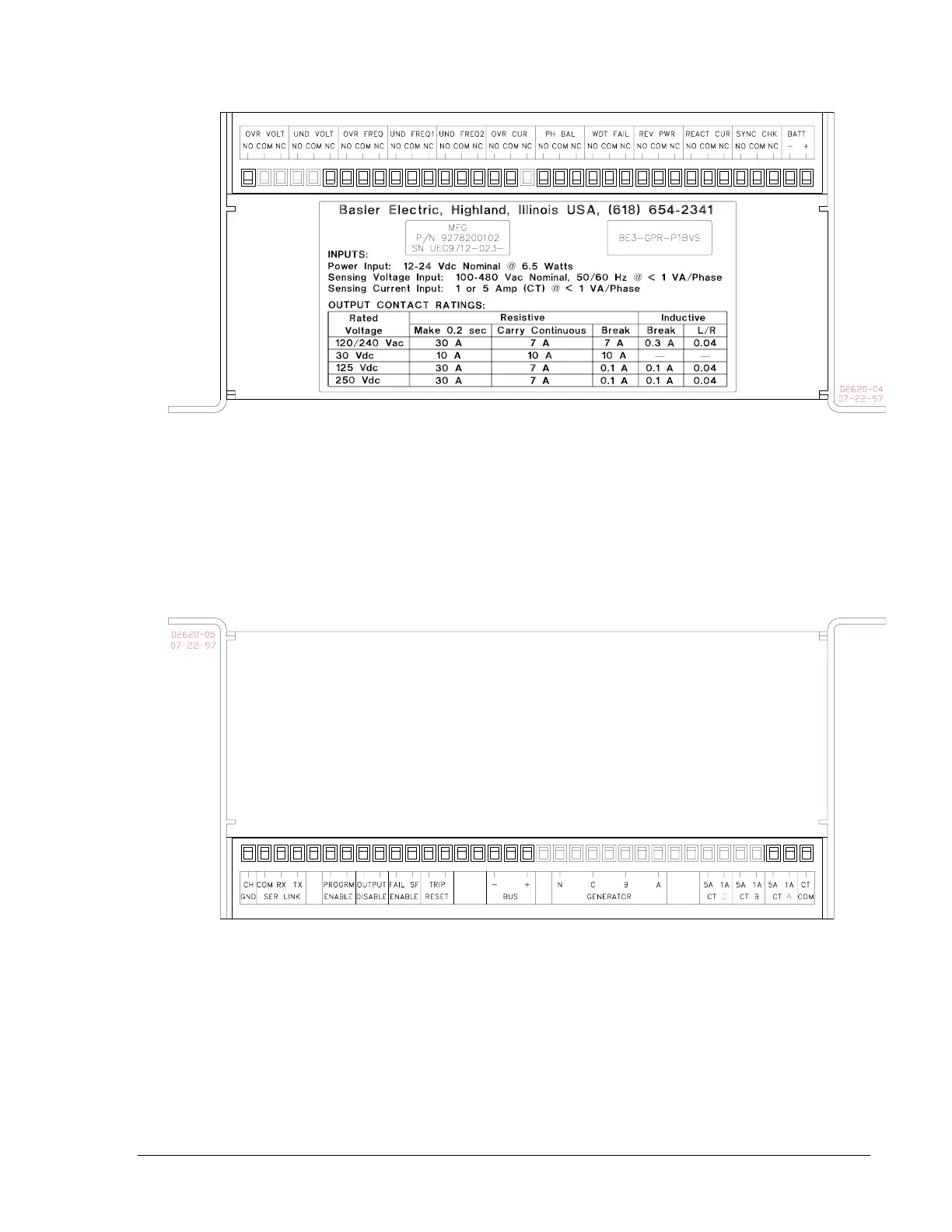

Figure 2-4. BE3-GPR (TOC) Bottom Panel
Figure 2-5. BE3-GPR (TOC) Top Panel
Compression type terminal strips make wiring simple. These connections accept one #10 AWG wire or
two #14 AWG wires. These operations are made even more simple by the user friendly labeling of the
terminals.
