NGF Communications 5-3

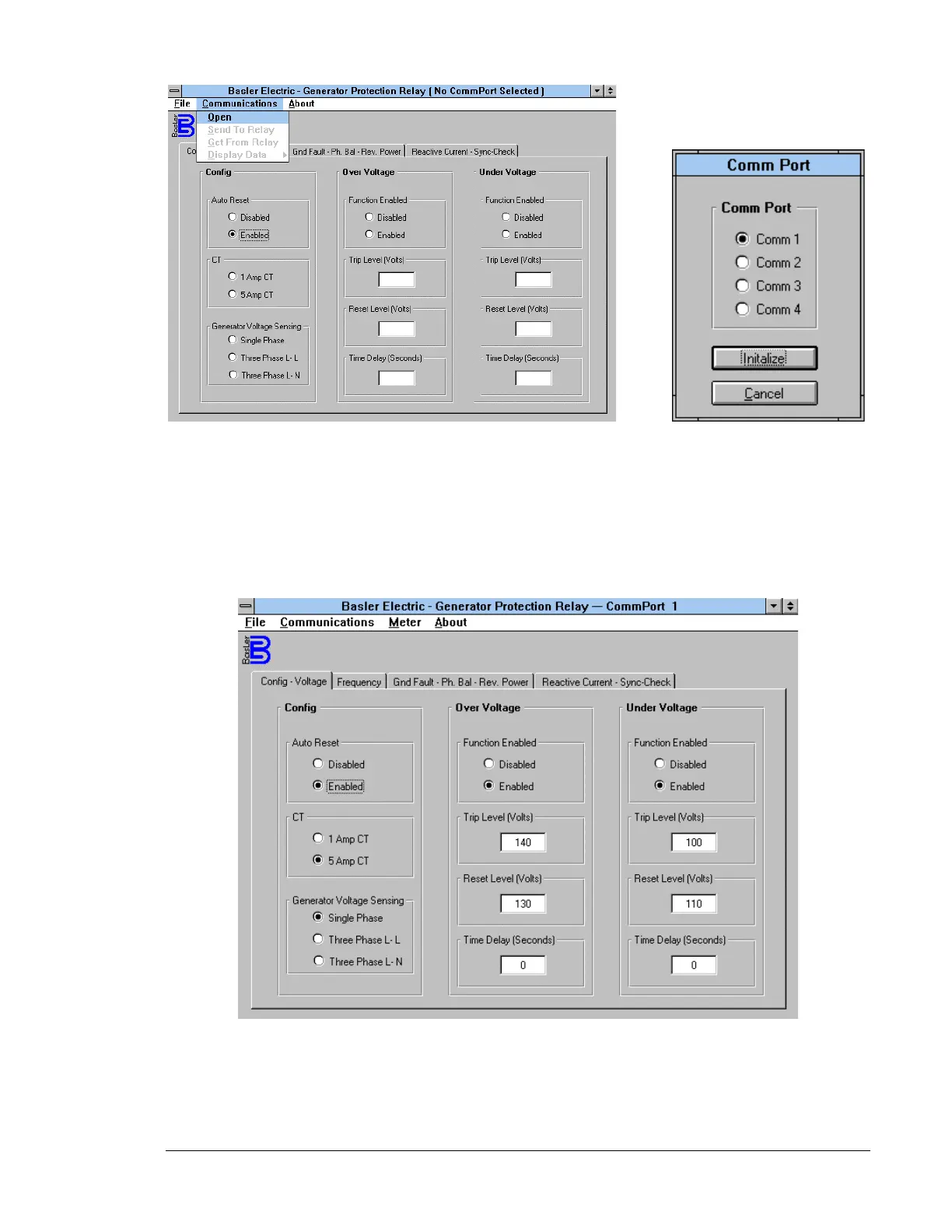

Figure 5-2. BE3-GPR Communications Open Screen Figure 5-3. Comm Port
Select a comm port (like Comm 1 in Figure 5-3) and Initialize it. This opens the communication port
and returns the current settings from the BE3-GPR unit. You do not have to select the communication
protocol parameters because the software application program does that for you. Figure 5-4 is a
sample of the screen showing the settings returned from the BE3-GPR unit.
Figure 5-4. BE3-GPR Sample Settings Screen
