Baumer NE134 - English

NE134
www.baumer.com
23
Contents Page
General / Safety instructions 24
System description 26
Description 26
Block diagram 26
Connecting 27
Voltage supply connection 28
Signal outputs „relay contacts“ 28
Signal outputs „electronic“ 29
Assignment signal inputs 29
Example of connection 30
Sensor supply connection 30
RS485 interface connection 30
Operating mode 31
Key functions 31
Programming mode 34
Operating modes 39
Counting modes (input mode) 40
Output (output mode) 41
Technical data 42
Dimensions 44
Error messages 44
Part number 44
Operating Instructions

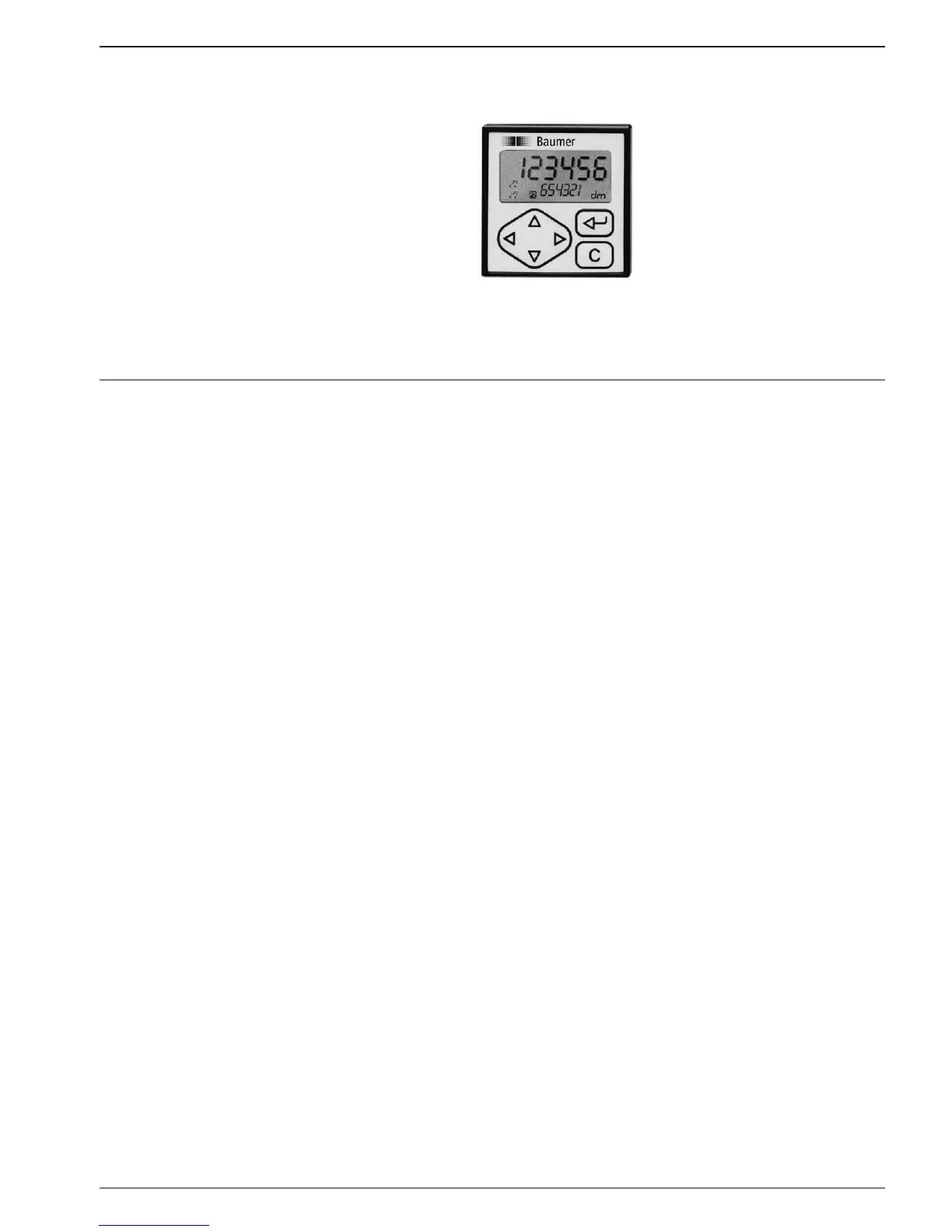

Electronic Preset counter
NE134
