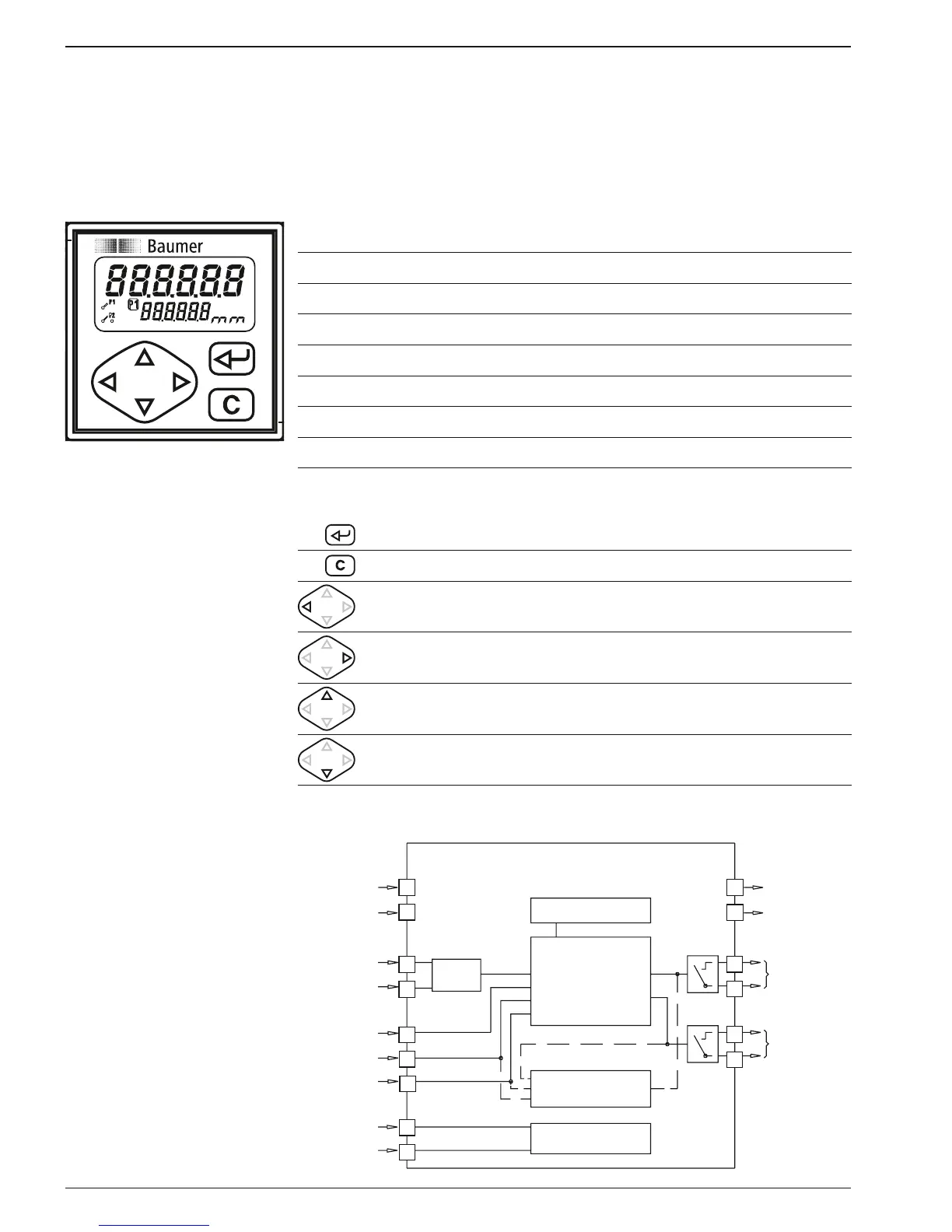

2 System description
2.1 Description
- a 6-digit preset counter with 1 or 2 settings
- a 6-digit batch counter with 1 or without preset
- an 8-digit totalizer.
LCD-Symbol display
Current count
P1 - Preset value 1
P2 - Preset value 2
Control state of preset P1
Control state of preset P2
b - Batch counter
tot - Totalizer
Measuring units: mm, cm, dm, m, L
Control display
Key to shift between function display, confirmation key
Reset key
Key to select decades to the left
Key to select decades to the right
Key to select higher decades
Key to select lower decades
2.2 Block diagram
V olt age
s upply
Signal input
A
B
Control input
Output
P1
P2
A 90°B
Totalizer
Interface
RS485
Batch counter with
or without preset
Main counter with
1 or 2 presets
start count
scaling factor
1
2
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
T,R-
T,R+
Sensor
supply
+
-
+
-
