Syscompact 2000 M pro Product information
822-175-2 19 / 98

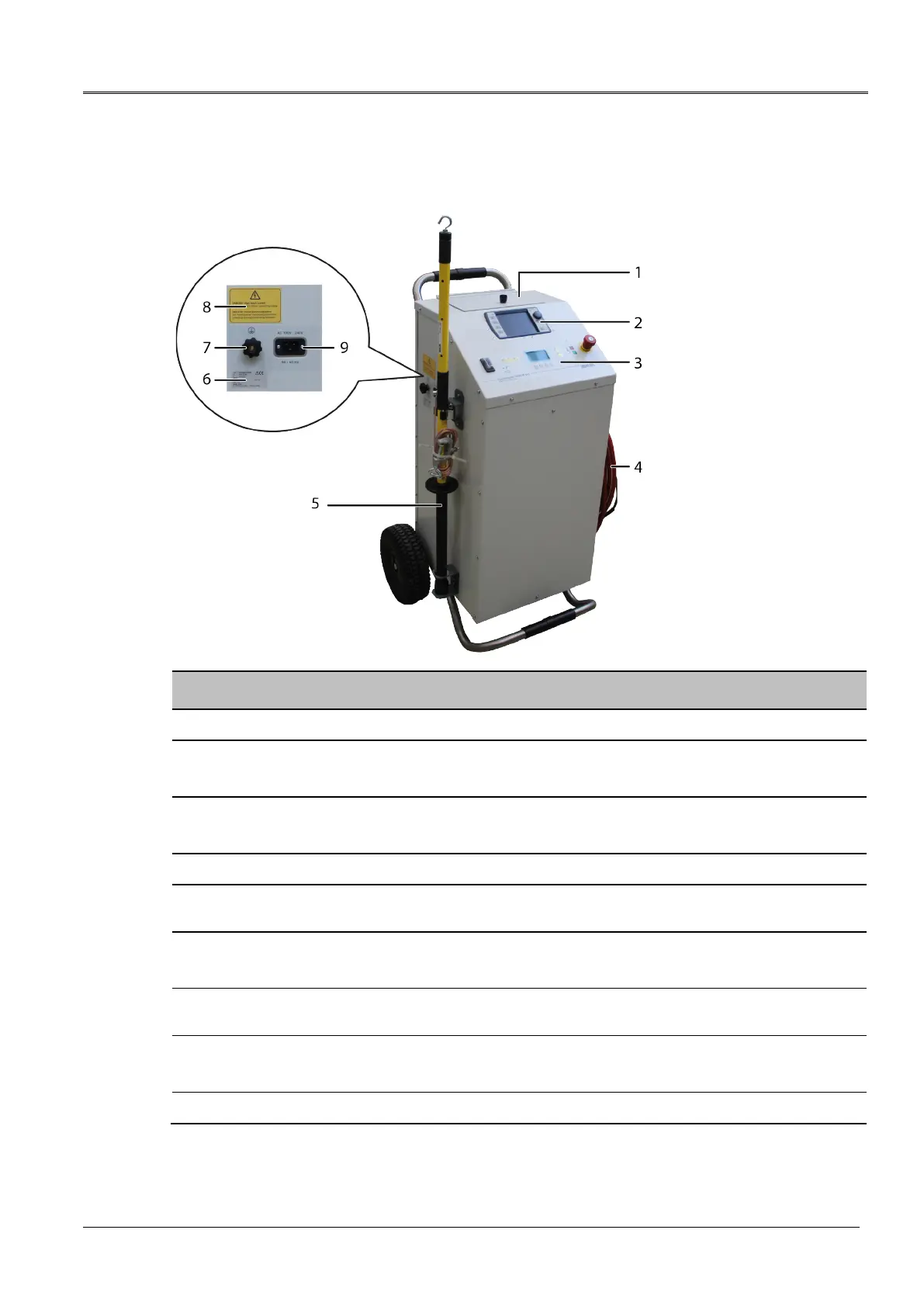

3.2 Full illustration of Syscompact 2000 M pro
No. Element Function
1 Cable compartment Provides access to the ports of the IRG 2000 time domain reflectometer
2 IRG 2000 time
domain reflectometer
Is used to perform and evaluate the cable fault pre-location
Further information: Chapter IRG 2000 time domain reflectometer (on page 21)
3 System control panel Is used to switch the system on and off and control the surge voltage generator
Further information: Chapter System control panel (on page 20)
4 HV connection cable Is used to connect the Syscompact 2000 M pro to the test object
5 Discharge and earth
rod
Is used to discharge and earth the test object
6 Rating plate Contains the technical data and connection requirements for the system
Further information: Chapter Markings on the system (on page 27)
7 Protective earthing
connection
Is used to connect the protective earthing
8 Safety notice Warns against high touch current
Further information: Chapter Markings on the system (on page 27)
9 Mains connection Is used to connect the system to the mains voltage
