Syscompact 2000 M pro Commissioning
822-175-2 37 / 98
Unscreened cable with 3 phases

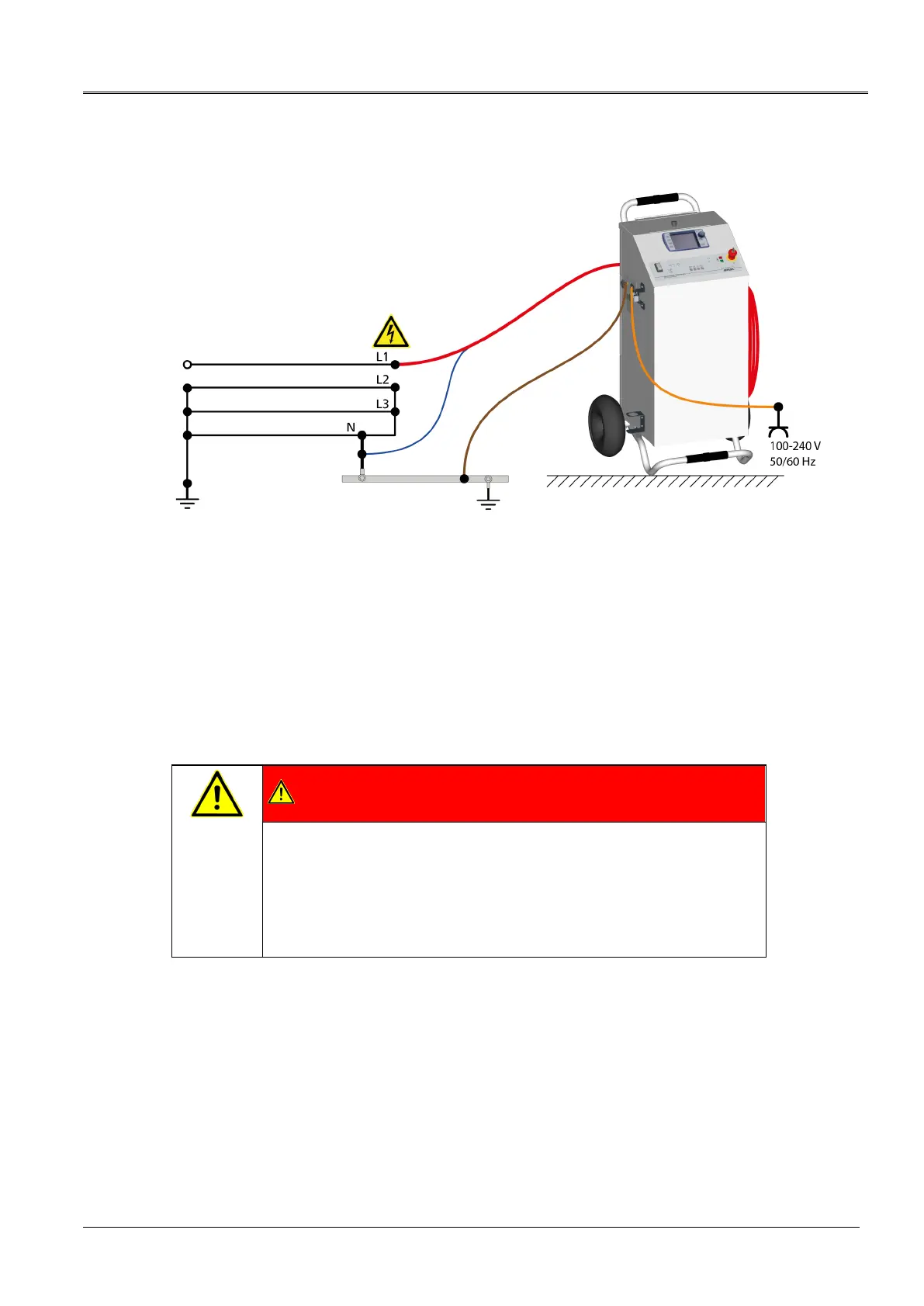

6.6 Connecting the TDR connection cable to the test object
(IRG 2000)
6.6.1 Safety instructions for connecting the IRG 2000 to the live cable
The IRG 2000 may only be used on live cables in the following scenarios:
For TDR measurements (methods: TDR, TDR Continuous and TDR Trigger)
If the voltage-proof input is enabled (parameter Voltage proof > On)
In electric circuits up to AC 400 V
DANGER
Working in the vicinity of adjacent live parts
Danger to life or risk of injury due to electric shock.
Only use the supplied TDR connection cable with fuses.
If the TDR connection cable is used without a fuse or with another
type of fuse, the IRG 2000 must not be connected to a live cable.
