Commissioning Syscompact 2000 M pro

/ 98 822-175-2

4. Remove the earthing and short-circuit connection from the phase to be tested: at the

connection point and at the far end.

5. Make sure that the phases not being tested are earthed and shorted.

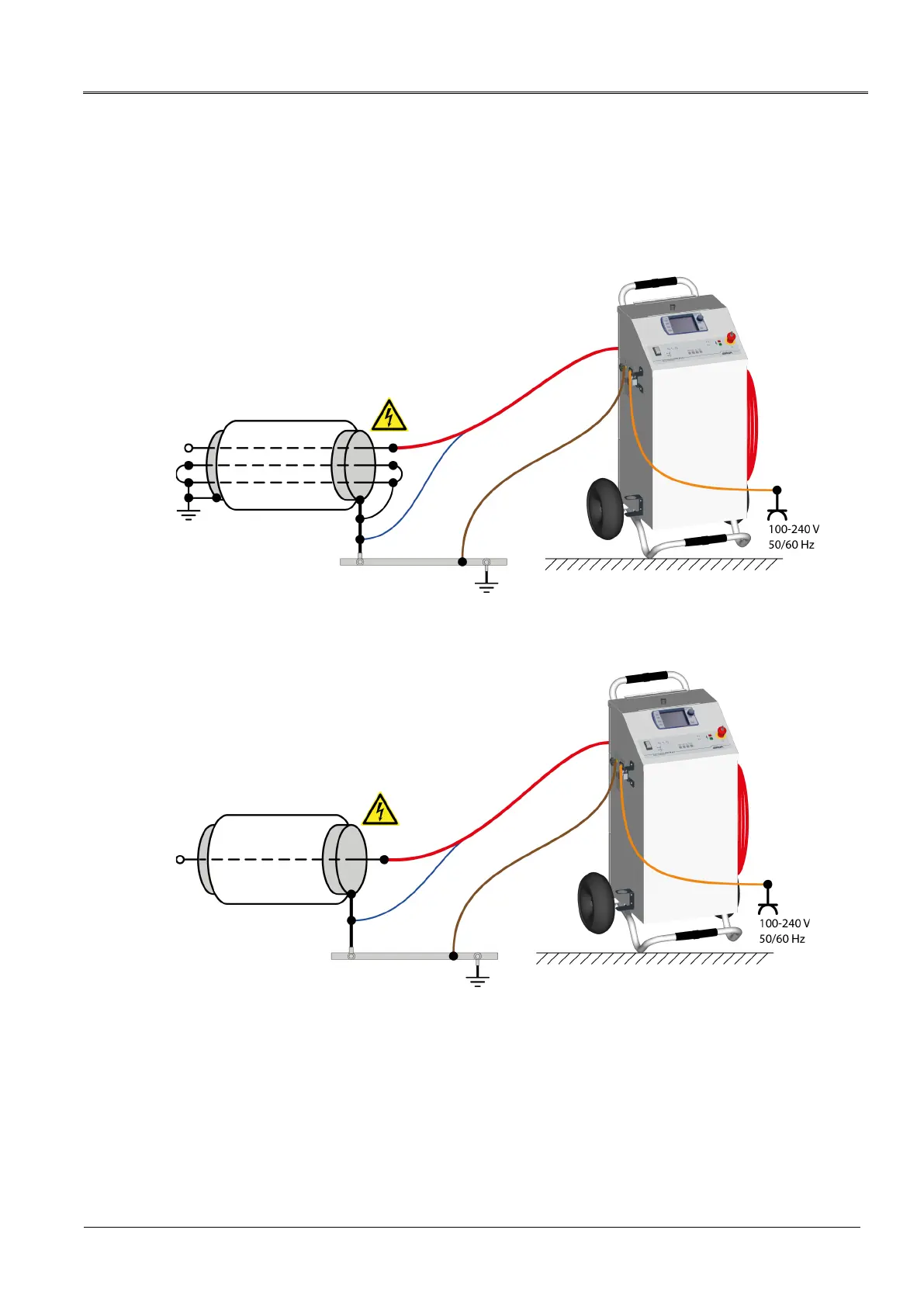

Screened cable with 3 phases

Screened cable with 1 phase
