Syscompact 2000 M pro Cable fault pre-location
822-175-2 65 / 98

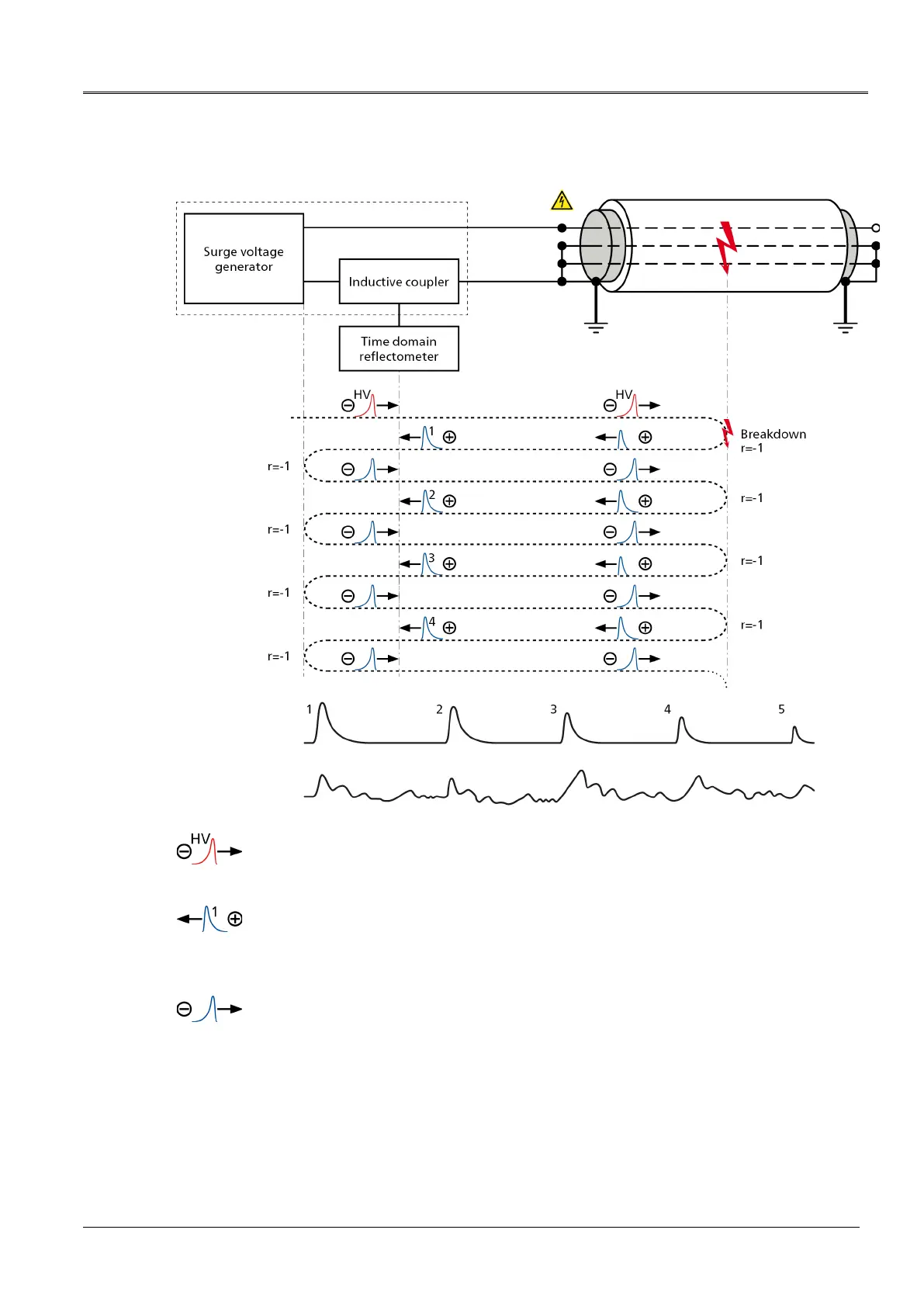

Main circuit diagram
HV surge pulse of the surge voltage generator that is fed into the test object and that
generates a breakdown at the fault.
This breakdown produces a transient wave that spreads to the test object.
Transient wave that is reflected from the fault to the connection point of the surge voltage
generator.
As the continuous electric arc produced by the breakdown is low-resistive, the polarity of
the transient wave is reversed each time.
Transient wave that is reflected from the connection point of the surge voltage generator.
As the connection point is low-resistive, the polarity of the transient wave is reversed each
