Baxi ECOGEN 24/1.0 Installation & Servicing Instructions

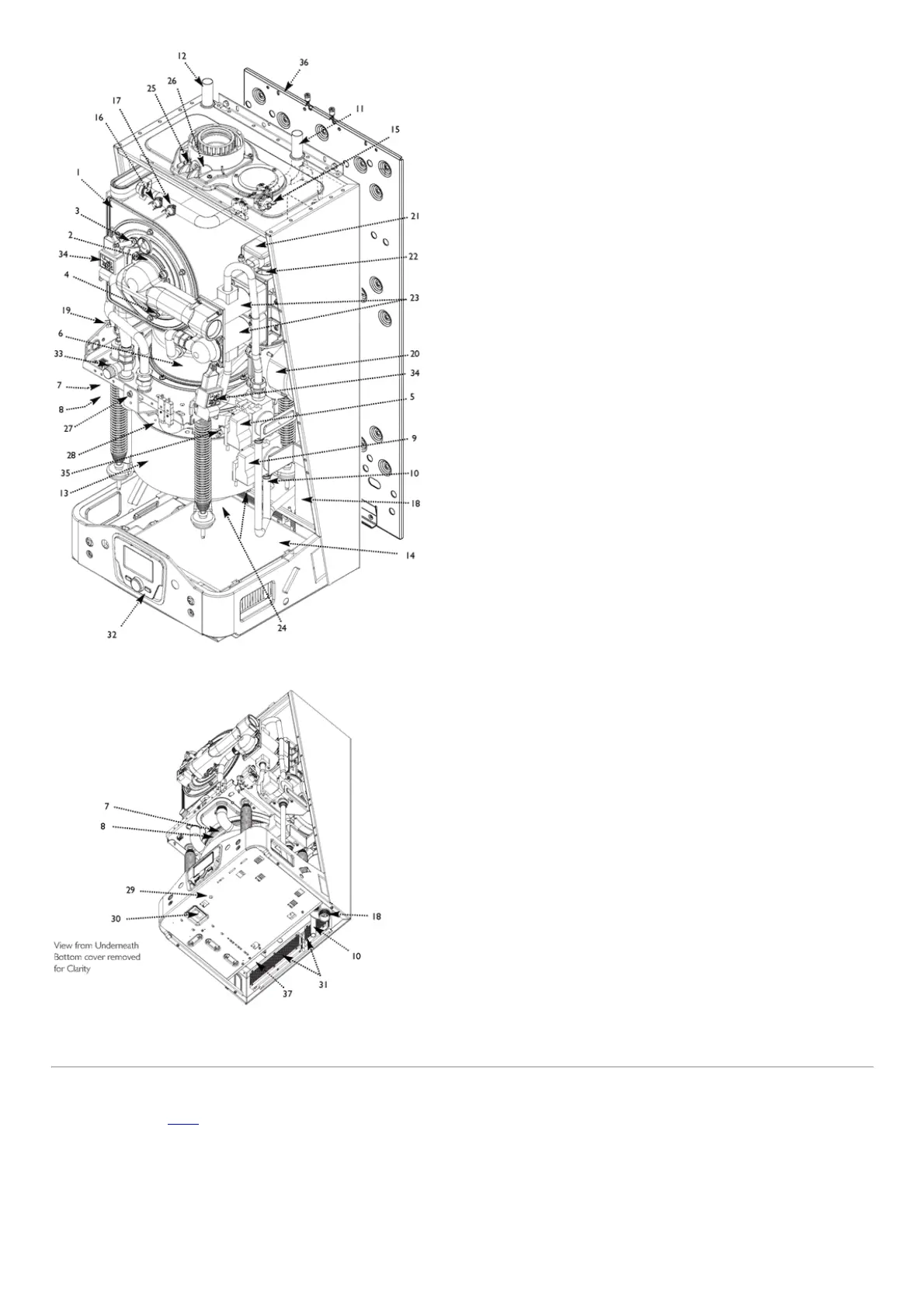

Fig.2
Fig.2a
page8
3.0ApplianceOperation
3.1OperatingMode(Fig.3)
1.Withademandforheatingorhotwater,thepumpcirculateswaterthroughtheprimarycircuit.Iftheflowis4.0L/minorabovetheignitionsequencewillstart.
2.Whentheflowtemperaturereachesthesetpointtemperature,a5minutedelayoccursbeforetheburnerrelightsautomatically(anticycling).Thepumpcontinuestorun
duringthisperiod.
3.Whenthedemandissatisfiedtheburnerisextinguishedandthepumpcontinuestorunforaperiodof5minute(PumpOverrun).

Baxi ECOGEN 24/1.0 Specifications

General

Brand	Baxi
Model	ECOGEN 24/1.0
Category	Boiler
Language	English
