Baxi POWER HT+ Series Installation And Service Manual

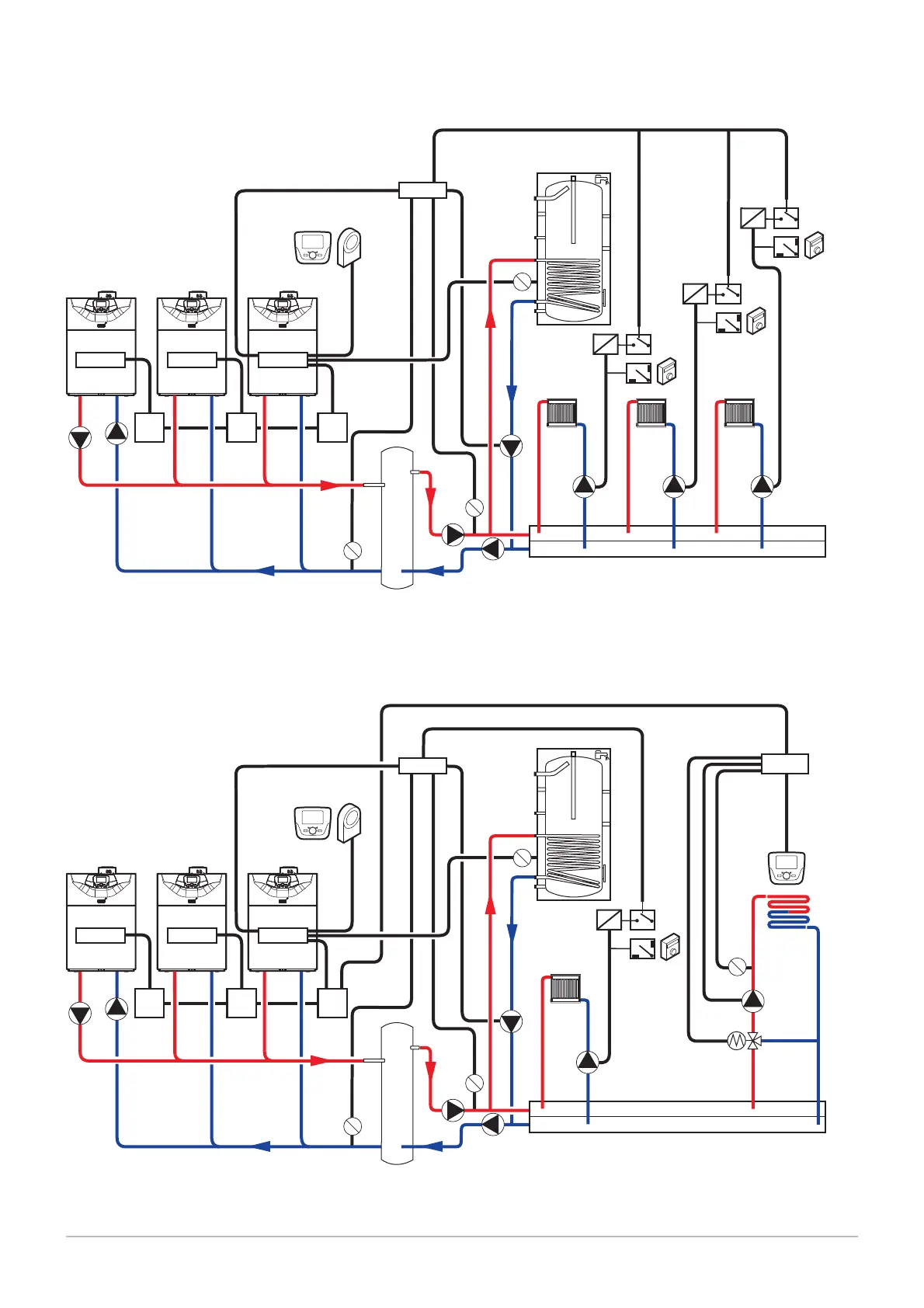

Fig.29 Connection example for boilers in cascade with domestic hot water tank and several heating circuits equipped with
room temperature thermostats
MW-3000024-01
OCI
345
OCI
345
OCI
345
OCI
345
OCI
345
AVS 75
O
OCI
345
Optional interface unit for boilers in cascade A
AVS
75
Connection option for boilers in cascade
Fig.30 Connection example for boilers in cascade with domestic hot water tank and several heating circuits equipped with
room temperature thermostats, including underfloor heating circuits
MW-3000025-01
OCI
345
OCI
345
OCI
345
OCI
345
OCI
345
AVS 75
RVS 46
OCI
345
Optional interface unit for boilers in cascade A
AVS
75
Connection option for boilers in cascade
5 Before installation
32 7609474 - v02 - 04092014

Baxi POWER HT+ Series Specifications

General

Model	POWER HT+ Series
Category	Boiler
Installation Type	Wall-mounted
Heat Exchanger Material	Stainless Steel
Warranty	2 years
Fuel Type	Natural Gas
Control System	Integrated Control
Ignition Type	Electronic
