Baxi POWER HT+ Series User Manual

D Room thermostat
E Heating circuit pump
F Domestic hot water pump
G Safety contact
H Boiler pump
I Auxiliary sensor 1
J Auxiliary sensor 2
K Outside sensor
L Domestic hot water sensor
M Room temperature sensor 1
N Room temperature sensor 2
O Room temperature sensor 3
P Boiler pump modulation (PWM)
1 Flow temperature sensor
2 Return temperature sensor
3 Hydraulic pressure sensor
4 Flue gas sensor
5 Control panel display
6 Ionisation probe
7 Spark plug
8 Igniter
9 Gas valve
10 Safety thermostat
11 Fan
12 Thermal fuse
13 Safety thermostat on the combustion chamber door
14 Flue gas pressure switch

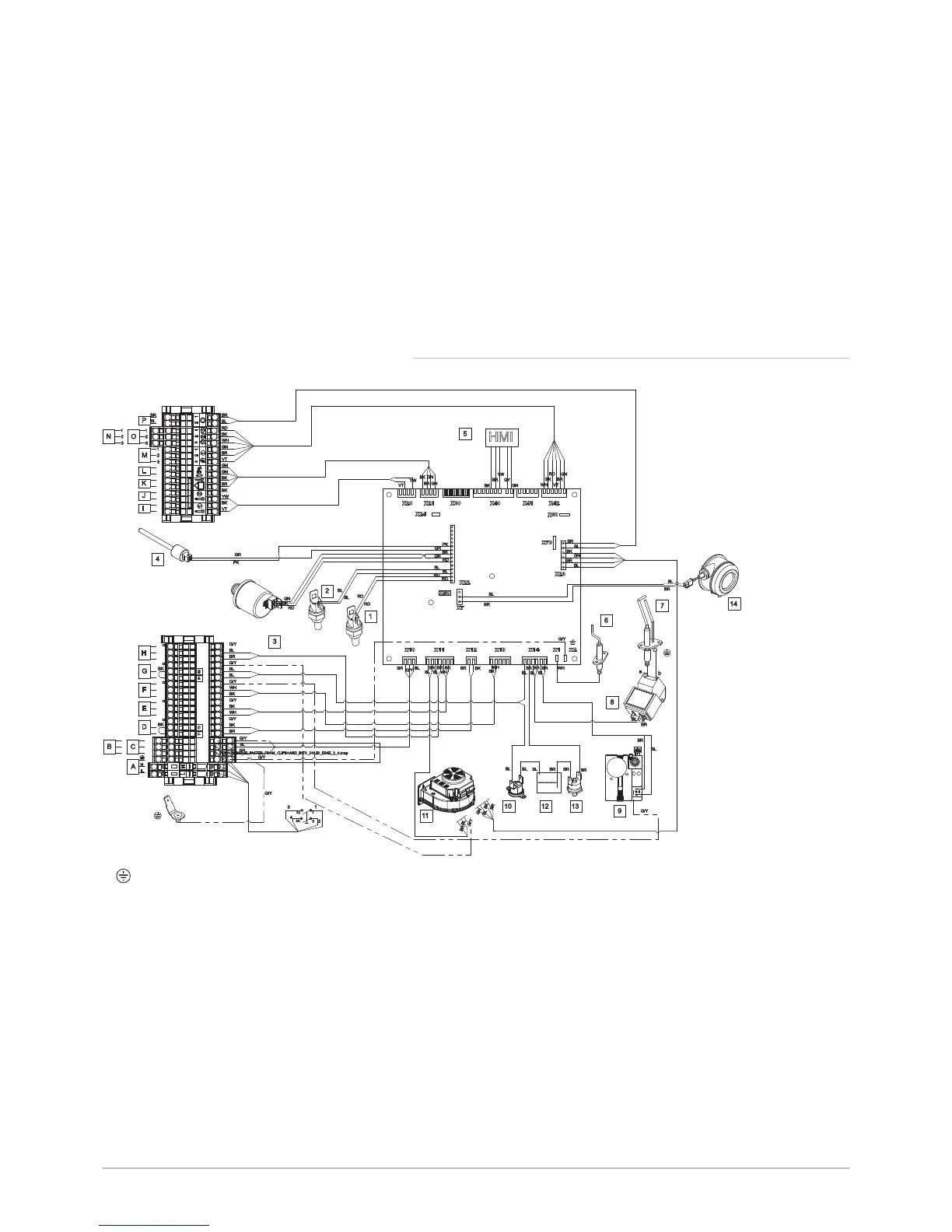

3.4.2 POWER HT+ 1.200 and POWER HT+ 1.250
Fig.5
MW-4000294-1
Earth POP rivet
A Power supply 230 V 50 Hz
B Power supply auxiliary circuit 1
C Power supply auxiliary circuit 2
D Room thermostat
E Heating circuit pump
F Domestic hot water pump
G Safety contact
H Boiler pump
I Auxiliary sensor 1
J Auxiliary sensor 2
K Outside sensor
L Domestic hot water sensor
M Room temperature sensor 1
N Room temperature sensor 2
O Room temperature sensor 3
P Boiler pump modulation (PWM)
1 Flow temperature sensor
2 Return temperature sensor
3 Hydraulic pressure sensor
4 Flue gas sensor
5 Control panel display
6 Ionisation probe
7 Spark plug
8 Igniter
9 Gas valve
10 Safety thermostat
11 Fan
12 Safety thermostat on the combustion chamber door
13 Safety thermostat on the combustion chamber door
14 Flue gas pressure switch
3 Technical specifications
18 POWER HT + 7702630 - v02 - 11082018

Baxi POWER HT+ Series Specifications

General

Model	POWER HT+ Series
Category	Boiler
Installation Type	Wall-mounted
Heat Exchanger Material	Stainless Steel
Warranty	2 years
Fuel Type	Natural Gas
Control System	Integrated Control
Ignition Type	Electronic
