Baxi POWER HT+ Series User Manual

6 Connecting diagrams

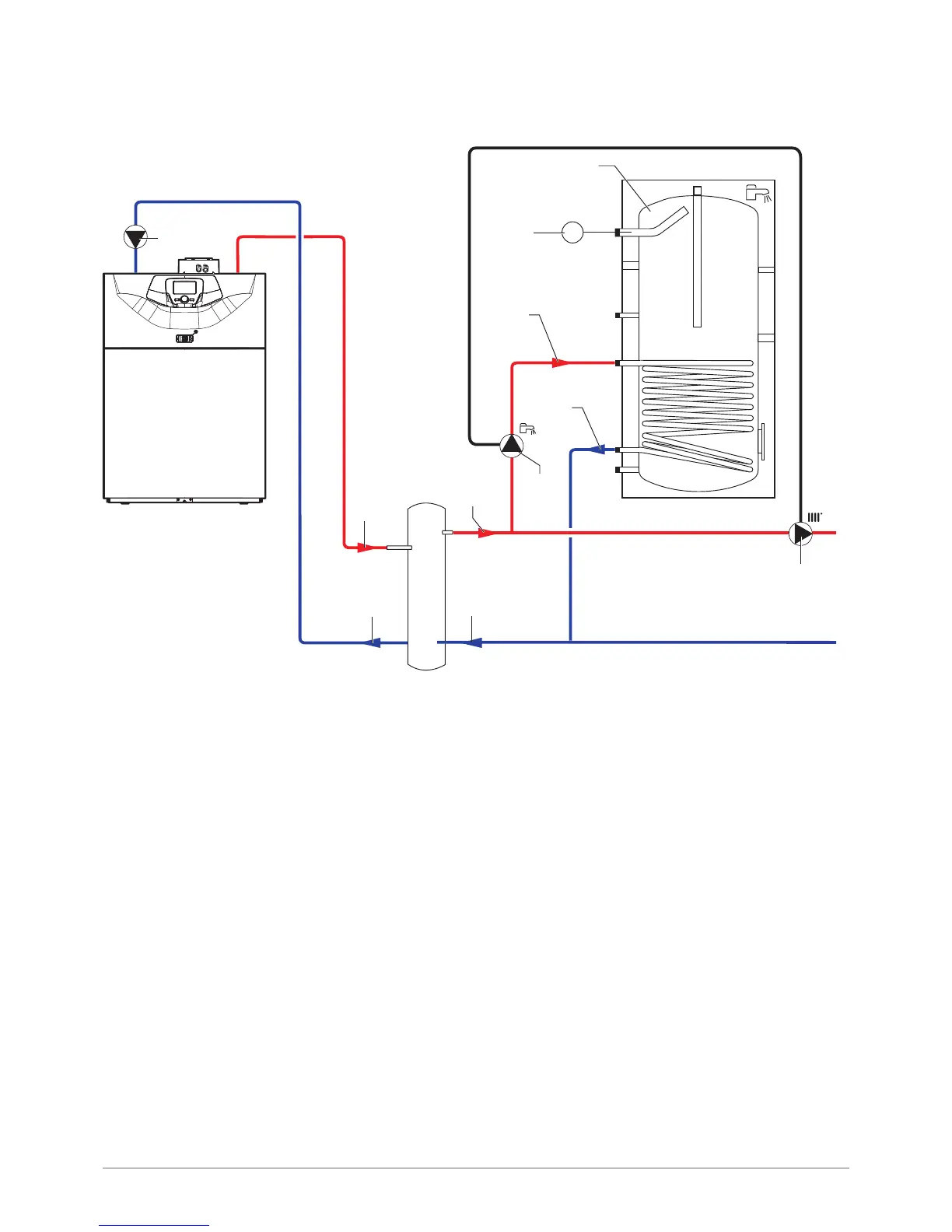

Fig.53 Connection example with a domestic hot water tank
MW-3000022-01
T
34
1a
119
2a
1
2
31
26
24
33
25
1 Boiler flow
2 Heating pump
24 Domestic hot water tank exchanger primary inlet
25 Domestic hot water tank exchanger primary outlet
26 DHW load pump
31 Independent domestic hot water tank
119 Boiler return
6 Connecting diagrams
7702630 - v02 - 11082018 POWER HT + 45

Baxi POWER HT+ Series Specifications

General

Model	POWER HT+ Series
Category	Boiler
Installation Type	Wall-mounted
Heat Exchanger Material	Stainless Steel
Warranty	2 years
Fuel Type	Natural Gas
Control System	Integrated Control
Ignition Type	Electronic
