Baxi POWER HT+ Series - Data Plate; Selecting the Position for the Outside Temperature Sensor (Optional)

Boiler model A B C D E
POWER HT+ 1.200 1100 500 750 500 1000
POWER HT+ 1.250 1100 500 750 500 1000

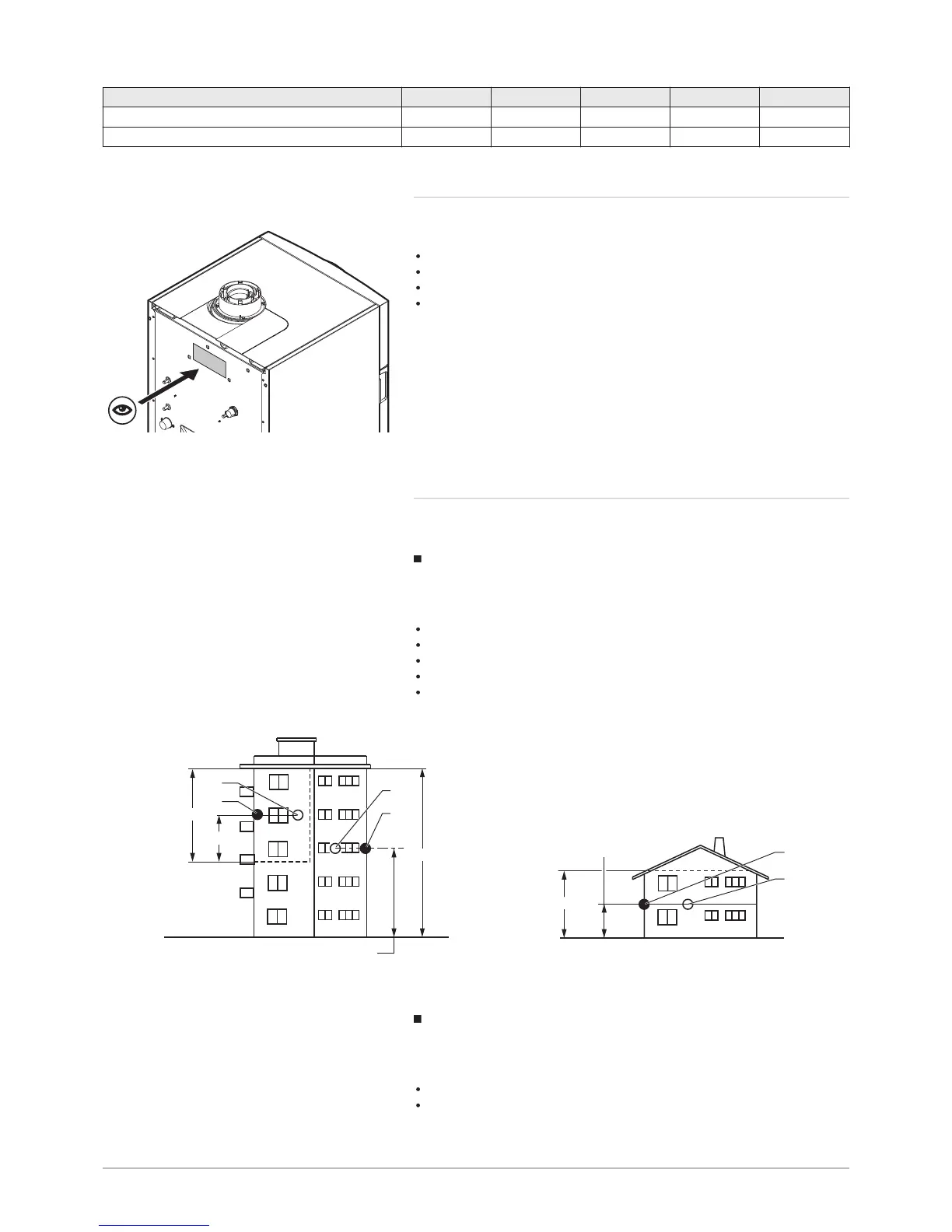

5.3.3 Data plate
The data plate is located on the back of the boiler. The data plate provides
important information regarding the appliance:
Serial number
Model
Gas category
etc.
5.3.4 Selecting the position for the outside temperature sensor
(optional)
It is important to select a position that allows the sensor to measure the
outside conditions correctly and effectively.
Recommended positions
Place the outside sensor in a position that covers the following
characteristics:
On a façade of the area to be heated, on the north if possible.
Half way up the wall of the area to be heated.
Under the influence of changes in the weather.
Protected from direct sunlight.
Easy to access.
Fig.25
MW-8800N001-3
2
1
2
1
1
2
H
1/2 H (min. 2,5 m)
1/2 H (min. 2,5 m)
1/2 Z
H
Z
1
Optimum location
2
Possible position
H
Inhabited height controlled by the sensor
Z
Inhabited area controlled by the sensor
Positions to be avoided
Avoid placing the outside sensor in a position with the following
characteristics:
Masked by part of the building (balcony, roof, etc.).
Close to a disruptive heat source (sun, chimney, ventilation grid, etc.).
Fig.24
MW-3000013
5 Before installation
7702630 - v02 - 11082018 POWER HT + 33
