Baxi POWER HT+ Series - Page 32

Important
Keep the boiler accessible at all times.

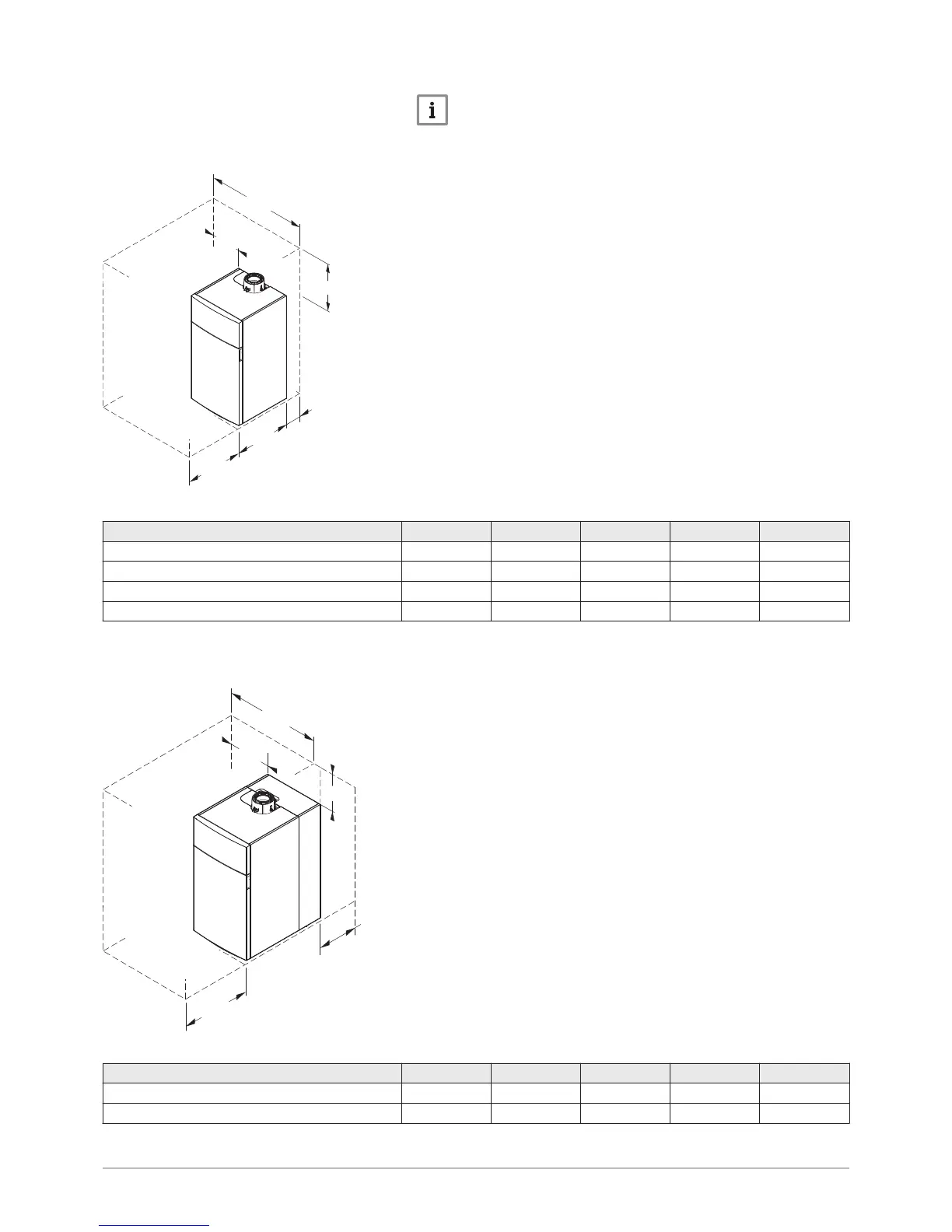

Clearance to be provided for the boilers
Tab.14
Boiler model A B C D E
POWER HT+ 1.130 1100 500 400 800 1000
POWER HT+ 1.150 1100 500 400 800 1000
POWER HT+ 1.200 1100 500 750 800 1000
POWER HT+ 1.250 1100 500 750 800 1000
Clearance to be provided for boilers equipped with a low-loss header kit,
plate heat exchanger kit, or cascade kit
Tab.15
Boiler model A B C D E
POWER HT+ 1.130 1100 500 400 500 1000
POWER HT+ 1.150 1100 500 400 500 1000
Fig.22
MW-4000216-02
E
C
A
D
B
Fig.23
MW-4000217-02
C
A
B
E
D
5 Before installation
