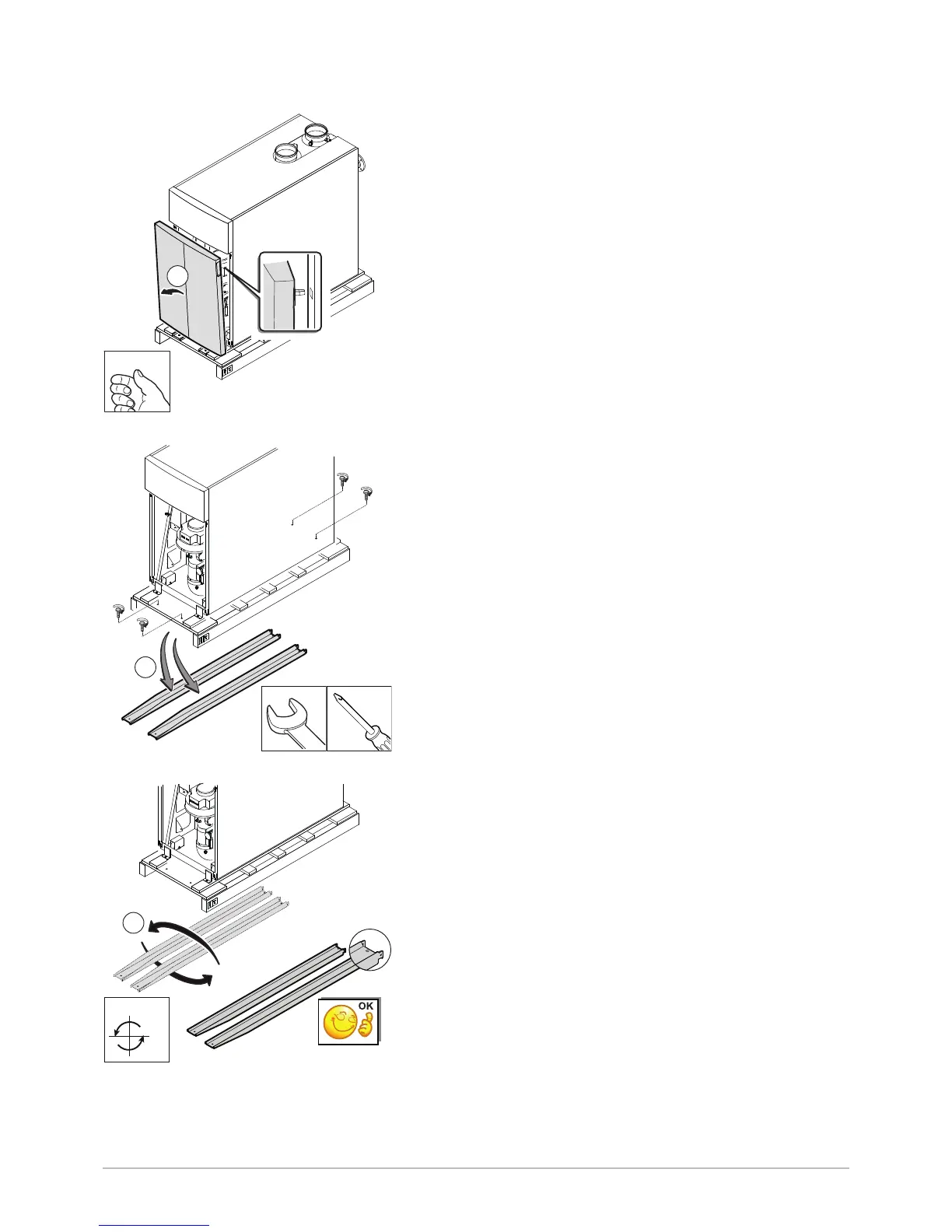

3. Remove the front panel by pulling firmly on the slots provided.
4. Remove the 2 unloading rails by unscrewing the 4 screws.
5. Rotate the 2 rails by 180°.
Fig.38
MW-2000766-2
3
Fig.39
MW-2000767-2
4
Fig.40
MW-2000768-1
5
180°
5 Before installation
38 POWER HT + 7702630 - v02 - 11082018
