Baxi POWER HT+ Series User Manual

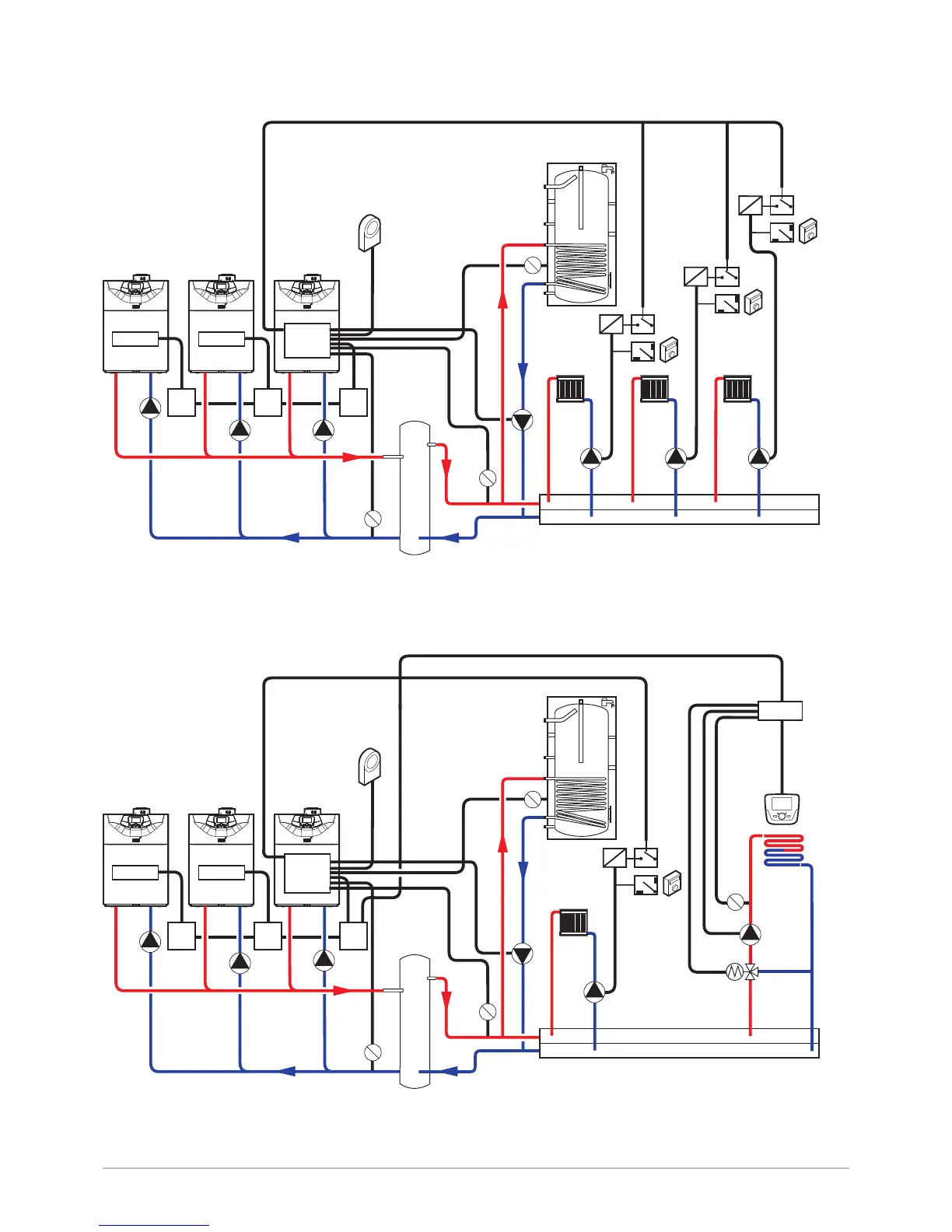

Fig.55 Connection example for boilers in cascade with domestic hot water tank and several heating circuits equipped with
room temperature thermostats
MW-1000024-03
OCI
345
OCI
345
OCI
345
OCI
345
OCI
345
OCI 345 Optional interface unit for boilers in cascade
Fig.56 Connection example for boilers in cascade with domestic hot water tank and several heating circuits equipped with
room temperature thermostats, including underfloor heating circuits
MW-1000025-03
OCI
345
OCI
345
OCI
345
OCI
345
OCI
345
RVS 46
OCI 345 Optional interface unit for boilers in cascade RVS 46 Connection option for underfloor heating
6 Connecting diagrams
7702630 - v02 - 11082018 POWER HT + 47
