POWER HT+ 1.130 and POWER HT+ 1.150
1. Remove the anti-dust plug located on heating return.
2. Connect the pipe to the heating return.
3. Remove the anti-dust plug on the heating flow.
4. Mount the filling and drain valves to the boiler's inlet and outlet (valves
not provided).
Important
To facilitate maintenance work, we recommend mounting a stop
valve on the heating flow and return pipes.
Caution
Position the safety valve between the boiler and the stop valve.
5. Fit the circulating pump on the heating return pipe (circulating pump
not provided).

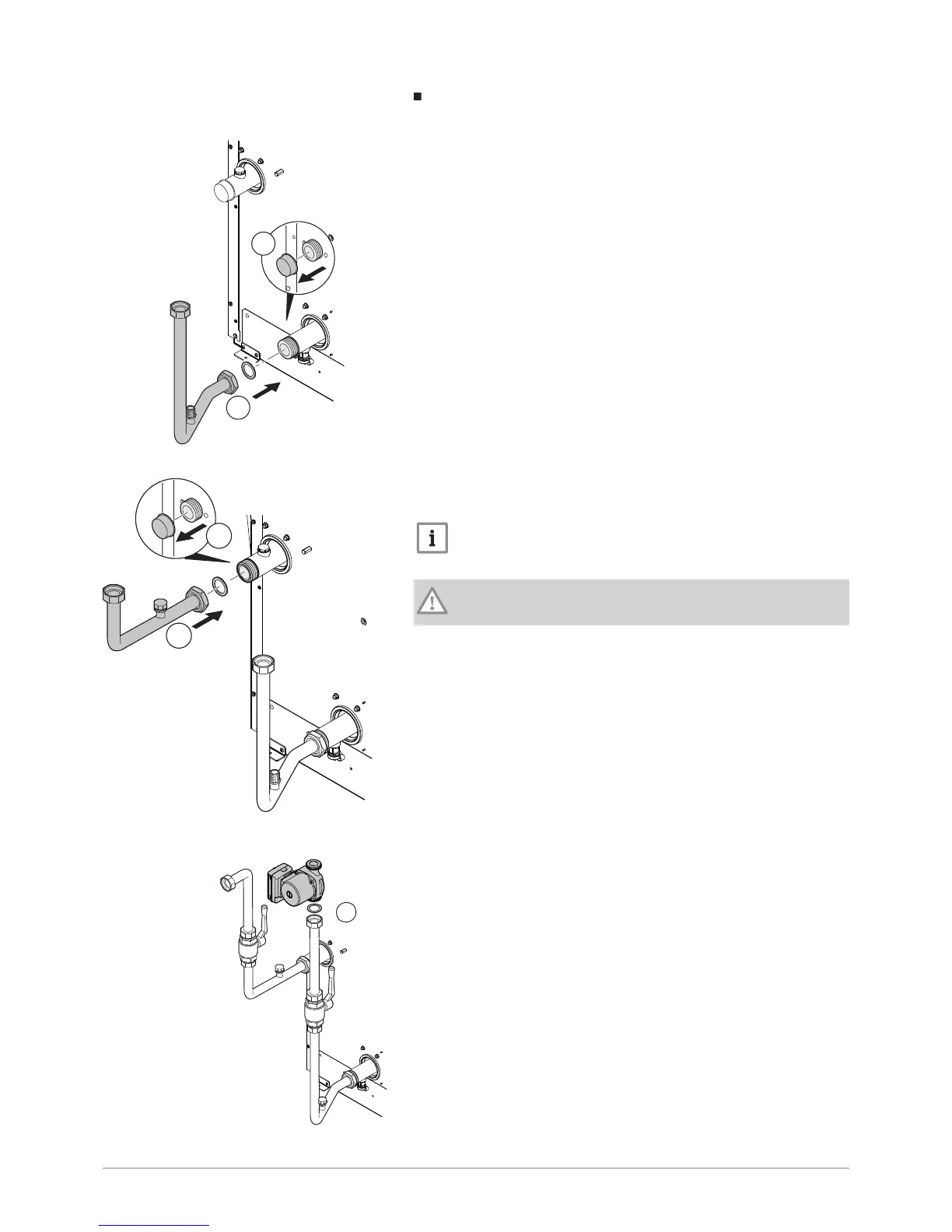

Fig.63
1
MW-4000266-1
2
Fig.64
4
3
MW-4000267-1
Fig.65
5
MW-4000268-1
7 Installation
7702630 - v02 - 11082018 POWER HT + 51
