D. Repeat procedure until diagonal
measurements are within 1/8" of each other.
NOTE: If shims are required to level the oven at the
front right corner, shims(s) will need to be placed on
top of threshold underneath the door jamb.
NOTE: If shims are required to level the oven at the
rear corners, place shim(s) in front of the back wheels.
If the rear of the oven is not accessible, place shims
under heat exchanger floor and inner wall base angle.
32. Install the door.
A. Open glass compartment door to remove
door handle and set aside.

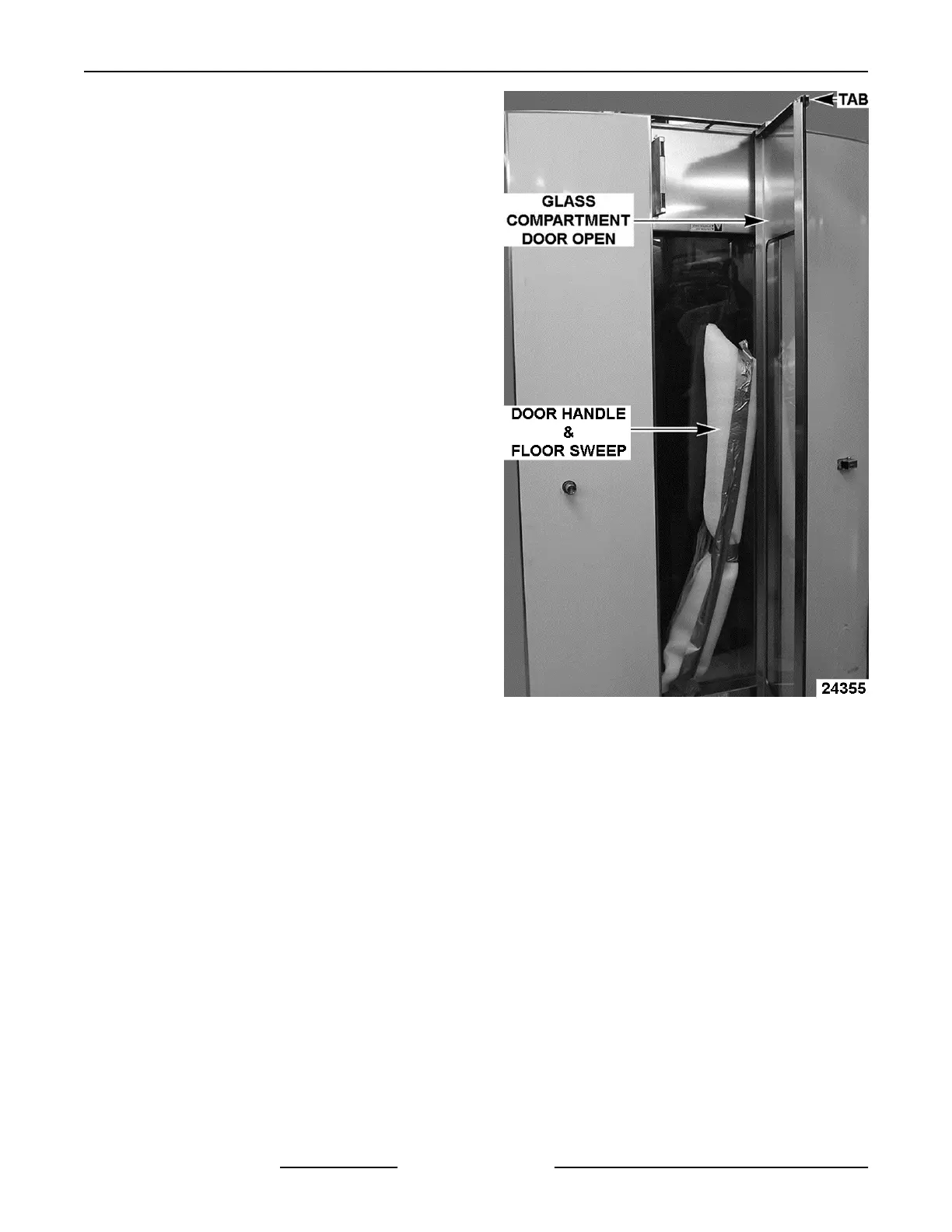

NOTE: Tab for opening to gain access to
compartment.
Fig. 45
B. Close glass compartment door.
NOTE: Do not allow glass compartment door to slam
shut.
C. Position the door at 90 degrees to the oven
near the door opening.
D. Use a J bar to lift the door close to the hinge
side of the door.
NOTE: Use care not to place J bar under black glass
door hinge pin or the door glass.
E. Position the door over the hinges and then
lower onto the hinge pins.
33. With the door open, visually check if door swings
towards oven (closed position) on its own.
A. If door swings towards oven, add shims to
back corners of oven until door stops
swinging on its own.
34. Remove bolts securing steam panel to oven.
INSTALLATION INSTRUCTIONS OV500-EE SERIES GAS RACK OVENS AND OV500 SERIES ELECTRIC RACK
OVENS - INSTALLING OVEN
F45469 Rev. D (1019) Page 26 of 49
