Fig. 40
28. Raise the back wheels to lower the oven. Weight
of oven should be completely off back wheels.
29. Remove the dolly wheel and replace lower latch
ramp.
NOTE: Retain the dolly wheel for future oven
installations.
30. Place threshold into door jamb.
NOTE: Do not anchor threshold at this time.

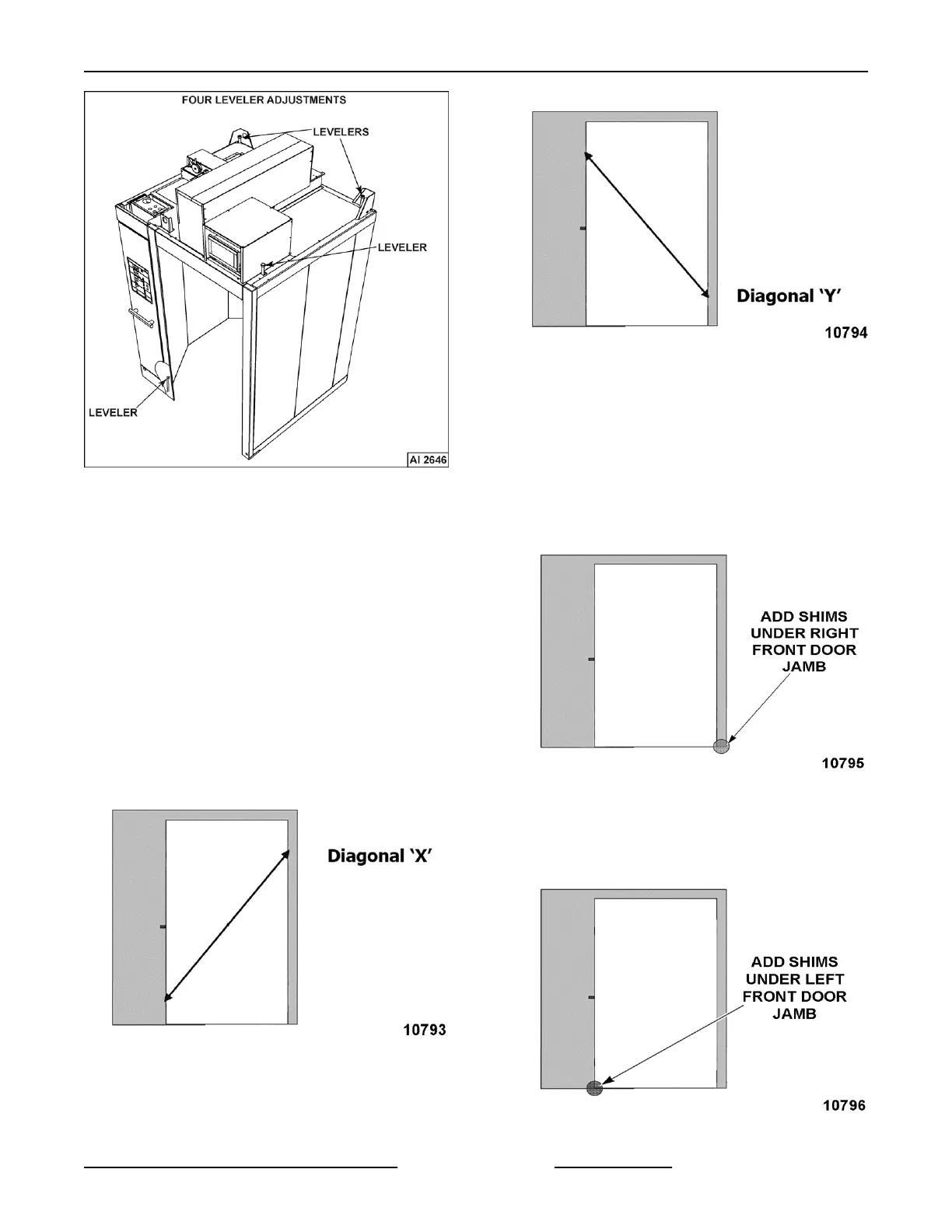

31. Verify door opening is square.
A. Measure diagonal 'X' from top right
innermost hinge screw to the bottom
innermost hinge screw on the left door jamb.
Fig. 41
B. Measure diagonal 'Y' from the top left
innermost hinge screw to the bottom
innermost hinge screw on the right door
jamb.
Fig. 42
C. If diagonal measurements are not within
1/8" of each other add additional shims as
needed.
1) If diagonal 'Y' measurement is greater
than diagonal 'X' measurement add
shims under the right front door jamb.
Place shims on top of threshold
underneath the door jamb.
Fig. 43
2) If diagonal 'X' measurement is greater
than diagonal 'Y' measurement add
shims under the left front door jamb.
INSTALLATION INSTRUCTIONS OV500-EE SERIES GAS RACK OVENS AND OV500 SERIES ELECTRIC RACK
OVENS - INSTALLING OVEN
Page 25 of 49 F45469 Rev. D (1019)
Fig. 44
