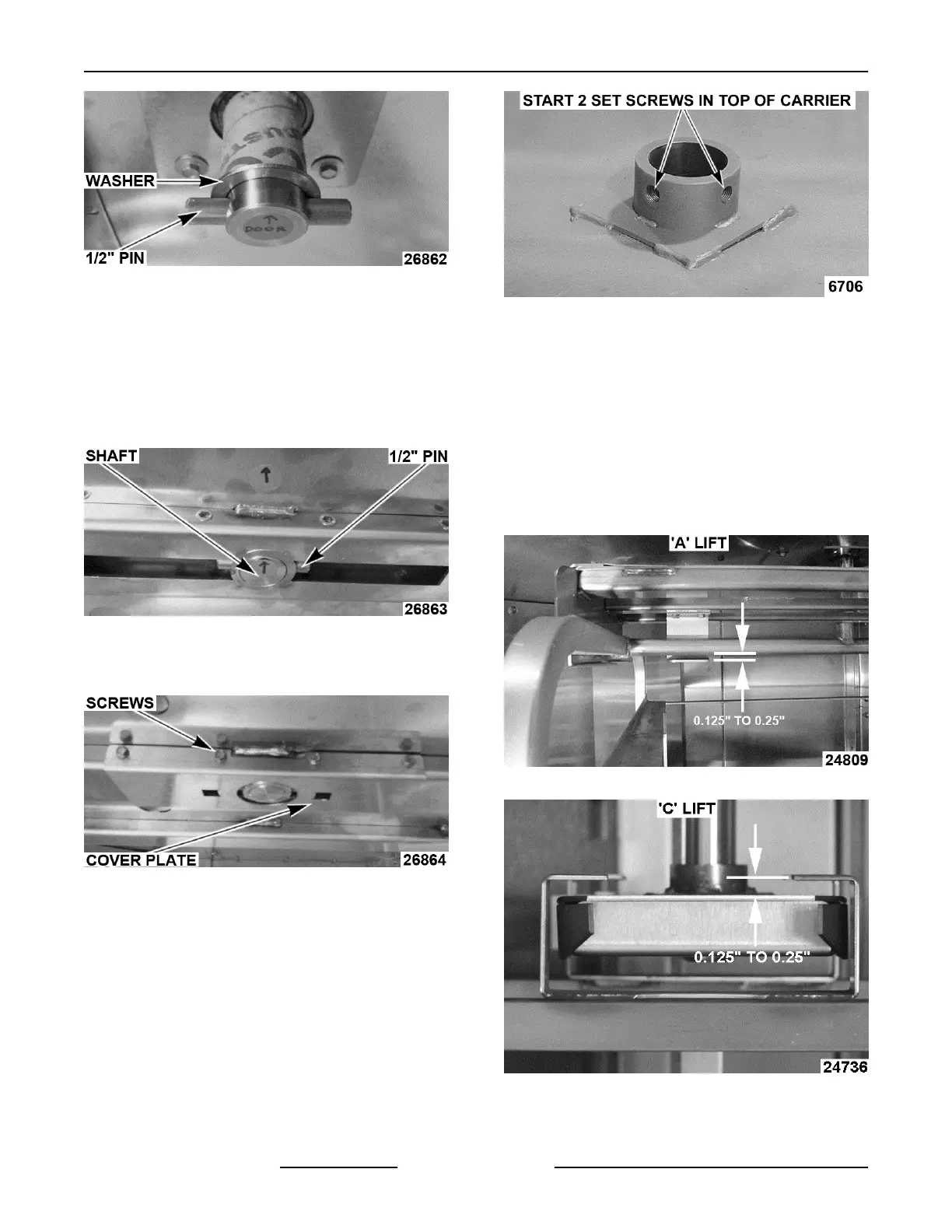

Fig. 85
Installing "A" Lift (1.25" shaft)
A. Position carrier on shaft with arrows on the
shaft and carrier aligned.
B. Insert ½” pin through holes in carrier hub
and shaft.
NOTE: Pin should be centered and fit snug in shaft.
Fig. 86
C. Install
cover plate to the bottom of the carrier
with screws provided.
Fig. 87
Installing "C" Lift (1.25" shaft)
A.
Install rack carrier.
B. Apply food grade Never Seize to set screw
threads on (C lift) and start the set screws
into the carrier.
Fig. 88
C. Slide the carrier onto the lift mechanism
shaft and install the snap ring.
NOTE: Do Not allow the lift mechanism shaft to move
upward. Hold shaft down from top of oven.
2. Roll baking rack onto carrier and check for proper
carrier height.
NOTE: Carrier should be approximately 0.125" to
0.25" from rack lifting channels. Check multiple baking
racks.
Fig. 89
Fig. 90
INSTALLATION INSTRUCTIONS OV500-EE SERIES GAS RACK OVENS AND OV500 SERIES ELECTRIC RACK
OVENS - INSTALLING OVEN
F45469 Rev. D (1019) Page 36 of 49
