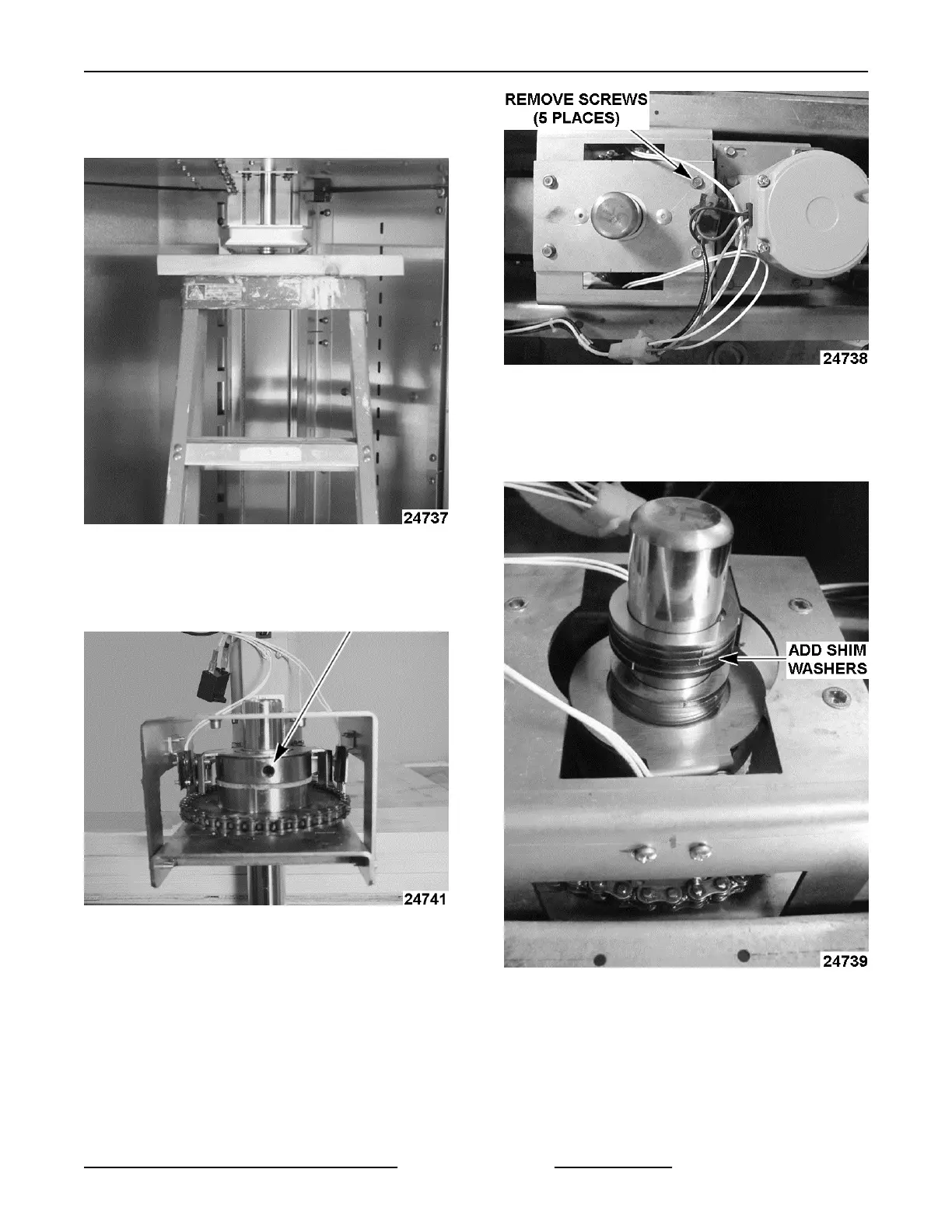

A. If carrier height needs adjusted, remove
baking
rack and support carrier with i.e. step
ladder and blocks of wood to correct height.
Fig. 91
B. Access rotate/lift assembly at top of oven.
C. Loosen rotate/lift shaft collar set screw 1/4
turn.
Fig. 92
D.
Remove screws securing Teflon bearing
bracket to rotate/lift assembly and lift from
assembly.
Fig. 93
E. Factory Installed shim washers 5 above & 5
below retaining ring. Position shim washers
above or below the retaining ring for correct
carrier height.
Fig. 94
F.
If carrier needs to be lower than snap ring
will allow, access clevis pins on rear of lift
and lower both equally.
NOTE: Always lower left and right clevis pins the
same distance. One hole location equals 1/4"
adjustment.
INSTALLATION INSTRUCTIONS OV500-EE SERIES GAS RACK OVENS AND OV500 SERIES ELECTRIC RACK
OVENS - INSTALLING OVEN
Page 37 of 49 F45469 Rev. D (1019)
