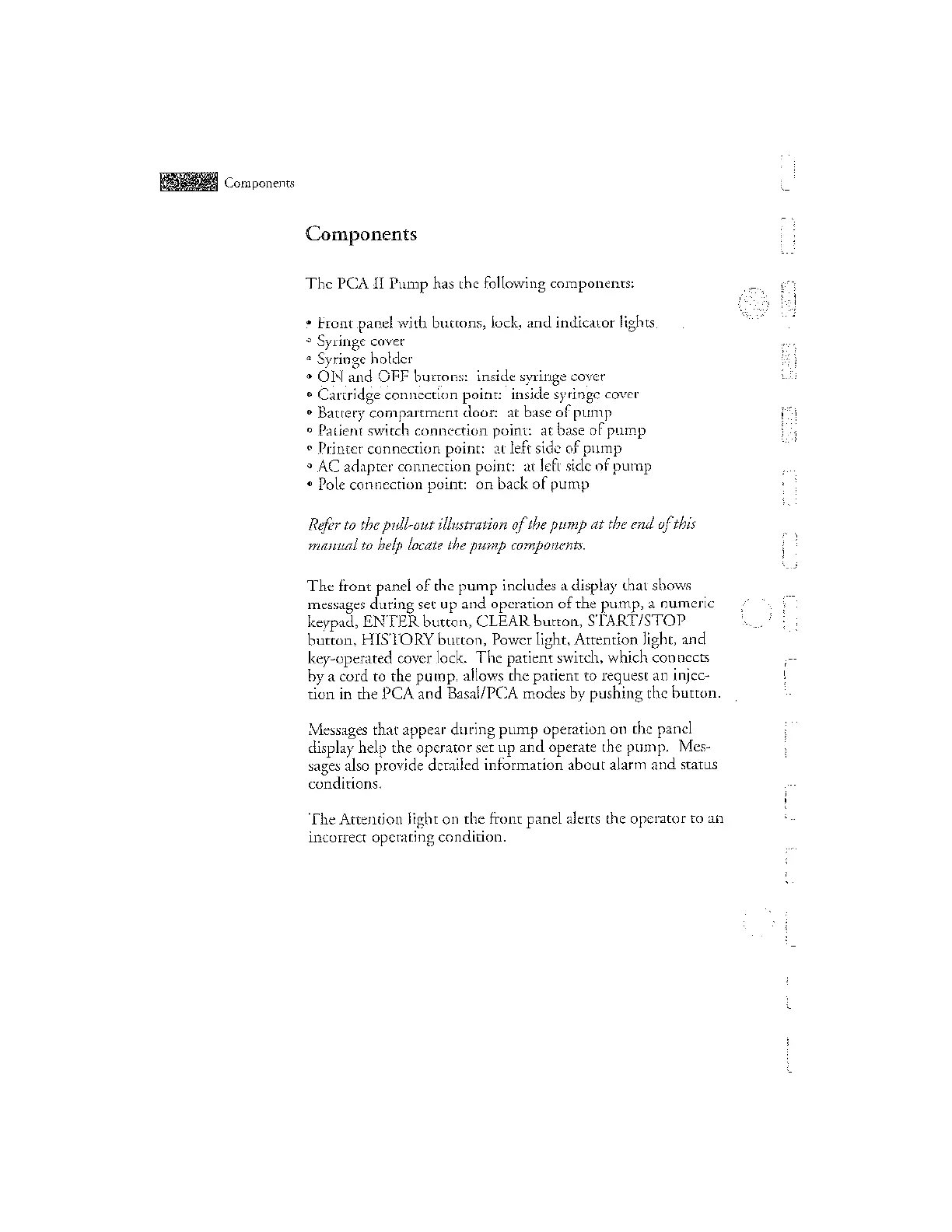

Components
Components
The
PCA
If
Pump
has
che
following
components:
*
Front panel
with
buccons,
lock,
and
indicator
lights
=
Syringe
cover
*
Syringe
holder
*
ON
and
OFF
burtons:
inside
syringe
cover
e
Cartridge
connection
point:
inside
syringe
cover
+
Battery
compartment
door:
at
base
of
pump
©
Patient
switch
connection
point:
at
base
of
pump
*
Printer
connection
point:
at
left
side
of
pump
>
AC
adapter
connection
point:
at
left
side
of
pump
*
Pole
connection
point:
on
back
of
pump
Refer
to
the
pull-our
illustration
of
the
pump
at
the
end
of
this
manual
to
help
locate
the
pump
components.
The
front
panel
of
the
pump
includes
a
display
chat
shows
messages
during
set
up
and
operation
of
the
pump,
a
numeric
keypad,
ENTER
button,
CLEAR
button,
START/STOP
burton,
HISTORY
button,
Power
light,
Attention
light,
and
key-operated
cover
lock.
The
patient
switch,
which
connects
by
a
cord
to
the
pump,
allows
the
patient
to
request
an
injec-
tion
in
the
PCA
and
Basal/PCA
modes
by
pushing
the
button.
Messages
that
appear
during
pump
operation
on
the
panel
display
help
the
operator
set
up
and
operate
the
pump.
Mes-
sages
also
provide
derailed
information
about
alarm
and
status
conditions.
‘The
Attention
light
on
the
front
panel
alerts
the
operator
ro
an
incorrect
operating
condition.
