baxter PCA II User Manual

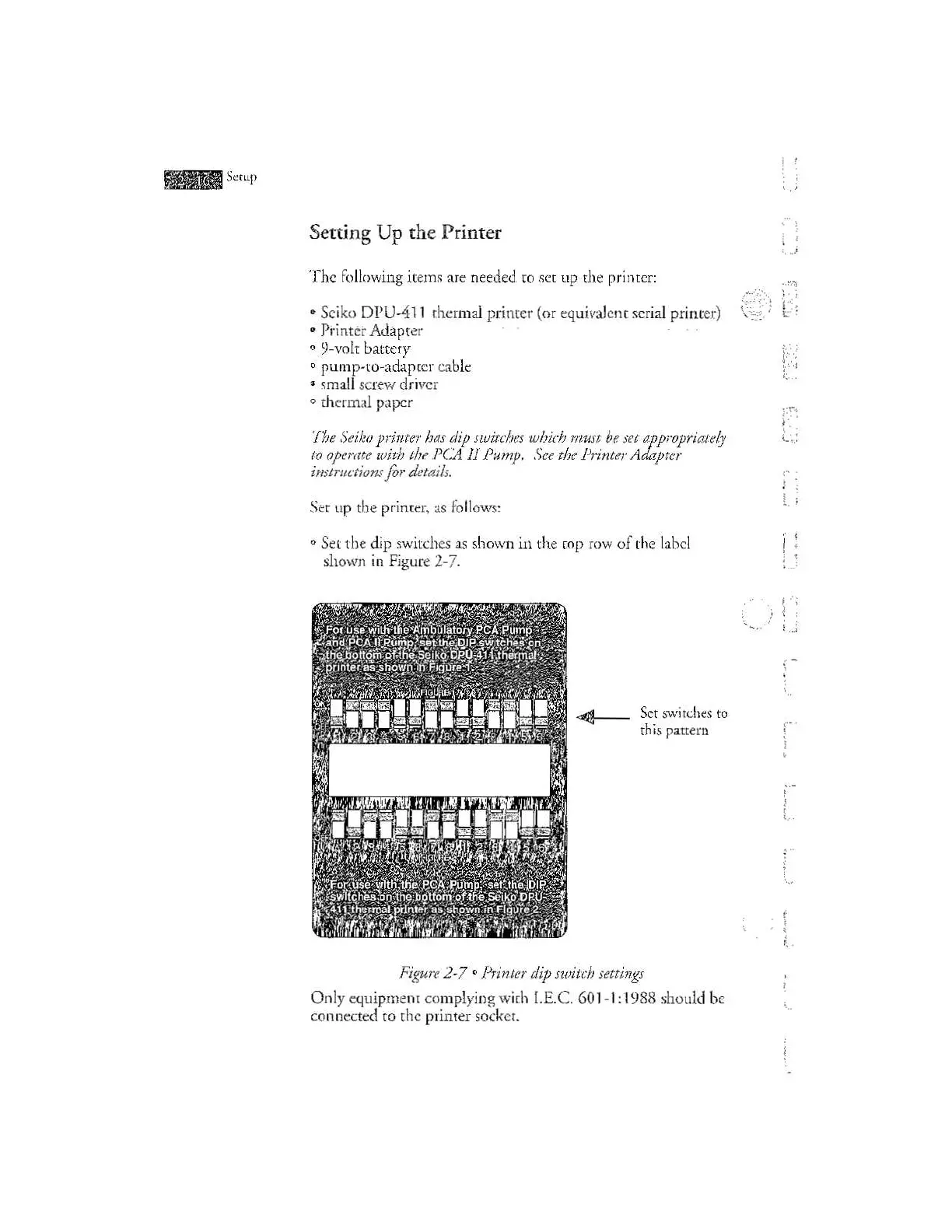

Setting Up the Printer
The following items are needed to set up the printer:
* Seiko DPU-411 thermal printer (or equivalent serial printer)
e Printer Adapter
* 9-voli battery
° pump-to-adapeer cable
= small screw driver
= thermal paper
inter has dip switches which must be set appropriately
the PCA H Pump. See the Printer Adapter
instructions for details.
Ser up the printer, as follows:
® Set the dip switches as shown in the cop row of the label
shown in Figure 2-7.
Set switches to
this pattern
Figure 2-7 © Printer dip switch settings
Only equipment complying wich LE.C. 601-1:1988 should be
connected to the printer socket.
