baxter PCA II - Installing a Cartridge

Setup

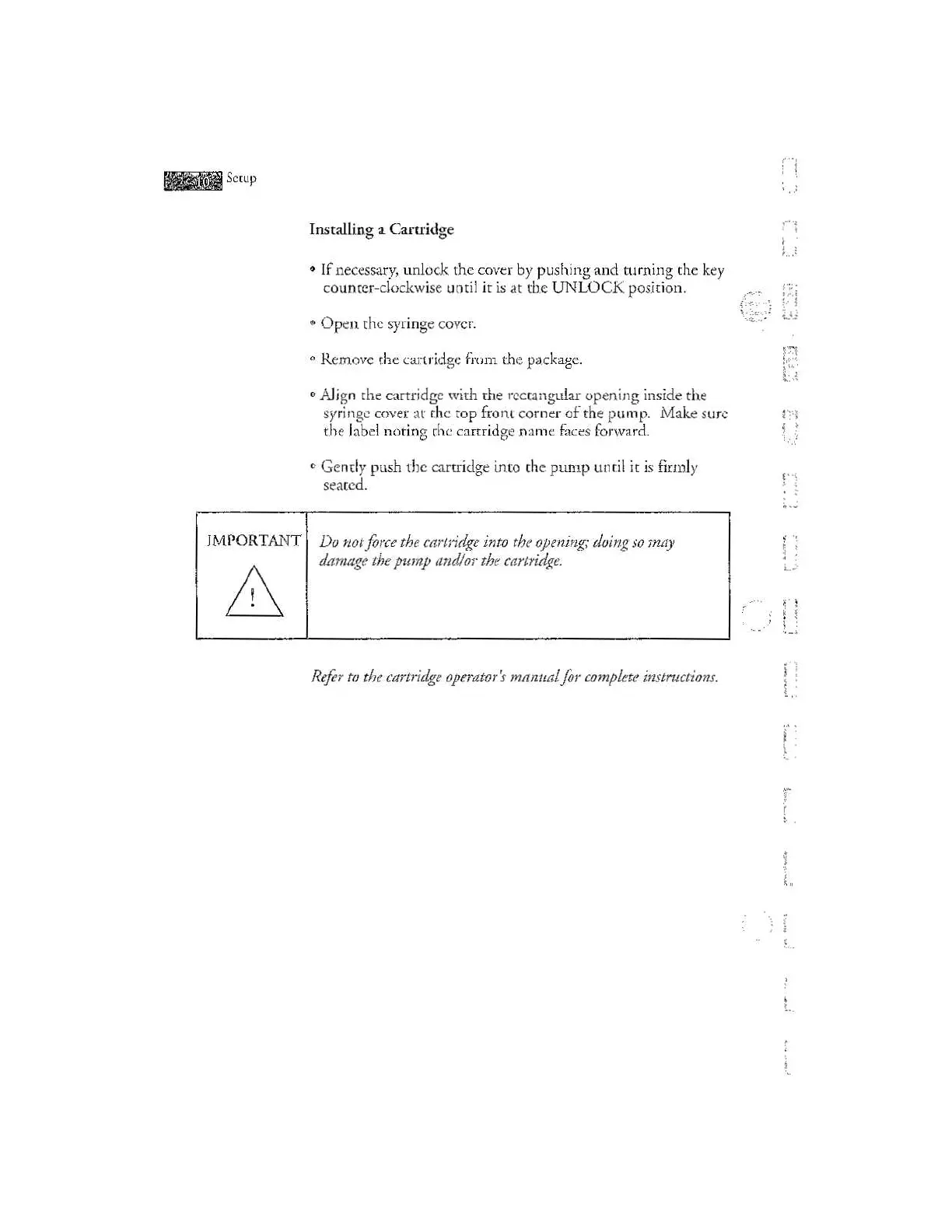

Installing a Cartridge
* If necessary, unlock the cover by pushing and turning che key
counter-clockwise until it is at the UNLOCK position.
* Open the syringe cover.
y
i
« Remove the cartridge fram the package.
> Align the cartridge with the rectangular opening inside the
syringe cover at the top front corner of the pump. Make sure
the label noting che cartridge name faces forward. |
e Gendy push the cartridge into the pump until it is firmly
seated.
IMPORTANT | Do not force the cartridge into the opening; doing so may
damage the pump andlor the cartridge.
Refer to the cartridge operator's manual for complete instructions.
