Serup

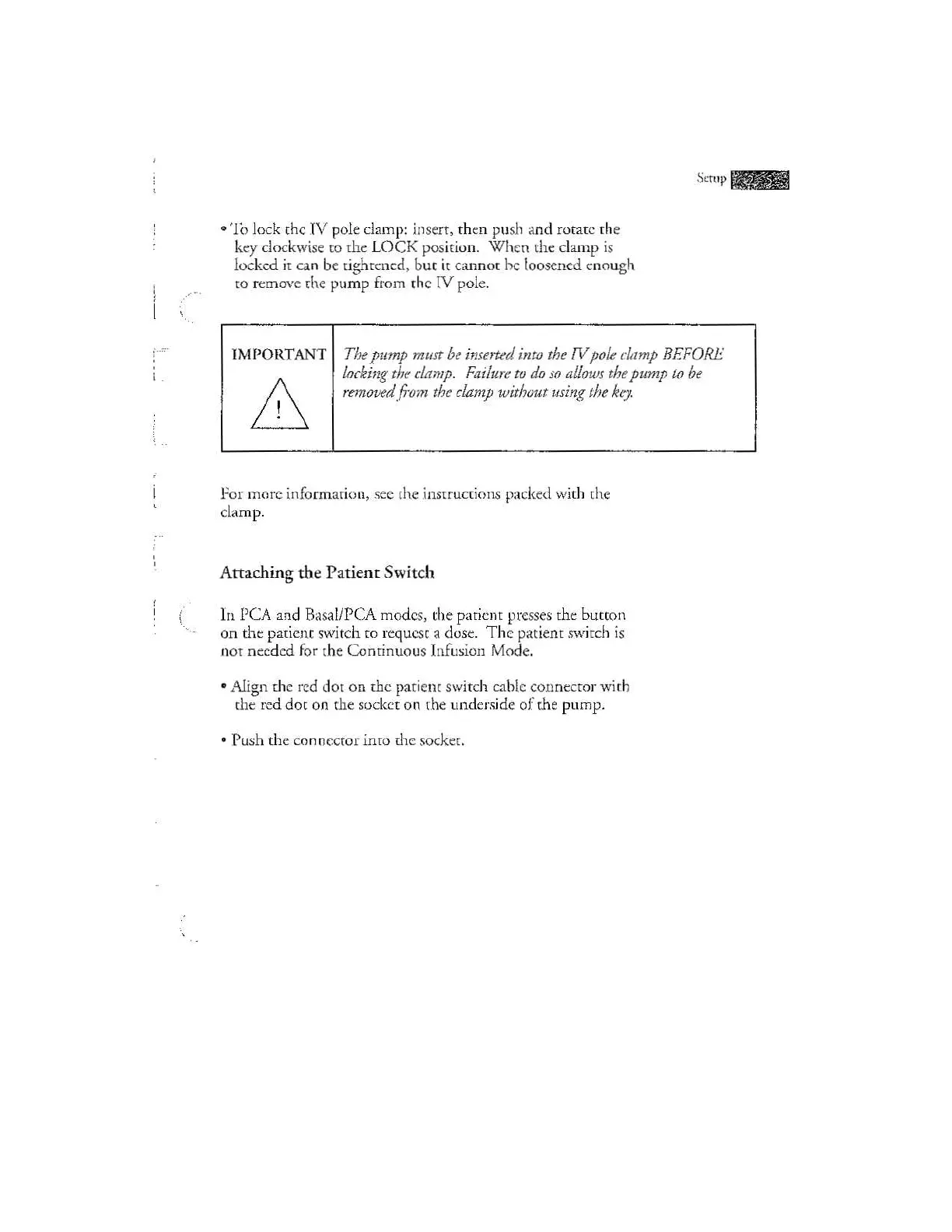

+ То lock che IV pole clamp: insert, then push and rotate the
key clockwise to the LOCK position. When the clamp is
locked it can be tightened, buc it cannot be loosened enough
to remove the pump from the IV pele.
IMPORTANT | The pump must be inserted into the IV pole clamp BEFORE
locking the clamp. Failure to do so allows the pump to be
| ' removed from the clamp without using the key.
For more information, see che instructions packed with the
clamp.
Attaching the Patient Switch
In PCA and Basal/PCA modes, the patient presses the button
on the patient switch to request a dose. The patient switch is
not necded for the Continuous Infusion Mode.
* Align the red dot on the patient switch cable connector with
the red dot on the socket on the underside of the pump.
* Push the connector into the socket.
