BA series pumps
1401 Receiving, transport and storage
4.3
4.4 Lifting instructions for pump unit
DANGER
Never walk under a raised load. This can result in a life-threatening situation.

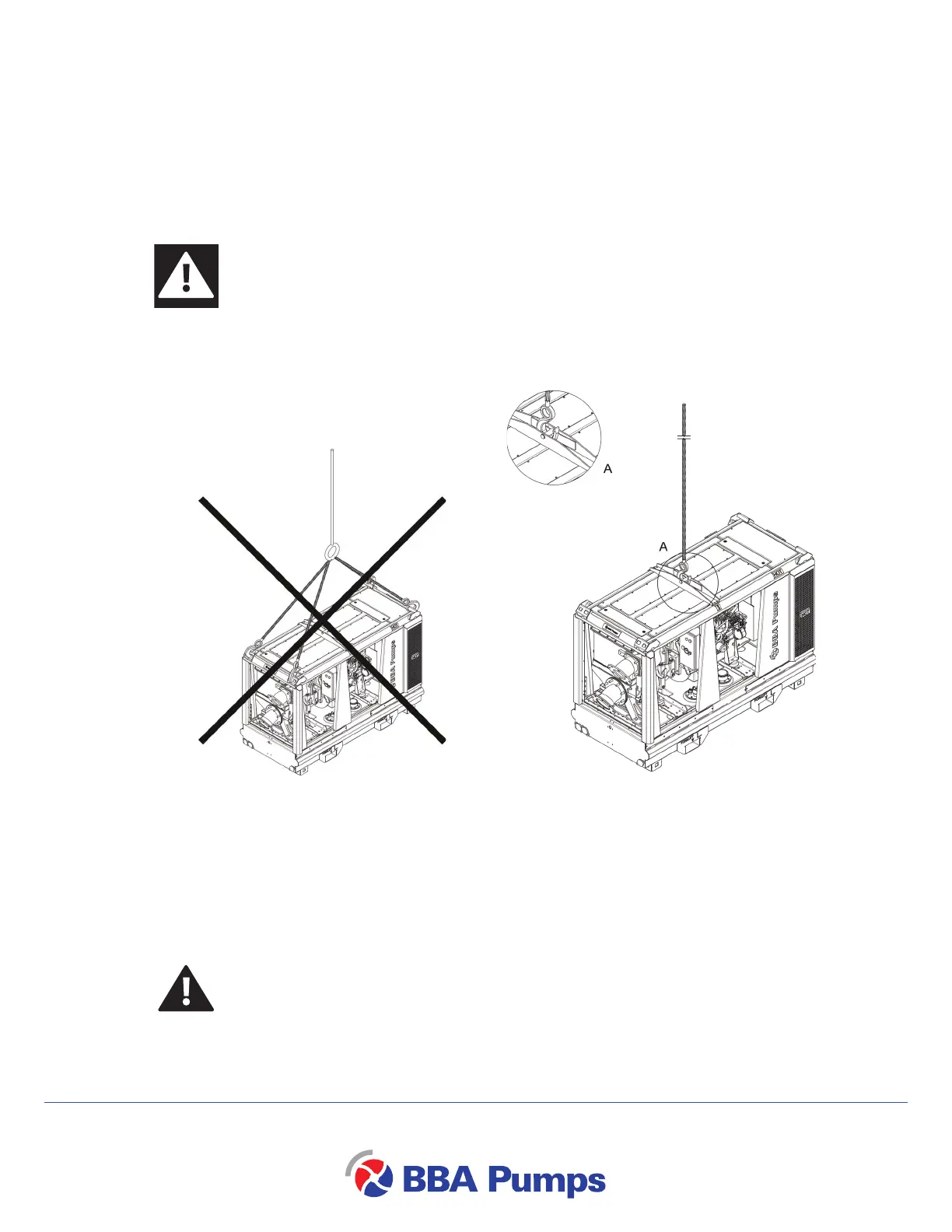

Pump unit in enclosure
There is a lifting eye located on the top of the enclosure.
Only lift the unit from this lifting eye
.
Pump unit on frame
– Attach lifting eyes to the corners of the frame.
– Connect a lifting beam with lifting straps to the lifting eyes.
– Raise the pump carefully until it is just above the floor. Check whether the pump is hanging
horizontally.
WARNING
Neither the lifting eye on the engine nor the lifting eye of the pump may be used for
transport of the pump or pump unit.
