BBA Pumps BA Series User Manual

BA series pumps
Pump unit with diesel drive 1401
8.2

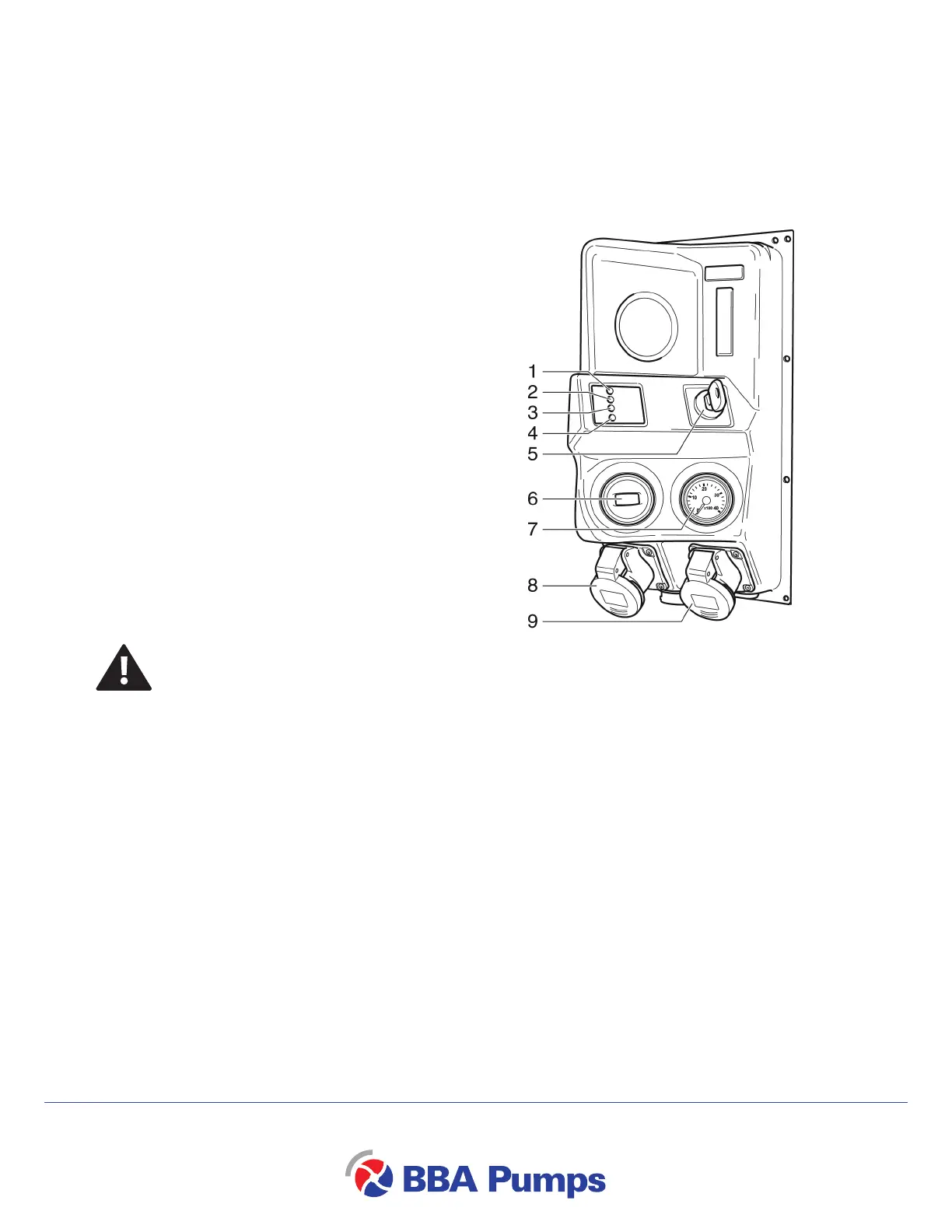

8.3 Control panel
The pump unit is equipped with an LC20 control panel.
1. Auto standby LED (green)
2. Glow plug LED (yellow)
3. Oil pressure LED (red)
4. Temperature LED (yellow)
5. Selection switch
6. Hour counter
7. RPM meter
8. Float switch connection ‘low liquid level’
9. Float switch connection ‘high liquid level’
– If the Auto standby LED (green) is on, the key switch is in
the auto-start position and the system can be started.
– If the glow plug LED (yellow) is on, the system is being
preheated. When the LED goes out the engine can be
started.
WARNING
Maintenance on the electrical system may only be performed after the power supply
has been disconnected.
These activities may only be performed by personnel with the appropriate training
and authorisation.
– The hour counter indicates how long the pump has been in service. This hour reading is also
important for determining when the pump unit requires maintenance.
