BA series pumps
Receiving, transport and storag
e
1401
4
.4
4.5

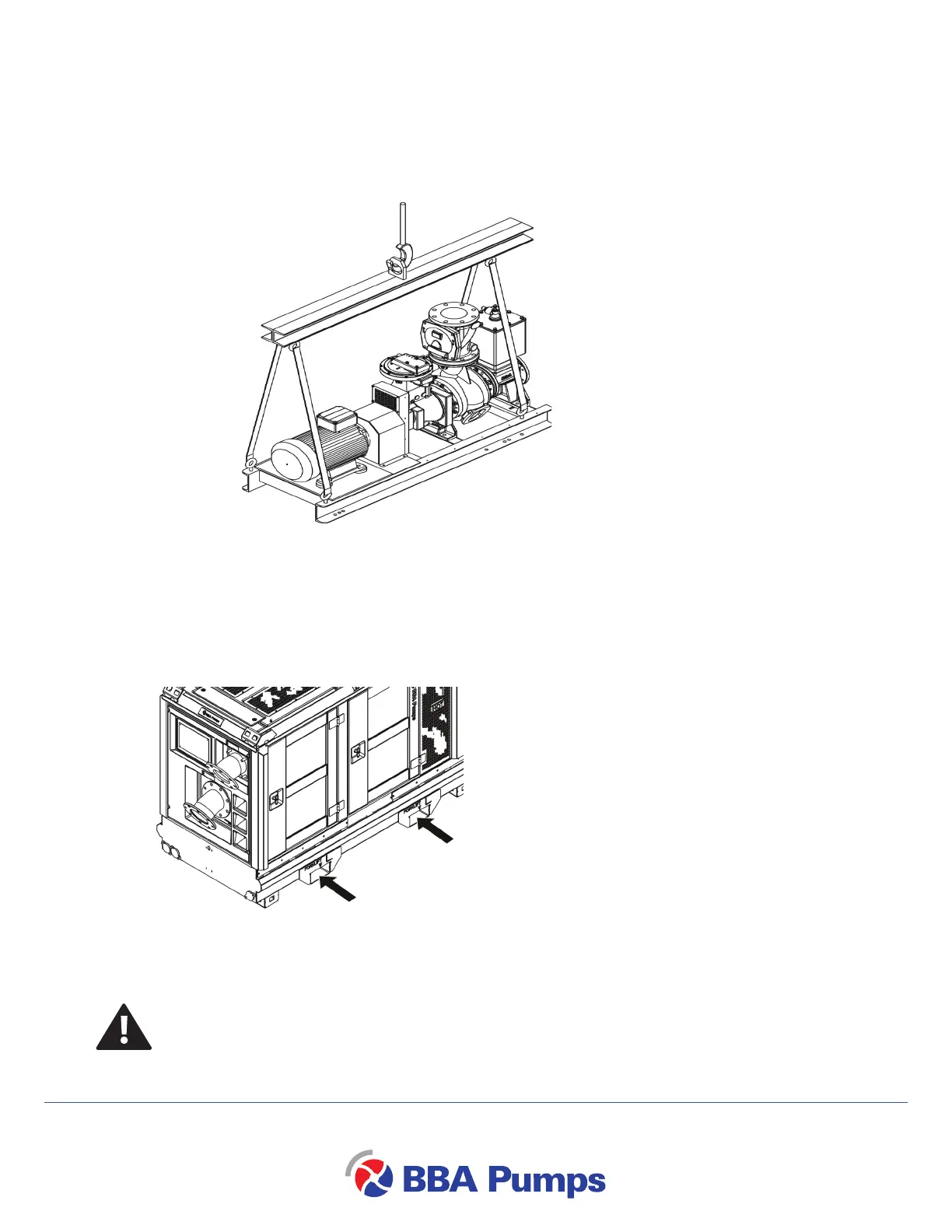

Moving the pump unit with a forklift
Forklift po
ckets (
if present) can be use
d for moving the pump unit with a forklift.
The forks of the forklift must be insert
ed into these pockets
to lift the pump unit.
It is not permitted to mov
e the pump
unit with a
forklif
t if no forklift pocket
s are provided in the bottom of
the frame.
WA
R
N
I
N
G
Always disconnect all connectio
ns before moving the pump unit.
24
26
Table of Contents
Table of Contents
3
Description, Application and Working Principle
10
Construction and Working Principle of the Pump
10
Intended Use
12
Unintended Use
13
Warranty
13
Data
14
Specification Sheets
14
Explanation of Type Code
14
Sound Level
15
Applied Directives and Standards
17
Warnings and Safety Instructions
18
Warning and Safety Symbols
18
Safety Instructions - General
18
Safety Instructions - Pump
19
Safety Instructions - Electrically Driven Pump Unit
19
Safety Instructions - Diesel Engine Driven Pump Unit
20
Safety Instructions - During Maintenance and Repair
20
Training and Knowledge Level of Personnel
21
Environmental Protection
21
Designations on the Pump or Pump Unit
21
Receiving, Transport and Storage
22
Transport
22
Lifting Instructions for Pump Only
23
Lifting Instructions for Pump Unit
24
Moving the Pump Unit with a Forklift
25
Storage/Preservation 6-12 Months
26
Storage Longer than 6-12 Months
27
Inspection During Storage
27
Transport of Pump with Preservation Agent
27
4.10 Removal of Preservation Agent
28
Pump Unit Installation
29
Placement - General
29
Outdoor Use
32
Indoor Use
32
Placement in an Area with a Potentially Flammable or Explosive Atmosphere
32
Piping Guidelines - General
33
Suction Pipe
34
Pressure Pipe
42
Suction Strainer
43
Pump - General
44
Preparation for Starting the Pump or Pump Unit
44
Preparations for Starting
45
Starting
45
Monitoring During Operation
46
Stopping
47
Draining the Pump When There Is a Danger of Freezing
48
Pump Unit with Electric Drive
49
Safety Instructions
49
Connection - General
49
Electrical Connection
50
Control Panel
50
Safeguards
52
Electric Motors
53
Commissioning
54
Checking the Direction of Rotation
54
Starting
55
7.10 Stopping
55
Pump Unit with Diesel Drive
56
Safety Instructions
56
Connection - General
56
Control Panel
57
Control Panel for Electronically Regulated Engine
59
Connection of Auxiliary Fuel Supply (Optional)
61
Starting
63
Stopping
65
Diesel Drive Engine Unit - Hatz
65
Diesel Drive Engine Unit - Perkins
80
Maintenance
98
General
98
Safety Instructions During Maintenance, Repair and Inspection
98
Protecting Electrically Driven Pump Unit against Unintended Activation
99
Protecting Diesel Engine Driven Pump Unit against Unintended Activation
99
Maintenance Instructions
99
Daily Maintenance of the Pump
99
Other Pump Maintenance
100
Maintenance Activities - Pump
101
Shipping the Pump or Pump Unit
107
9.10 Draining the Pump
107
9.11 Internal Cleaning of the Pump
109
9.12 External Cleaning of the Pump or Pump Unit
109
Troubleshooting Tables
110
Troubleshooting Table - Pump (General)
110
10.2 Troubleshooting Table - Electric Drive
113
10.3 Troubleshooting Table - Diesel Engine Drive
114
Disposal
115
