BBH SMX 12-2 - 5.11.3.4 Connection of a SIN;COS encoder

Installation manual
HB-37350-810-01-51F-EN SMX Installation manual.docx Page 166 of 234
Version: 50F

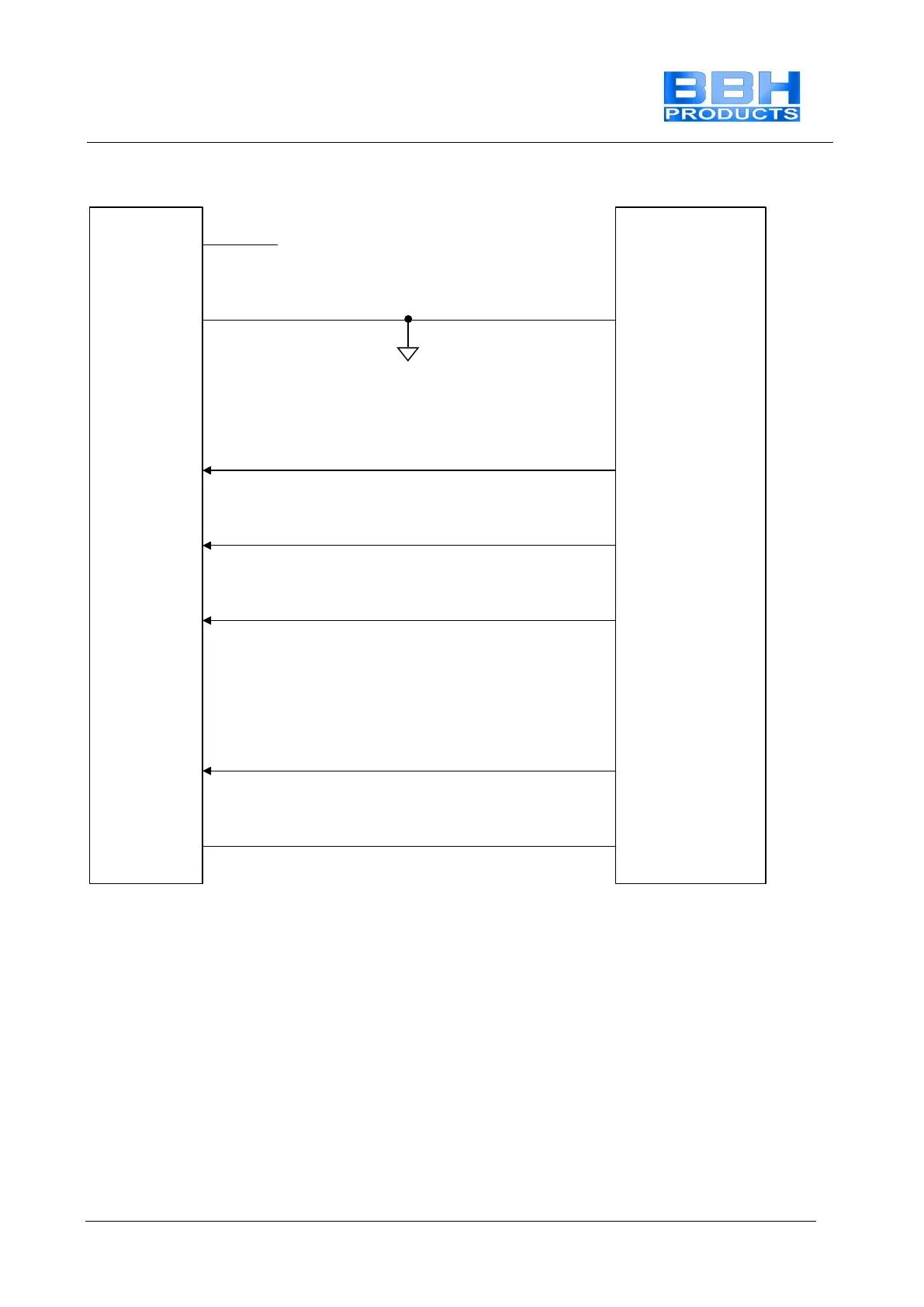

5.11.3.4 Connection of a SIN/COS encoder
Sub-D-
Stecker
(9 polig)
SMX
SIN/COS
Geber
n.c.
Ground
n.c.
COS-
SIN+
SIN-
n.c.
COS+
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
Versorgungsspannung
Pins 1, 3 and 7 stay open and are reserved for later expansions.
GND of the supply voltage
24 V DC
Sub-D plug
(9 pin) SMX
SIN/COS
encoder
Supply voltage
