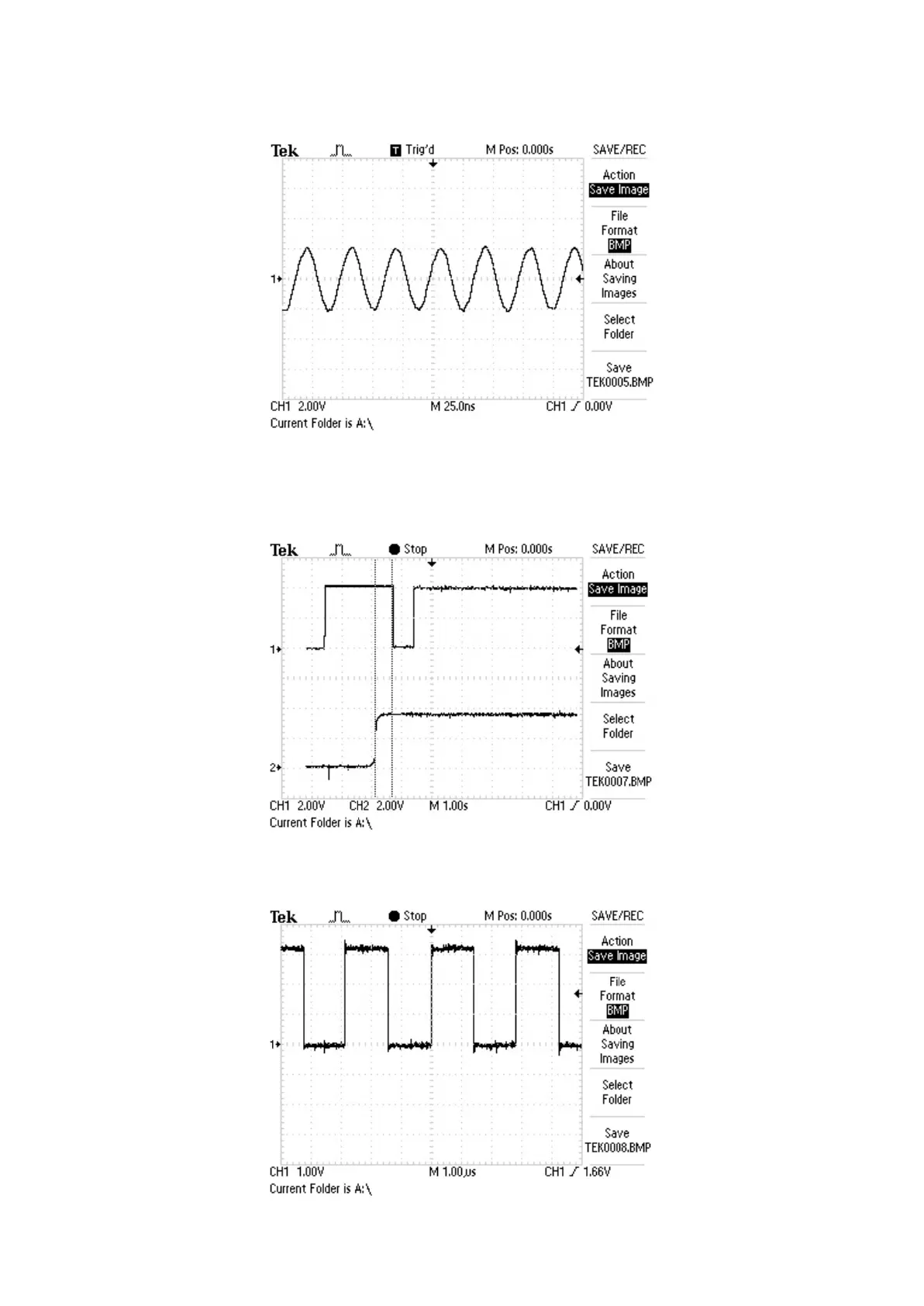

3. 1389 main clock signal waveform diagram
4. Contrast figure of TAS5508 reset signal RST and main reset signal URST#, USRT# means
the time required to finish reset is 600ms, RST means reset begins and time is 680ms
5. Waveform of PWM signal outputted by TAS5508 when playing: f=352.78KHZ
